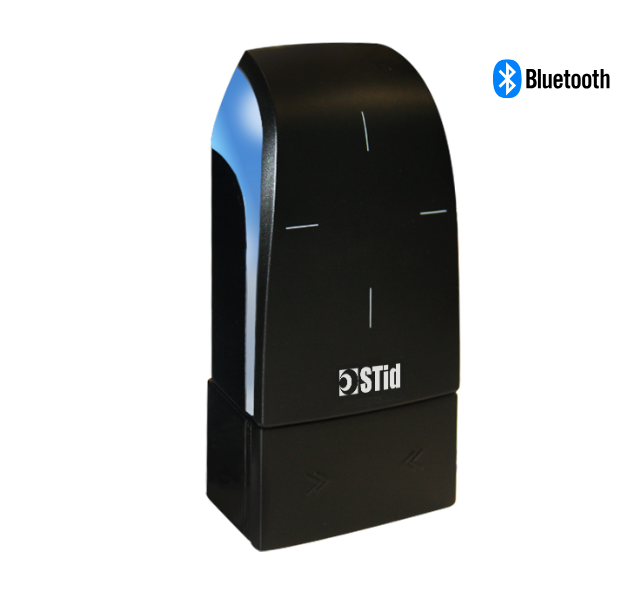

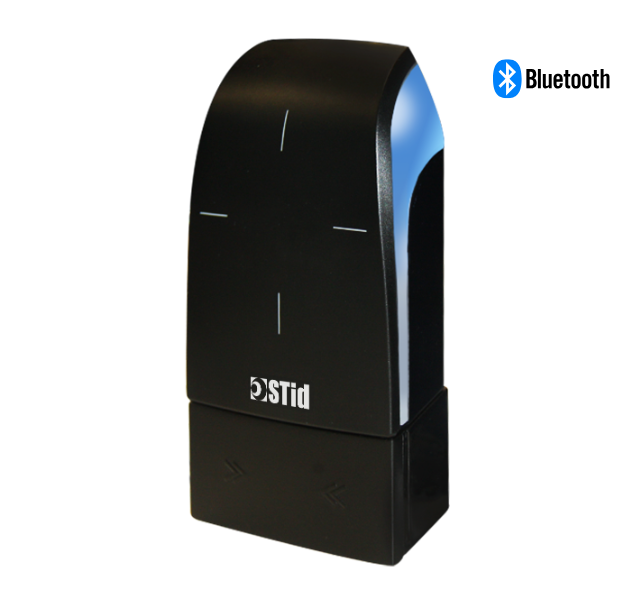

STid Architect® Blue Hybrid

Intuitive Identification, Better User Experience
The reader supports STid Mobile ID® user-friendly solution and offers six unique user interaction modes for intuitive contactless identification:
• Card mode: present your smartphone or wearable to the reader like a conventional access card.
• Slide mode: your hand becomes your access card.
• Tap Tap mode: tap tap the smartphone in your pocket to gain access.
• Remote mode: use the “remote button” to conveniently access car parks or other vehicle entrances.
• Hands-free mode: simply walk towards the reader without any further action.
• Voice command: use SIRI voice command on your iPhone (iOS) or Apple Watch.

Best-in-Class Security
It supports for the latest MIFARE® DESFire® EV3 contactless technologies with new data security mechanisms: “Secure Messaging” to secure the transaction and “Proximity Check” to protect against relay attacks.

Customized Scalable Configuration
The scalability allows you to remove the 125 kHz module once your technology migration is completed and / or to implement new functionality such as a touchscreen or keypad.

Highly Versatile
The reader ensures a gradual transition to advanced security levels. It supports the widest range of contactless identification technologies – legacy 125 kHz technologies (EM®, NEDAP®, CROSSPOINT®), 13.56 MHz MIFARE® DESFire® EV3 and STid Mobile ID® Bluetooth® and NFC virtual cards. It also features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

• custom

  Black

  White

  Skin Effect

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Bluetooth®

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

  125 kHz

• Frequency
  13.56 MHz + 2.4 GHz Bluetooth® + 125 kHz
• Standard
  ISO14443 types A & B, ISO18092, Bluetooth®
• 13.56 MHz Credentials
  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
• Virtual Credential Compatibility
  STid Mobile ID® NFC & Bluetooth® cards, Apple Wallet™ Access NFC (ECP2) passes
• Keypad
  Reader_KeypadUndefined
• Reader_Antenna
  Reader_Antenna_Standard
• Wiegand Interface
  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
• Clock & Data
  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
• RS485
  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
• SSCP Protocol
  RS485 output – Controlled by SSCP® v1 & v2 secure communication protocols
• Light Indicator
  2 RGB LEDs – 360 colors
• Data Protection
  EAL 5+ Certified Secure Element Hardware for secure key storage.
• Tamper Detection
  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
• Inputs/Outputs
  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
• Operating Voltage
  7 – 28 VDC
• Operating Temperature
  -30°C / +70°Cn-22°F / +158°F
• Robustness
  IK10 Certified
• Mounting
  Wall-mounted
• Certifications
  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
• Range
  0 – 8 cm / 0 – 3.1 in with a MIFARE® DESFire® EV3 card
  0 – 20 m / 0 – 66 ft with a Bluetooth® virtual card
  0 – 8 cm / 0 – 3.1 in with a 125 kHz card
• Housing Materials & Color
  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
• Dimensions & Weight
  146 x 80 x 26 mm / 5.7 x 3.15 x 0.98 in (general tolerance following ISO NFT 58-000 standard)
• Resistance
  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%
• Connections
  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal
• Current Draw
  180 mA/12 VDC max

• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number
    ARCS-RX1-I/BT2-xx/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARCS-SX1-I/BT2-xx/y
• RS485
  • Secure Private ID and/or CSN serial number
    ARCS-RX3-I/BT2-7AB/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARCS-SX3-I/BT2-7AB/y
  • Secure Private ID and/or CSN serial number compatible with EasySecure interface
    ARCS-RX3-I/BT2-7AA/y
  • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface
    ARCS-SX3-I/BT2-7AA/y
• SSCP Protocols
  • SSCP® v1 protocol
    ARCS-WX3-I/BT2-7AA/y
  • SSCP® v2 protocol
    ARCS-WX3-I/BT2-7AD/y
• OSDP Protocols
  • Secure Private ID and/or CSN serial number
    ARCS-WX3-I/BT2-7OS/y
