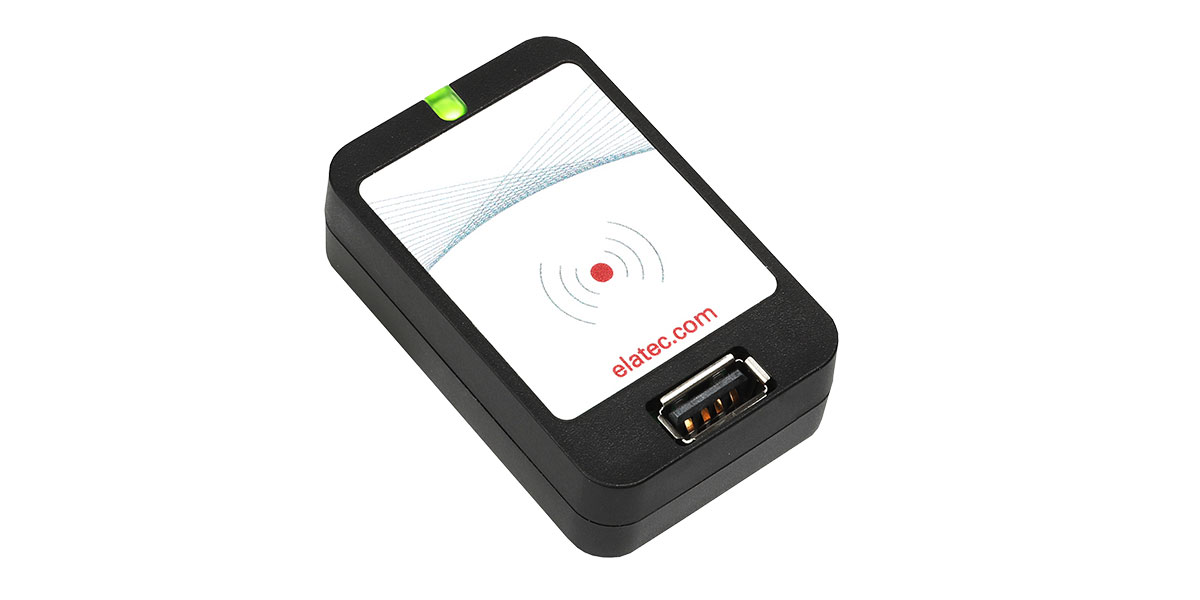

Elatec® TWN4 USB Front Reader LEGIC

The TWN4 USB Front Reader allows users to read and write almost all common global 125 kHz and 13.56 MHz tags and/or labels.

Category: Brand:
SKU:
Share:

The reader supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID etc. and ISO standards like ISO14443A/B (T=CL), ISO15693, ISO18092 / ECMA-340 (NFC).

  • Easy setup and roll-out

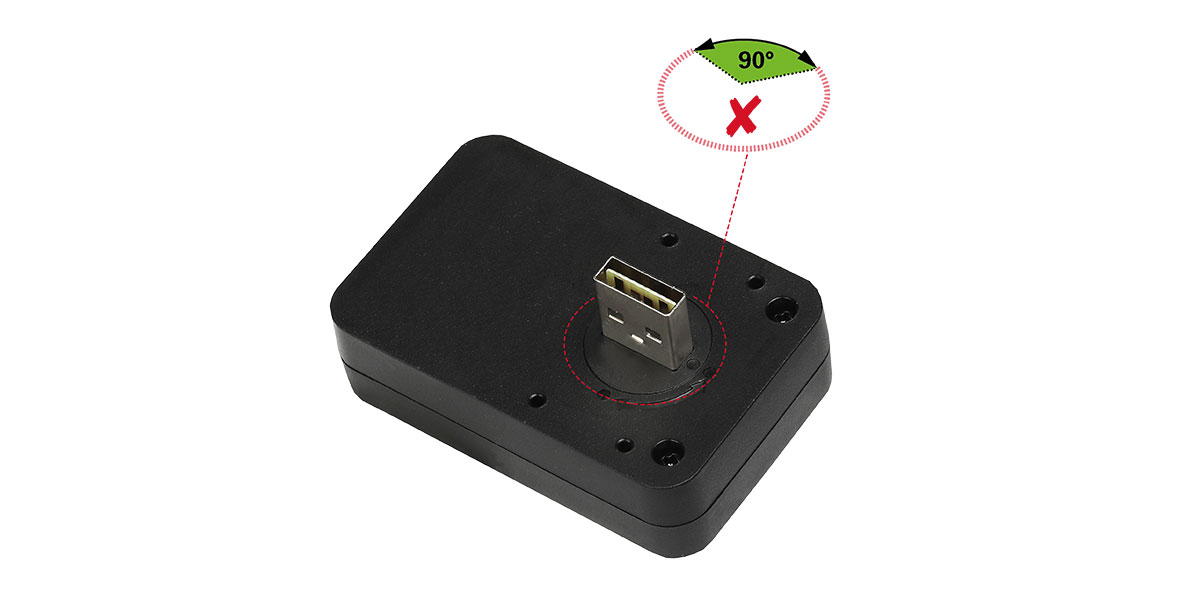

  • 90° rotatable USB interface
  • Manageable USB port

  • Multi-frequency RFID reader/writer for 125 kHz, 13.56 MHz, NFC, Bluetooth Low Energy
  • Powerful SDK for writing apps which are executed directly on the reader
  • Encrypted communication (AES128) between card reader and printer available
  • Firmware update in the field possible
  • USB hub “pass through” on the front side can be deactivated via device driver

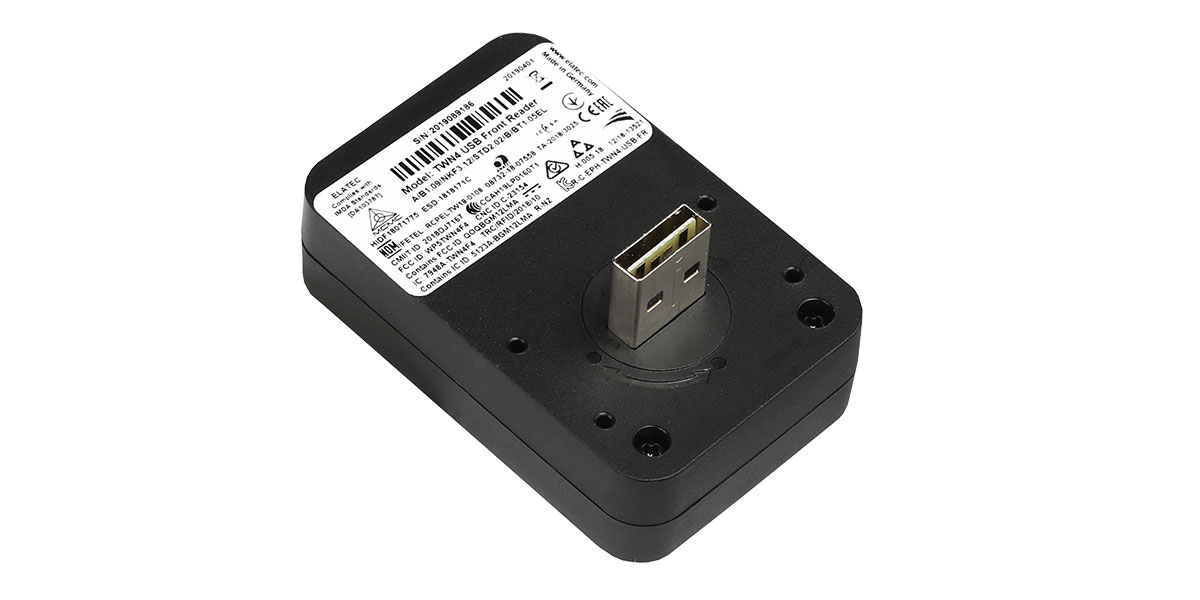

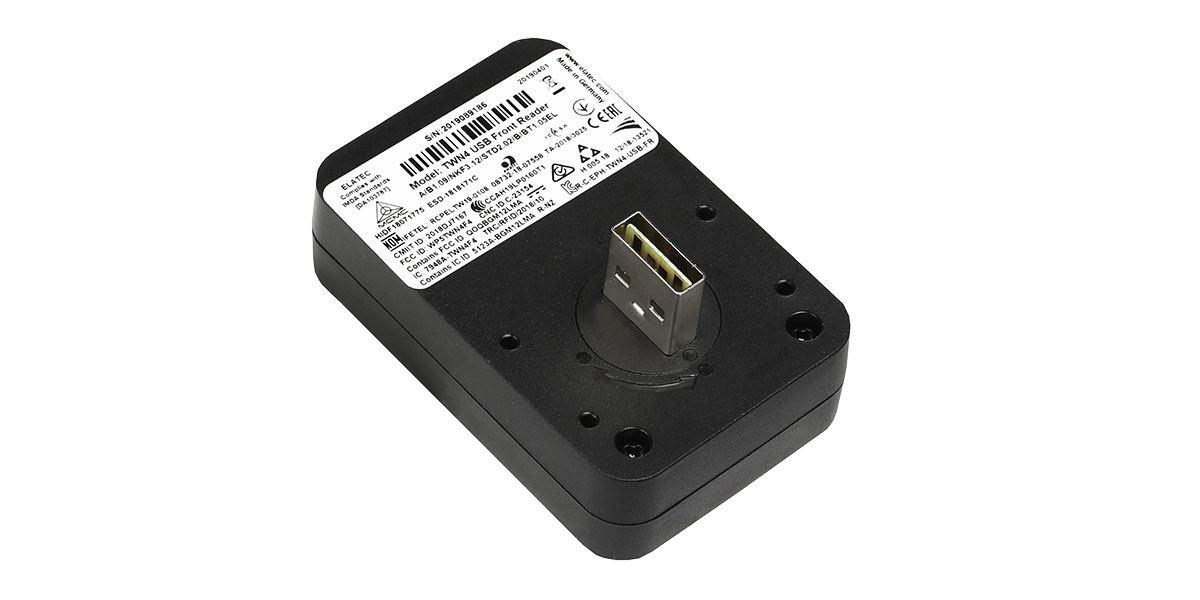

  • USB connector on the rear side can be rotated, which offers the possibility of a 360° mounting
  • Available with custom inlay and packaging as “ready to sell from stock”
  • Onboard 18 kB flash storage, e.g., for storing user accessible non-volatile data
  • Direct chip commands support
  • One onboard SAM socket (Secure Access Module)
  • CCID and PC/SC 2.01
  • TWN4 Upgrade Card for P option available on request
  • Supports quick (re)configuration over network and over wireless interface with TWN4 CONFIG Card
  • 3D construction data (STEP) available on request

The new TWN4 USB Front Reader integrates RFID (125 kHz and 13.56 MHz), NFC and Bluetooth ® Low Energy (BLE) capabilities into a compact but powerful reader that can be easily connected to an external USB port. It has a rotatable USB interface, which offers a 360° mounting opportunity, as well as a USB Port, which can be disabled. Its reduced size combined with excellent read/write performance makes it the perfect reader for various applications including, but not limited to, print solutions, healthcare applications, or single sign-on.


With optimized printing processes for the future

Secure printing for enhanced data protection and convenience.

Whether your company prints a lot or a little, an authentication solution for secure printing ensures security during output, smooth processes and cost transparency.



Secure Single Sign-On Solutions

Future-Proofing Data Security

A single sign-on (SSO) solution saves time and effort. Secure authentication gives authorized users instant access to different systems and files while protecting sensitive data.



Collaborative Machine Authentication for Modern Industries

How humans and machines work together

Dive into the pivotal role of machine-human collaboration. Unlock IIoT safety, embrace efficient RFID & NFC tech, and stay ahead.

Current Software

Request the latest TWN4 DevPack or download the factory default version of your product.

Part numbers

T4FK-BBFRLM7-P
T4FK-BBFRLM7
