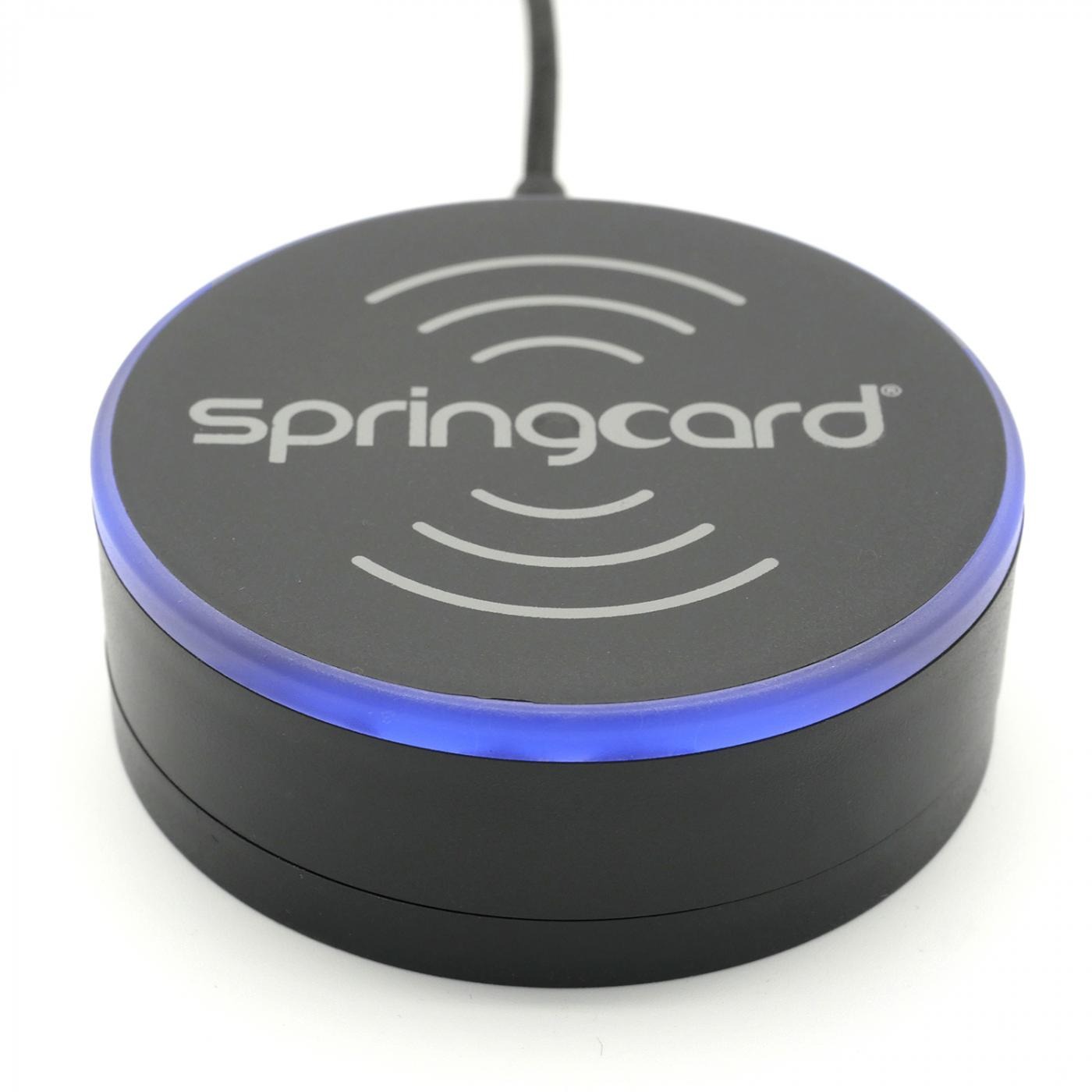

Springcard® PUCK One

Coupler NFC/RFID USB – Slot SAM – ECP2 certified

COUPLER WITH SAM HOLDER

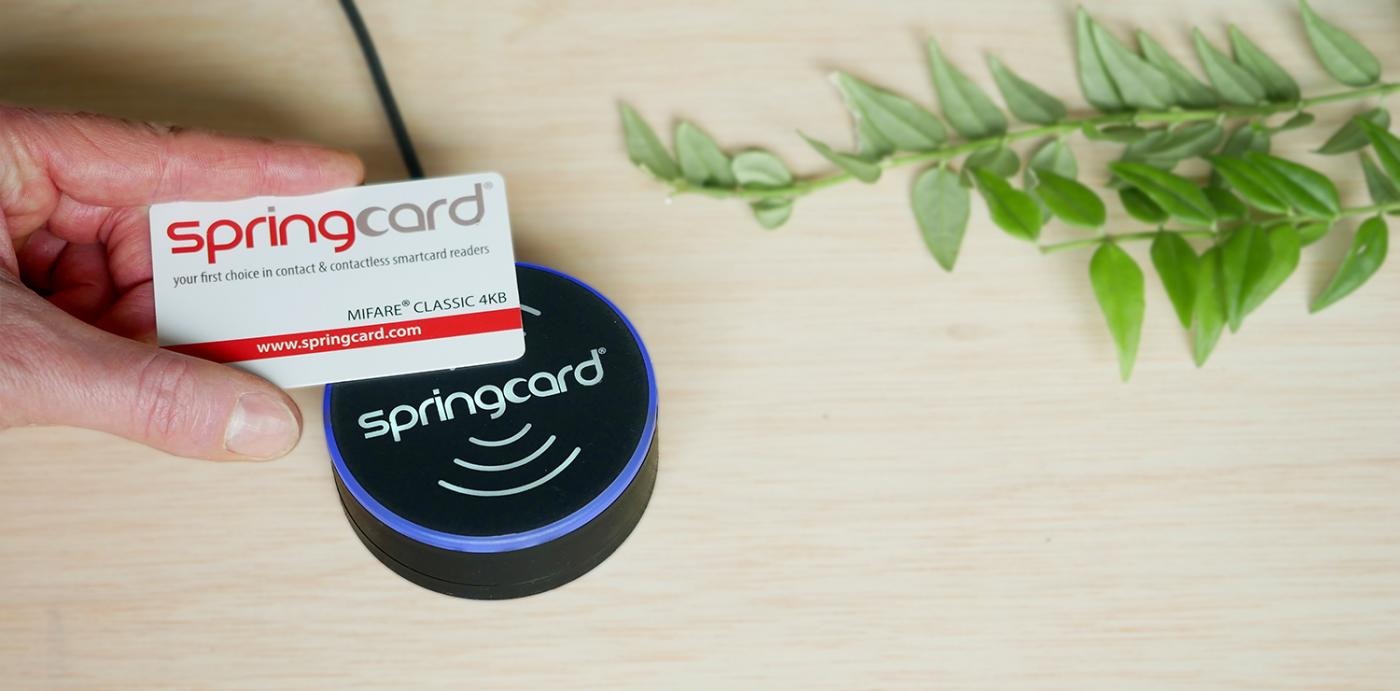

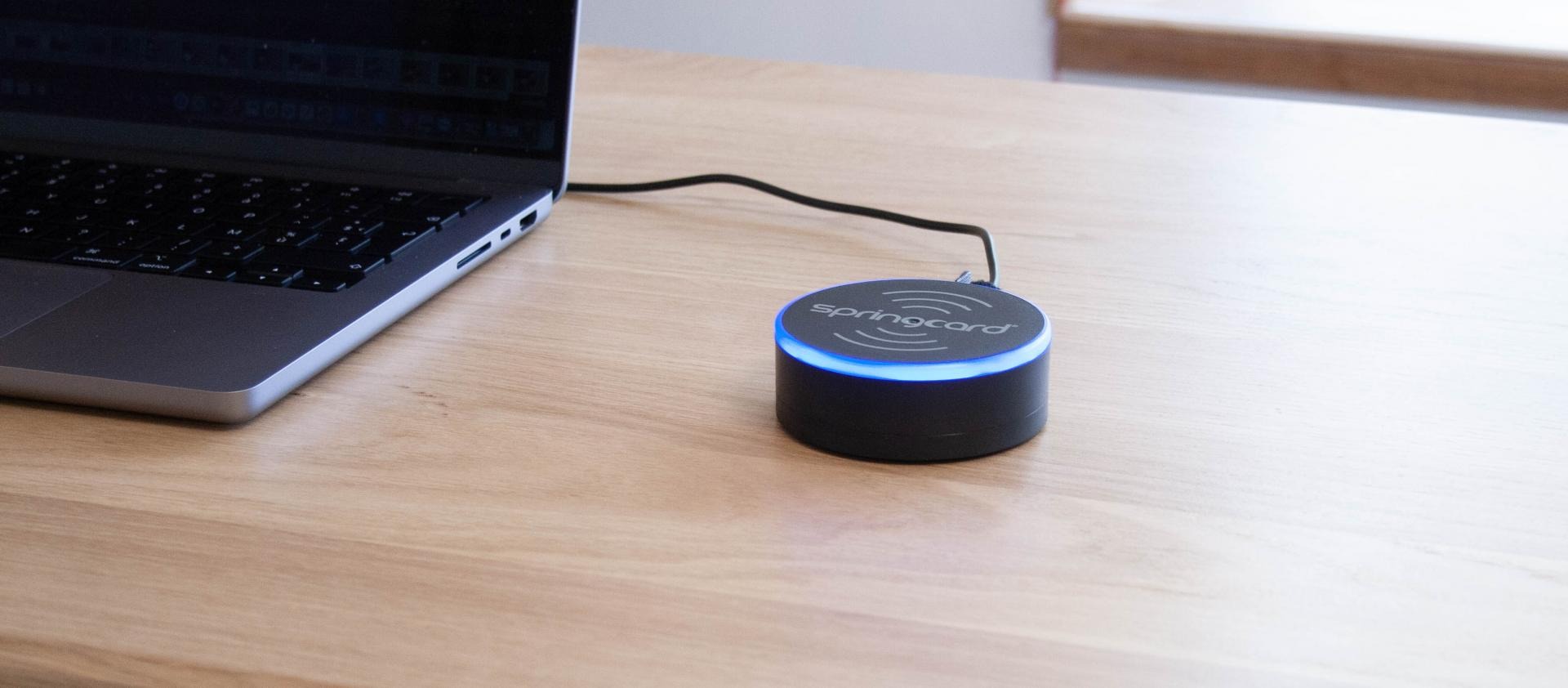

Combined with a computer or laptop under Windows, Mac OS X or Linux, The PUCK One is ideal for customisation application or contactless cards reading: micropayment, transportation, loyalty, eID, company badges. It allows you also to interact with a smartphone, tags or RFID HF labels at 13.56MHz, and broadly speaking with all the ecosystem NFC Forum compliant. RFID Scanner settings (keyboard emulation) allows you to associate the PUCK with an Android or iPad tablet for even more flexibility!

PC/SC SETTING

It is a set of specifications created by the smartcard and computing industry to ensure a complete interoperability at the applicative level. In PC/SC setting, the PUCK is a transparent coupler, which means that he sends orders of the application (read, write, security) to the card and feedbacks the answers without trying to process them. Thanks to its integrated SIM/SAM slot, the PUCK One is the ideal medium for secured transactions.

SPRINGCARD COMPANION

You can set your PUCK One on our SpringCard Companion software which is also a web server accessible from companion.springcard.com. SpringCard Companion allows you to configure your PUCK in one click and store your configuration data. Security is a constant concern for SpringCard, only the lawful owner can intervene on the settings of its products.

APPLE AND GOOGLE WALLET COMPATIBILITY

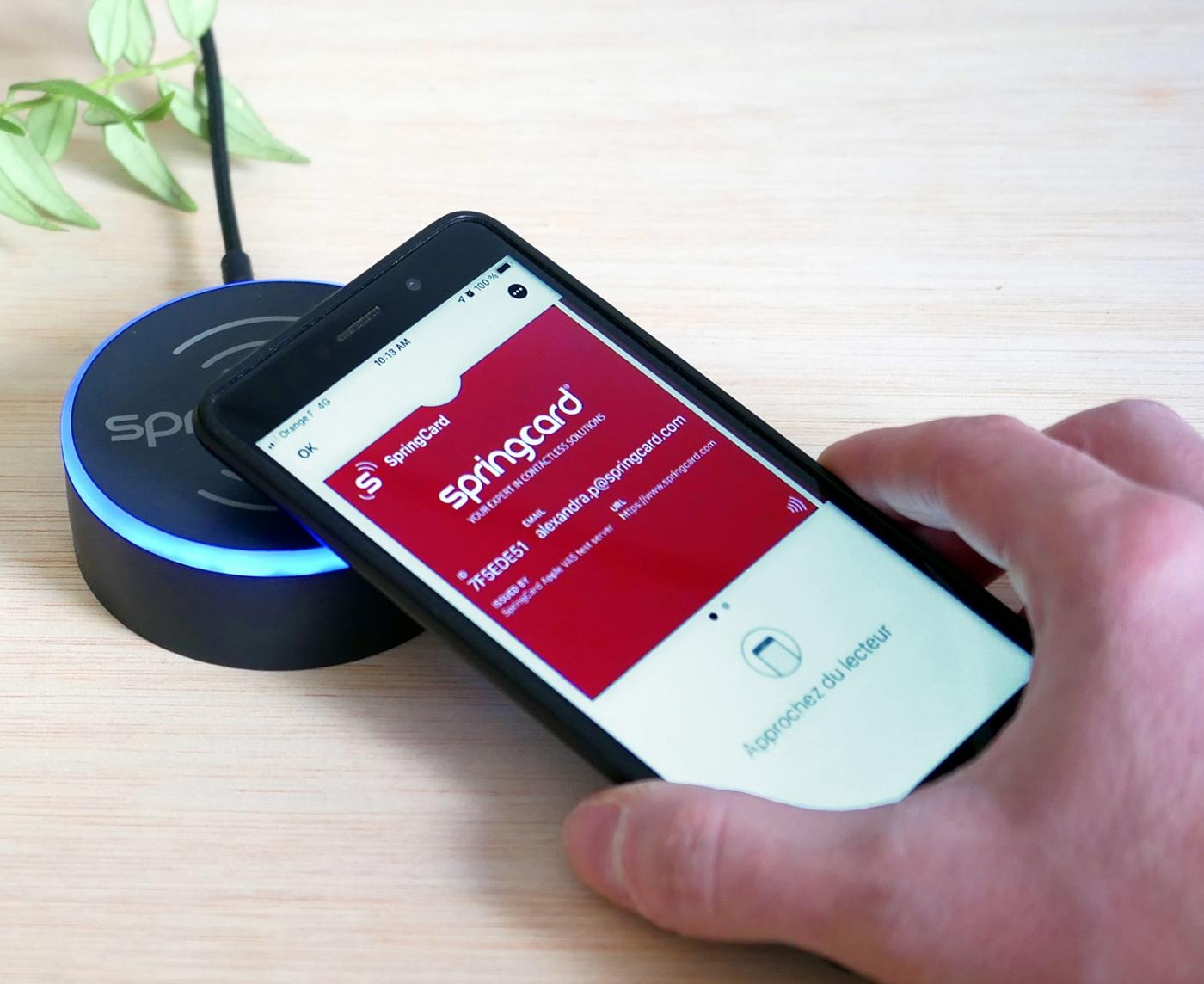

The PUCK One  is now able to read and retrieve NFC pass information from the Apple Wallet and GooglePay applications. Design your own pass and try it for free here !

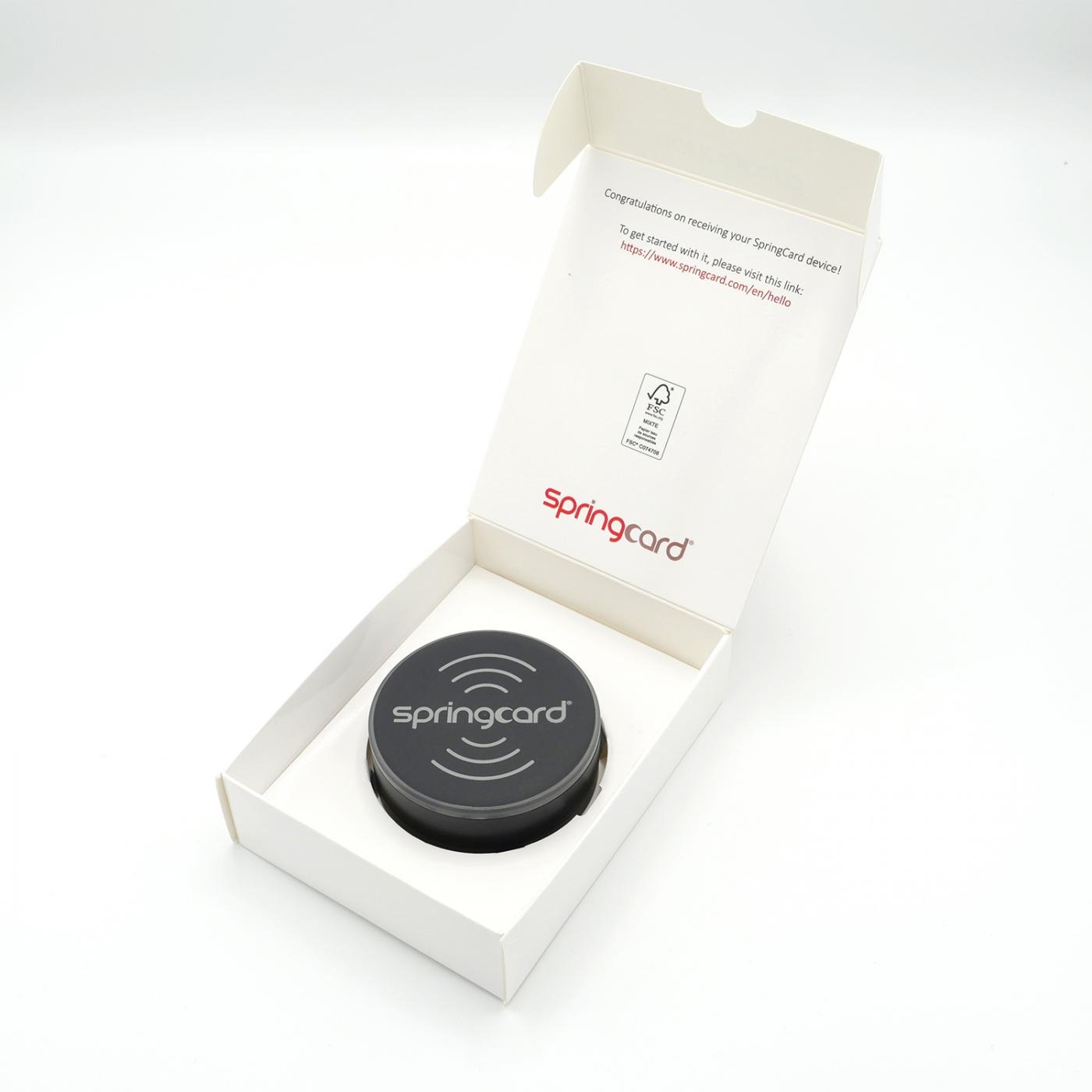

IT MAKES DIFFERENCE The PUCK is a reader made in France and has a 100% recycled and recyclable mechanics. Its packaging is made of recycled and recyclable cardboard certified FSC (Forest Stewardship Council) and the marking is made with vegetable ink.
Get a custom quote
Category: Brand:
SKU:
Share:

Communication channel between your browser and your SpringCard® device
See live tool

Manage, Flash, Upgrade, Configure with Companion
See live tool

Key characteristics

  • Carrier frequency: 13.56MHz
  • Bitrate: 106, 212, 424 or 848kbit/s (ISO 14443, NFC-A & NFC-B), 212 or 424kbit/s (FeliCa, NFC-F), 26kbps (ISO 15693, NFC-V)
  • Integrated antenna, operating distance up to 8cm (depending on card)
Standards

  • Carrier frequency: 13.56MHz
  • ISO/IEC 14443 (1, 2, 3 and 4 ‘T=CL’, both type A and type B): Proximity Coupling Device (PCD)
  • Coupler’s firmware embeds T=CL protocol (ISO-DEP), 256-byte frames
  • ISO/IEC 15693 (1, 2, 3): Vicinity Coupling Device (VCD) or Base Station for RFID labels and tags; ISO/IEC 18000-3M1
  • ISO/IEC 18092 / NFC peer-to-peer (initiator, passive communication mode only)
  • ISO/IEC 21481 (ECMA 352): the device is able to communicate with any NFC object running in card emulation mode
  • ISO/IEC 18000-3 Mode 3 / EPC HF
Performances

  • Dynamic power control (DPC), Adaptative Waveform control (AWS) and Adaptative Receiver Control (ARC) offering best in-class analog performance
  • Validated against NFC Forum Digital test suite
  • Validated against EMVco CL L1 Digital test suite
  • Validated against CEN/TS 16784 (RCTIF 5) test suite
NFC Target modes & P2P

  • NFC Forum Tag emulation (type 4)
  • Host-based emulation (HCE) of contactless smart cards (ISO/IEC 7816-4 over ISO/IEC 14443 type A) possible through a free software library (C#)
  • NFC Beam (push NDEF through SNEP over LLCP) provided as a free software library (C#)
Supported contactless cards/NFC tags/RFID labels

  • NXP Mifare UltraLight, NTAG (NFC Forum T2T), Mifare Classic, Mifare Plus, Desfire, SmartMX…
  • NXP ICODE-SLI family
  • Infineon SLE66 family
  • Texas Instrument my-d proximity
  • Texas Instrument my-d vicinity
  • ST MicroElectronics SR, SRI, SRIX families
  • ST MicroElectronics LR family
  • Innovision Jewel, Topaz (NFC Forum T1T)
  • FeliCa Lite, Lite-S (NFC Forum T3T)
  • ATMEL CryptoRF
  • ASK CTS256/CTS512
  • HID iClass, Inside PicoTag (UID only)
  • Thinfilm NFC Barcode
  • Calypso (CD97, CD21, GTML, etc), Innovatron radio protocol “14443 B'”
  • NFC mobile phones operating in card emulation mode (Apple VAS, Google SmartTap, Android HCE, Mifare2Go…)
  • +virtually all standard-compliant contactless cards, NFC tags and RFID labels in the 13.56MHz (HF) range.

Key characteristics

  • ISO/IEC 7816 (3 and 4): 4MHz clock, supports both T=0 and T=1 protocols, up to TA1=96
  • Validated against EMVco CT L1 Digital test suite

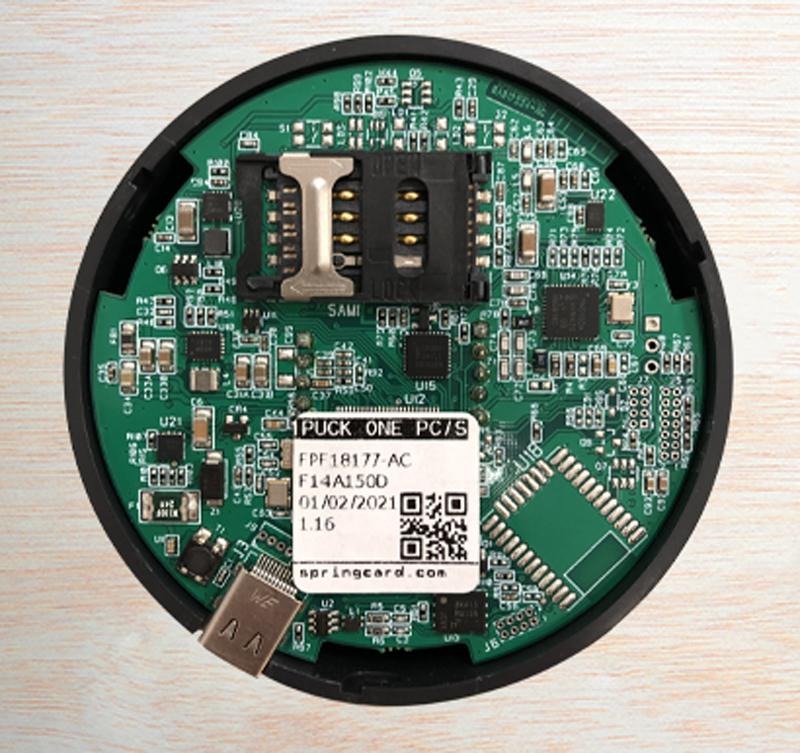

7816 SIM/SAM slot

  • One ID-000 slot inside the shell (‘mini-SIM’ / 2FF)

USB

  • USB 2.0 full-speed (12Mbit/s), compliant with USB 1.1 and 3.0

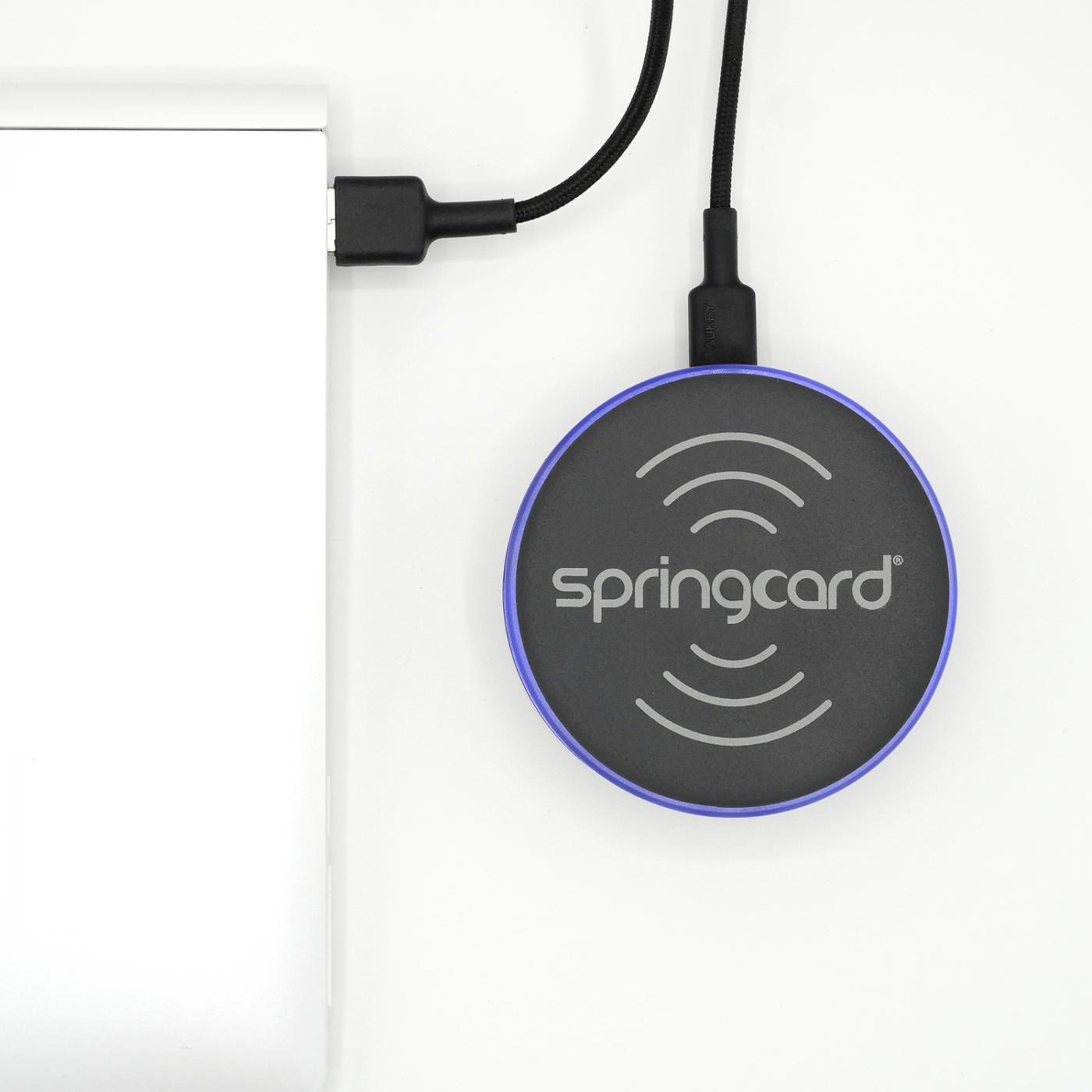

  • USB Type C connector, Type A to Type C cable included
  • Directly powered by USB
PC/SC Mode (USB)

  • PC/SC v2 compliant – USB CCID profile
  • PC/SC driver for Windows Vista/7/8/10 (32 and 64 bits)
  • Supported by PCSC-Lite open-source PC/SC stack and driver on Linux and macOS
Smart Reader Mode (USB)

  • USB HID profile – keyboard emulation (no driver required)
  • USB Direct profile for custom developments

Configuration & Firmware upgrade

  • In-field, no physical action on the device using SpringCard Companion application

⭳ Certificats de conformité CE et FCC – PUCK One en – pdf fr – pdf

User manuals

⭳ Puck One Product Leaflet
