STid Architect® Hybrid & Touchscreen

Secure Scramble Pad Feature

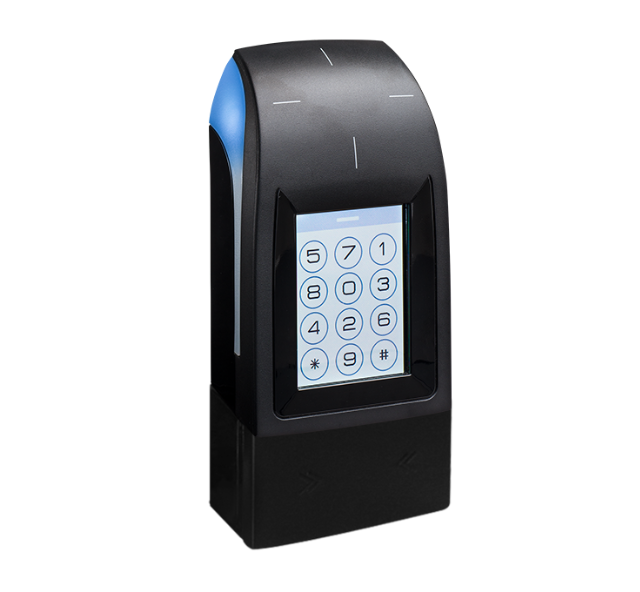

The reader protects access against the fraudulent use of identification codes by the random display of the keys.

Highly Versatile
The reader ensures a gradual transition to advanced security levels. It supports the widest range of contactless identification technologies – legacy 125 kHz technologies (EM®, NEDAP®, CROSSPOINT®) and 13.56 MHz MIFARE® DESFire® EV3. It also features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

An Intuitive Display Experience

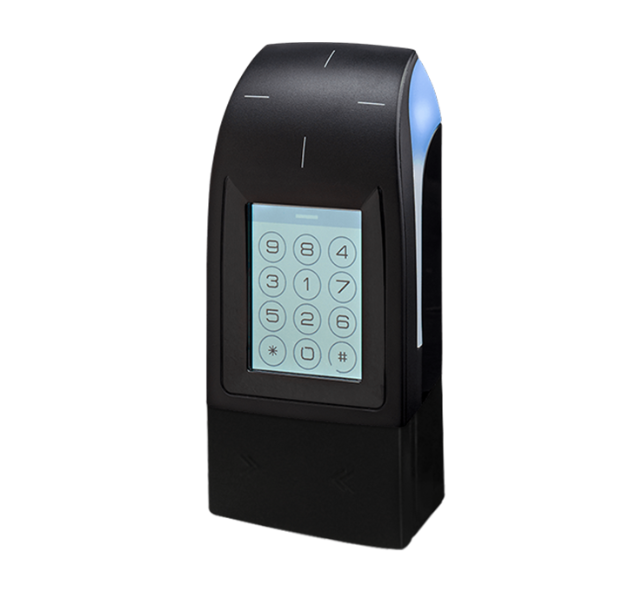

Unlock a world of possibilities with a touchscreen reader! It displays your logos, provides clear instructions, delivers personalized messages, activates a convenient doorbell button, and reveals an intuitive keypad.

Customized Scalable Configuration
The scalability allows you to remove the 125 kHz module once your technology migration is completed and / or to implement new functionality such as a QR code or a biometric module.

• custom

  Black

  White

  Test lighting effect opting for a color

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

  125 kHz

• Frequency

  13.56 MHz + 125 kHz

• Standard

  ISO14443 types A & B, ISO18092

• 13.56 MHz Credentials

  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)

• Virtual Credential Compatibility

  STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes

• Keypad

  Reader_KeypadKeyTouchCardAndKey

• Touchscreen

  Color Touchscreen | TFT LCD (Thin-Film-Transistor Liquid-Crystal Display) | 2.8” – 240 x 320 pixels | Features – Display of texts, images, and on-screen keypad | OSDP™: 4 customizable function buttons with text | SSCP®: customizable screen

• Reader_Antenna

  Reader_Antenna_Touchscreen

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication

• Clock & Data

  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom

• RS232

  RS232 output

• RS485

  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)

• SSCP Protocol

  RS485 and RS232 outputs – Controlled by SSCP® v1 & v2 secure communication protocols

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface

• Configurations

  Configuration by RFID card, software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -20°C / +70°Cn-4°F / +158°F

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS

• Range

  0 – 4 cm / 0 – 1.6 in with a MIFARE® DESFire® EV3 card
  0 – 6 cm / 0 – 2.4 in with a 125 kHz card

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• Dimensions & Weight

  156 x 80 x 30 mm / 6.14 x 3.15 x 1.2 in (general tolerance following ISO NFT 58-000 standard)

• Connections

  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%

• Current Draw

  230 mA/12 VDC max

• RS485
  • Secure Private ID and/or CSN serial number

    ARC-RX3-K/BF5-7AB/y

  • Secure Private ID and/or CSN serial number + Secure communication

    ARC-SX3-K/BF5-7AB/y

  • Secure Private ID and/or CSN serial number compatible with EasySecure interface

    ARC-RX3-K/BF5-7AA/y

  • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface

    ARC-SX3-K/BF5-7AA/y

• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number

    ARC-RX1-K/BF5-xx/y

  • Secure Private ID and/or CSN serial number + Secure communication

    ARC-SX1-K/BF5-xx/y

• SSCP Protocols
  • SSCP® v1 protocol

    ARC-WX3-K/BF5-7AA/y

  • SSCP® v2 protocol

    ARC-WX3-K/BF5-7AD/y

  • SSCP® v1 protocol

    ARC-WX2-K/BF5-5AA/y

• RS232
  • Secure Private ID and/or CSN serial number

    ARC-RX2-K/BF5-5AB/y

• OSDP Protocols
  • Secure Private ID and/or CSN serial number

    ARC-WX3-K/BF5-7OS/y
