STid Architect® Blue Hybrid & Touchscreen

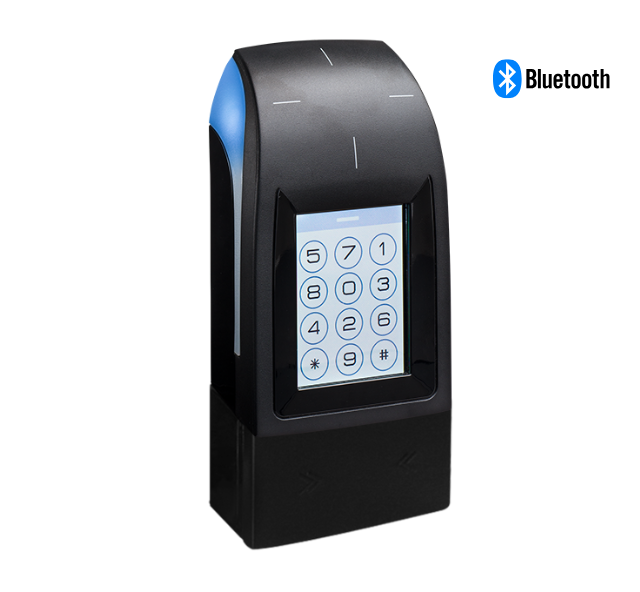

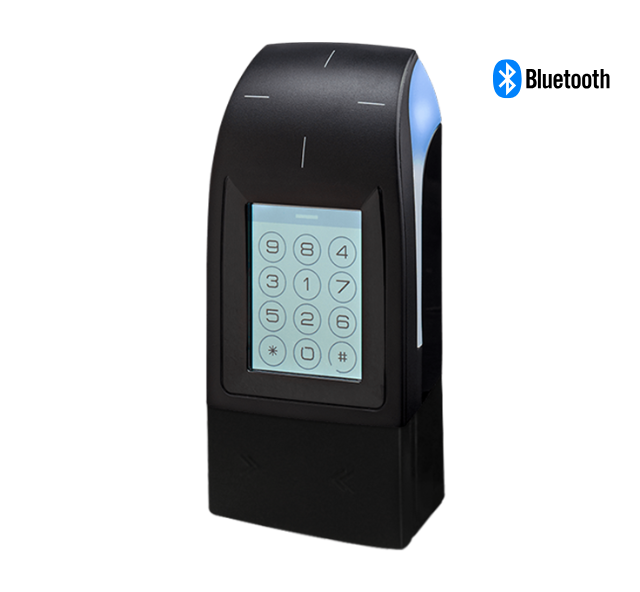

Secure Scramble Pad Feature
The reader protects access against the fraudulent use of identification codes by the random display of the keys.

An Intuitive Display Experience
Unlock a world of possibilities with a touchscreen reader! It displays your logos, provides clear instructions, delivers personalized messages, activates a convenient doorbell button, and reveals an intuitive keypad.

Intuitive Identification, Better User Experience
The reader supports STid Mobile ID® user-friendly solution and offers six unique user interaction modes for intuitive contactless identification:
• Card mode: present your smartphone or wearable to the reader like a conventional access card.
• Slide mode: your hand becomes your access card.
• Tap Tap mode: tap tap the smartphone in your pocket to gain access.
• Remote mode: use the “remote button” to conveniently access car parks or other vehicle entrances.
• Hands-free mode: simply walk towards the reader without any further action.
• Voice command: use SIRI voice command on your iPhone (iOS) or Apple Watch.

Highly Versatile
The reader ensures a gradual transition to advanced security levels. It supports the widest range of contactless identification technologies – legacy 125 kHz technologies (EM®, NEDAP®, CROSSPOINT®), 13.56 MHz MIFARE® DESFire® EV3 and STid Mobile ID® Bluetooth® and NFC virtual cards. It also features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

• custom

  Black

  White

  Test lighting effect opting for a color

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Bluetooth®

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

  125 kHz

• Frequency
  13.56 MHz + 2.4 GHz Bluetooth® + 125 kHz
• Standard
  ISO14443 types A & B, ISO18092, Bluetooth®
• 13.56 MHz Credentials
  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
• Virtual Credential Compatibility
  STid Mobile ID® NFC & Bluetooth® cards, Apple Wallet™ Access NFC (ECP2) passes
• Keypad
  Reader_KeypadKeyTouchCardAndKey
• Touchscreen
  Color Touchscreen | TFT LCD (Thin-Film-Transistor Liquid-Crystal Display) | 2.8” – 240 x 320 pixels | Features – Display of texts, images, and on-screen keypad | OSDP™: 4 customizable function buttons with text | SSCP®: customizable screen
• Reader_Antenna
  Reader_Antenna_Touchscreen
• Wiegand Interface
  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
• Clock & Data
  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
• RS485
  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
• SSCP Protocol
  RS485 output – Controlled by SSCP® v1 & v2 secure communication protocols
• Light Indicator
  2 RGB LEDs – 360 colors
• Data Protection
  EAL 5+ Certified Secure Element Hardware for secure key storage.
• Tamper Detection
  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
• Inputs/Outputs
  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
• Operating Voltage
  7 – 28 VDC
• Operating Temperature
  -20°C / +70°Cn-4°F / +158°F
• Mounting
  Wall-mounted
• Certifications
  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
• Housing Materials & Color
  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
• Range
  0 – 4 cm / 0 – 1.6 in with a MIFARE® DESFire® EV3 card
  0 – 20 m / 0 – 66 ft with a Bluetooth® virtual card
  0 – 6 cm / 0 – 2.4 in with a 125 kHz card
• Connections
  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal
• Resistance
  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%
• Dimensions & Weight
  156 x 80 x 30 mm / 6.14 x 3.15 x 1.2 in (general tolerance following ISO NFT 58-000 standard)
• Current Draw
  250 mA/12 VDC max

• RS485
  • Secure Private ID and/or CSN serial number
    ARCS-RX3-K/BT2-7AB/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARCS-SX3-K/BT2-7AB/y
  • Secure Private ID and/or CSN serial number compatible with EasySecure interface
    ARCS-RX3-K/BT2-7AA/y
  • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface
    ARCS-SX3-K/BT2-7AA/y
• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number
    ARCS-RX1-K/BT2-xx/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARCS-SX1-K/BT2-xx/y
• OSDP Protocols
  • Secure Private ID and/or CSN serial number
    ARCS-WX3-K/BT2-7OS/y
• SSCP Protocols
  • SSCP® v1 protocol
    ARCS-WX3-K/BT2-7AA/y
  • SSCP® v2 protocol
    ARCS-WX3-K/BT2-7AD/y
