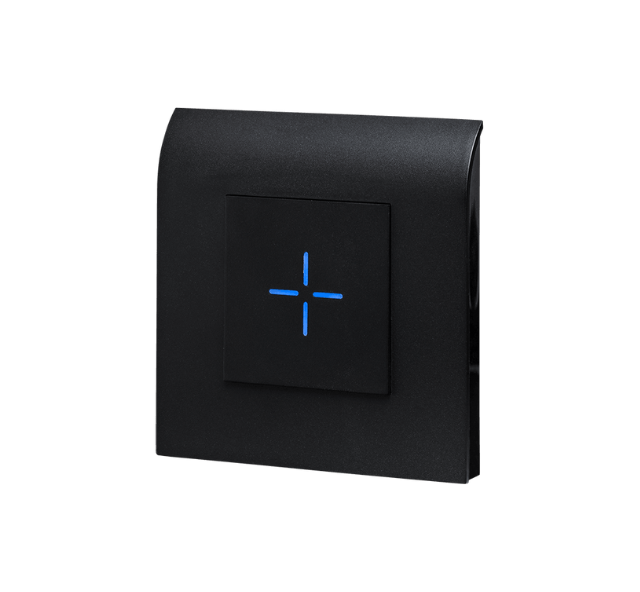

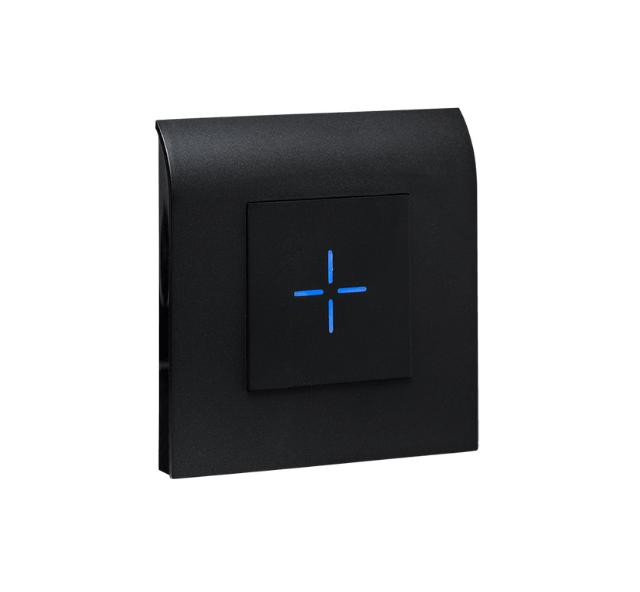

STid Architect® Wall Switch

Best-in-Class Security
It supports for the latest MIFARE® DESFire® EV3 contactless technologies with new data security mechanisms: “Secure Messaging” to secure the transaction and “Proximity Check” to protect against relay attacks.

Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys. Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Easy Integration
The reader is compatible with all access
control systems and accepts multiple
interfaces and protocols (Wiegand, Clock&Data, SSCP® and OSDP™).

Simplified Installation and Cutting-Edge Design
The Architect® WAL reader combines ease of installation with sleek aesthetics. Its compact size allows effortless integration into all European electrical boxes, while the detachable terminal block minimizes installation time.

Designed with discretion in mind, the reader enhances the elegance of your access points with its ultra-compact and lightweight form. Its compatibility with Legrand™ Mosaic finishing plates and customizable STid covers ensures seamless blending into any architectural style, making it the perfect choice for modern and secure access control systems.

• custom

  Black

  White

  Skin Effect

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

• Frequency

  13.56 MHz

• Standard

  ISO14443 types A & B, ISO18092

• 13.56 MHz Credentials

  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)

• Virtual Credential Compatibility

  STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes

• Keypad

  Reader_KeypadUndefined

• Reader_Antenna

  Reader_Antenna_FlushMounted

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication

• Clock & Data

  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom

• RS232

  RS232 output

• RS485

  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)

• SSCP Protocol

  RS485 and RS232 outputs – Controlled by SSCP® v1 & v2 secure communication protocols

• Light Indicator

  1 LED with 7 colors (green, red, blue, yellow, purple, turquoise, white)

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface

• Configurations

  Configuration by RFID card, software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  5 – 24 VDC

• Operating Temperature

  -20°C / +70°Cn-4°F / +158°F

• Mounting

  Flush-mounted on electrical boxes – Compatible with European electrical boxes 60 & 62 mm / 2.36 & 2.44 in

• Certifications

  CE (Europe), FCC (USA), IC (Canada), UL, RoHS

• Range

  0 – 6 cm / 0 – 2.4 in with a MIFARE® DESFire® EV3 card

• Dimensions & Weight

  Core: 45 x 45 mm / 1.78 x 1.78 in
  With Mosaic deco plate: 82 x 82 mm / 3.23 x 3.23 in – STid: 85 x 85 mm / 3.35 x 3.35 in

• Resistance

  Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation)

• Current Draw

  100 mA/12 VDC max

• Housing Materials & Color

  ABS and polycarbonate (ABS-PC)
  Black or white

• Connections

  8-pin plug-in connector (3.8 mm / 0.15 in)

• RS485
  • Secure Private ID and/or CSN serial number

    WAL2-R33-E/PH5-7AB/y

  • Secure Private ID and/or CSN serial number + Secure communication

    WAL2-S33-E/PH5-7AB/y

  • Secure Private ID and/or CSN serial number compatible with EasySecure
    interface

    WAL2-R33-E/PH5-7AA/y

  • Secure Private ID and/or CSN serial number + Secure communication
    compatible with EasySecure interface

    WAL2-S33-E/PH5-7AA/y

• TTL (Wiegand / Clock&Data)
  • CSN serial number

    WAL2-R31-E/103-xx/y

  • Secure Private ID and/or CSN serial number

    WAL2-R31-E/PH5-xx/y

  • Secure Private ID and/or CSN serial number + Secure communication

    WAL2-S31-E/PH5-xx/y

• OSDP Protocols
  • Secure Private ID and/or CSN serial number

    WAL2-W33-E/PH5-7OS/y

• SSCP Protocols
  • SSCP® v1 protocol

    WAL2-W33-E/PH5-7AA/y

  • SSCP® v2 protocol

    WAL2-W33-E/PH5-7AD/y

  • SSCP® v1 protocol

    WAL2-W32-E/PH5-5AA/y

• RS232
  • Secure Private ID and/or CSN serial number

    WAL2-R32-E/PH5-5AB/y
