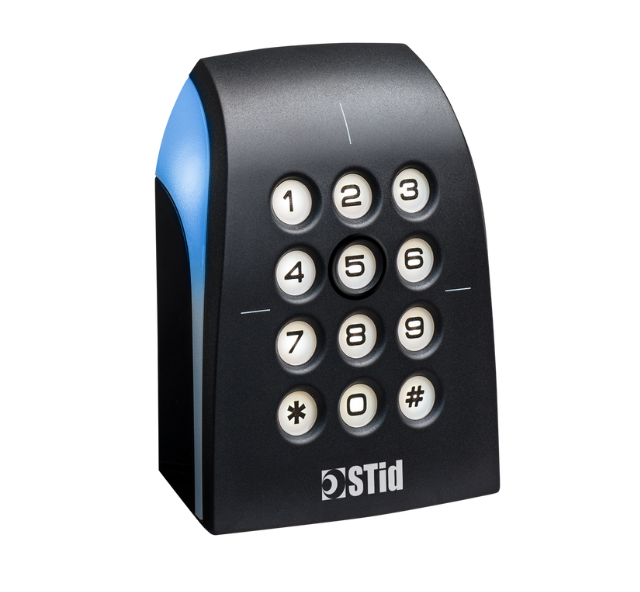

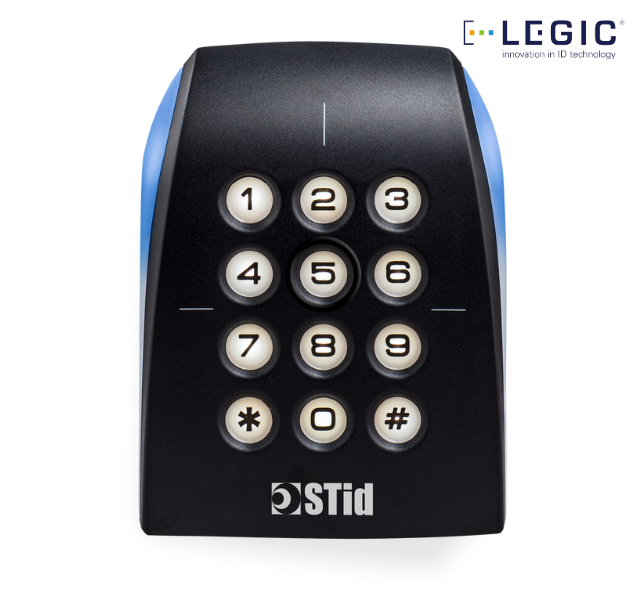

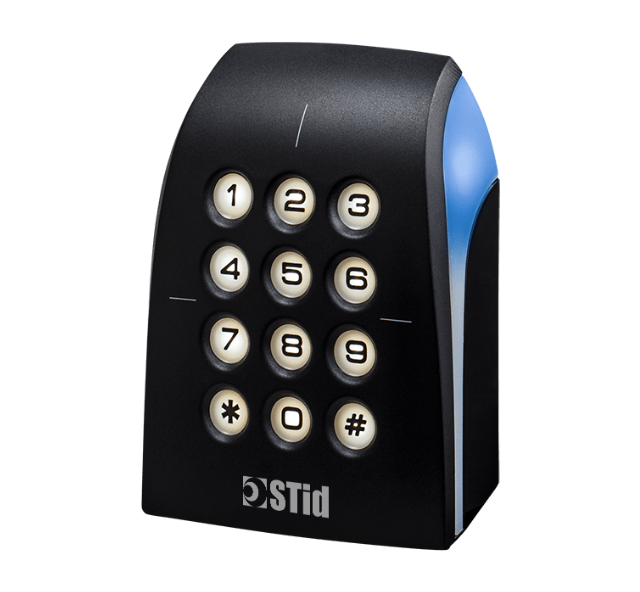

STid Architect® LEGIC® Keypad

Two-Factor Authentication
The reader combines the reading of a credential with the input of a personal keypad code to improve the security levels.

Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys. Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Welcome to High Security
The Architect® reader uses the latest LEGIC® Advant contactless chip technologies with new data security mechanisms.
All public encryption algorithms can be used (AES, RSA, SHA, etc.), which are recommended by official data security agencies.

• custom

  Black

  White

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

• technologies

  13.56 MHz LEGIC®

• Frequency

  13.56 MHz

• Standard

  ISO14443 type A, ISO15693, LEGIC® RF

• 13.56 MHz Credentials

  LEGIC® Advant & Prime | CSN of the chips:
  MIFARE® Ultralight® & Ultralight® C,
  MIFARE® Classic & Classic EV1, MIFARE Plus®,
  MIFARE® DESFire® 256, EV1, EV2 & EV3,
  PicoPass®, iCLASS™, ICODE SLI, Inside chips

• Keypad

  Reader_KeypadKeyTouchCardThenKey

• Reader_Antenna

  Reader_Antenna_Keypad

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64 bits or custom

• Clock & Data

  Clock&Data 32 bits, 40 bits or custom

• RS232

  RS232 output

• RS485

  RS485 output

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system

• Inputs/Outputs

  Solid State Relay | 60V | 0.2A | 1Ω | Automatic tamper detection

• Configurations

  Software or external command (0V)

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -20°C / +70°C

• Robustness

  IK08 Certified

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), RoHS

• Dimensions & Weight

  107 x 80 x 26 mm

• Range

  0 – 6 cm

• Connections

  10-pin & 2-pin plug-in connectors

• Resistance

  IP65 | Weather-resistant | Humidity 0–95%

• Current Draw

  160 mA/12 VDC max

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number

    ARC-R31-M/LE2-xx/y

• RS232
  • Secure Private ID and/or CSN serial number

    ARC-R32-M/LE2-5AB/y

• RS485
  • Secure Private ID and/or CSN serial number

    ARC-R33-M/LE2-7AB/y

• SSCP Protocols
  • SSCP® v1 protocol

    ARC-W33-M/LE2-7AA/y

  • SSCP® v1 protocol

    ARC-W32-M/LE2-5AA/y
