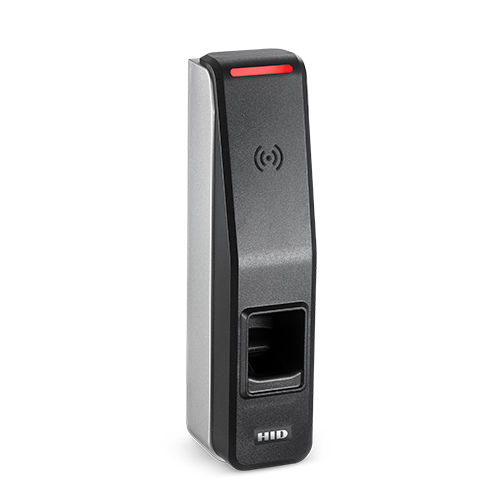

HID® Signo™ Biometric Reader 25B

Multi-technology, mobile ready, fingerprint reader
SKU: IN-HID-SGN-25B Category: Brand:
SKU: IN-HID-SGN-25B
Share:

Overview

The HID Signo Biometric Reader 25B introduces fingerprint authentication to the growing Signo platform from HID. Offering a truly dynamic approach to secure electronic access control, HID Signo Readers are designed to be highly versatile, powerful, and connected for the future.

Introduce two-factor authentication for additional security or go cardless, the HID Signo Biometric Reader 25B supports a wide range of biometric operating modes including storing fingerprint template on card or on device. The reader is also capable of supporting a large range of different credential technologies in a variety of form factors including cards, fobs and mobile devices.

Key Features:

  • Highly Versatile — Unmatched flexibility to deploy multiple authentication modes, including biometric fingerprint and contactless physical and mobile credentials with a single reader platform
  • Enhanced Performance — Advanced biometric fingerprint match reliability
  • Connected to the Future — Easily configure and manage in the field with HID Biometric Manager, including support for software upgrades over the network

HID Biometric Manager is available to download for free with each device. This on-premises server-based software can be used to configure and manage the reader, including firmware updates over the network and loading MOB or Elite keys in the field. In addition, the software enables enrollment of user’s fingerprint credentials for use with the different biometric authentication modes — 1:1 verification and 1:N identification.

The launch of the HID Signo Biometric Reader 25B also introduces an API for integration with our partners access control software solutions. This enables a single point of biometric template enrollment through the access control system and the ability to push biometric templates to all connected devices simultaneously.

Specifications

Imaging Technology:

  • Patented Multispectral sensor

Credential Technology:

  • Seos™
  • iCLASS SE
  • iCLASS Legacy
  • MIFARE® Classic, MIFARE Plus
  • MIFARE DESFire®
  • HID Mobile Access (Bluetooth/NFC)
  • Biometric Functions (Authentication Modes):
  • 1:1 Matching Verification
  • 1:N Searching Identification

Communications:

  • TCP/IP (Host)
  • OSDP (v 2.1.7), Wiegand-Out (Controller)

Communications (Controller):

  • TCP/IP (Host)
  • OSDP(v2.1.7) – 1 additional Reader (OSDP-SC supported)
  • OSDP-SC Supported

Dimensions:

  • 5 cm x 20.4 cm x 5.5 cm

Input Voltage:

  • 12 VDC

Environmental Rating:

  • IP67, IK09

Operating Temperature:

  • -20°C to 66°C

Warranty:

  • Warranted against defect in materials and workmanship for 18 months. See complete warranty policy for details.

Additional information

Additional information

Brand

HID

Product Lines

Signo™

Main Technology

HF – High Frequency 13,56Mhz / NFC

Bluetooth / BLE

Yes

Card technology

HID iCLASS®, HID Seos®, MIFARE Classic®, MIFARE DESFire®, MIFARE Plus®

Interface

Ethernet / PoE, OSDP, RS-485, Wiegand

Protection Class

IP67

Impact Resistance

IK09
