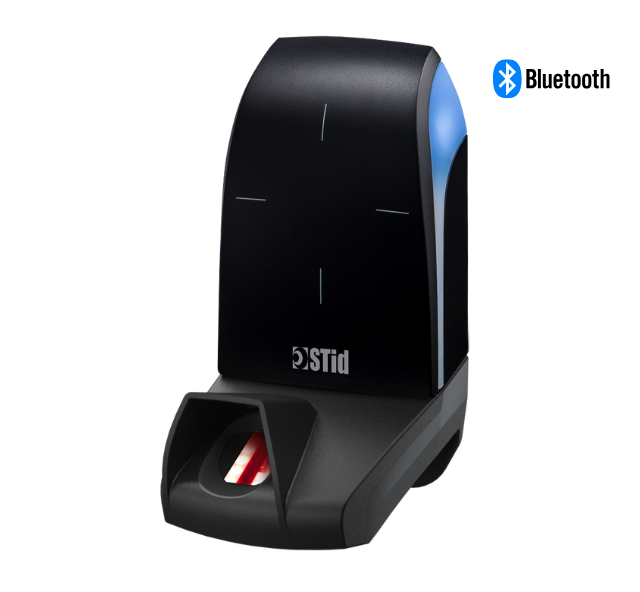

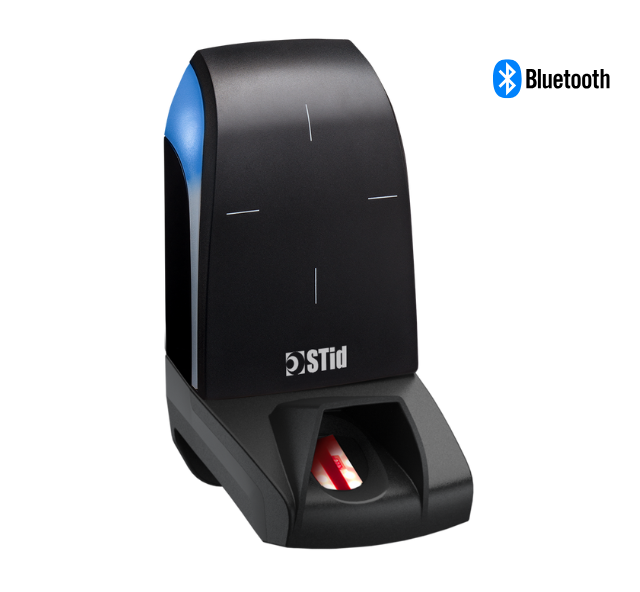

STid Architect® Blue Biometrics

Effortless Fingerprint Control
The biometric reader offers a different options to suit your needs:
• Fingerprint templates stored on the RFID card, ensuring compliance with CNIL French and GDPR European legislation.
• Templates stored within the system.
• Biometric exemption with card-only mode, using RFID card or the convenience of smartphone biometric unlocking, ideal for one-time visitors or individuals with challenging fingerprints.

Advanced Anti-Spoof Functions
The biometric reader is designed to resist fraud and spoof attempts:
• False finger detection: the reader detects a wide range of counterfeit fingerprints made of latex, Kapton, transparent film, rubber, graphite, etc.
• Detection of live fingers.
• Duress finger: the admin can assign a
finger number dedicated to authentication when the user is threatened.

Strong Two-Factor Authentication
The reader combines the reading of a secure MIFARE® DESFire® EV3 credential with the fingerprint identification to enhance the security levels.
Fingerprints are converted into a template, meaning no image is ever saved. Templates stored on the card or server are then also encrypted and signed to guarantee the confidentiality, the origin and the integrity of the data.

Highly Versatile
The reader supports the widest range of credential technologies, including 13.56 MHz DESFire® EV3, STid Mobile ID® instinctive identification modes (Tap Tap, Remote…) via native Bluetooth® and Near Field Communication (NFC) capability. It also features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

• custom

  Black

  White

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Bluetooth®

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

• Frequency
  13.56 MHz + 2.4 GHz Bluetooth®
• Standard
  ISO14443 type A, Bluetooth®
• 13.56 MHz Credentials
  MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3
• Virtual Credential Compatibility
  STid Mobile ID® NFC & Bluetooth® cards, Apple Wallet™ Access NFC (ECP2) passes
• Keypad
  Reader_KeypadUndefined
• Reader_Antenna
  Reader_Antenna_Standard
• Wiegand Interface
  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
• Clock & Data
  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
• RS485
  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
• SSCP Protocol
  RS485 output – Controlled by SSCP® v1 & v2 secure communication protocols
• Light Indicator
  2 RGB LEDs – 360 colors
• Data Protection
  EAL 5+ Certified Secure Element Hardware for secure key storage.
• Tamper Detection
  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
• Inputs/Outputs
  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
• Operating Voltage
  7 – 28 VDC
• Operating Temperature
  -10°C / +50°Cn14°F / +122°F
• Mounting
  Wall-mounted
• Certifications
  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
• Housing Materials & Color
  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
• Resistance
  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%
• Dimensions & Weight
  149 x 80 x 71 mm / 5.63 x 3.15 x 2.80 in (general tolerance following ISO NFT 58-000 standard)
• Connections
  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal
• Range
  0 – 8 cm / 0 – 3.1 in with a MIFARE® DESFire® EV3 card
  0 – 20 m / 0 – 66 ft with a Bluetooth® virtual card
• Current Draw
  300 mA/12 VDC max

• SSCP Protocols
  • SSCP® v1 protocol
    ARCS-W33-D/BT1-7AA/y
  • SSCP® v2 protocol
    ARCS-W33-D/BT1-7AD/y
• OSDP Protocols
  • Secure Private ID
    ARCS-W33-D/BT1-7OS/y
• RS485
  • Secure Private ID
    ARCS-R33-D/BT1-7AB/y
  • Secure Private ID + Secure communication
    ARCS-S33-D/BT1-7AB/y
  • Secure Private ID compatible with EasySecure interface
    ARCS-R33-D/BT1-7AA/y
  • Secure Private ID + Secure communication compatible with EasySecure interface
    ARCS-S33-D/BT1-7AA/y
• TTL (Wiegand / Clock&Data)
  • Secure Private ID
    ARCS-R31-D/BT1-xx/y
  • Secure Private ID + Secure communication
    ARCS-S31-D/BT1-xx/y
