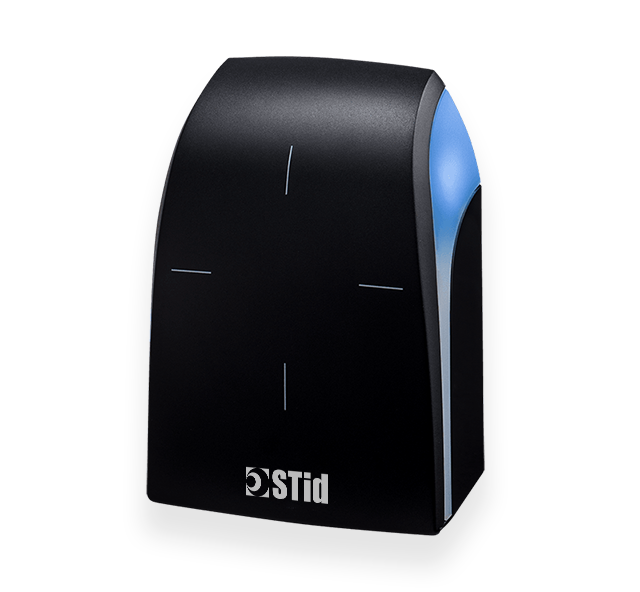

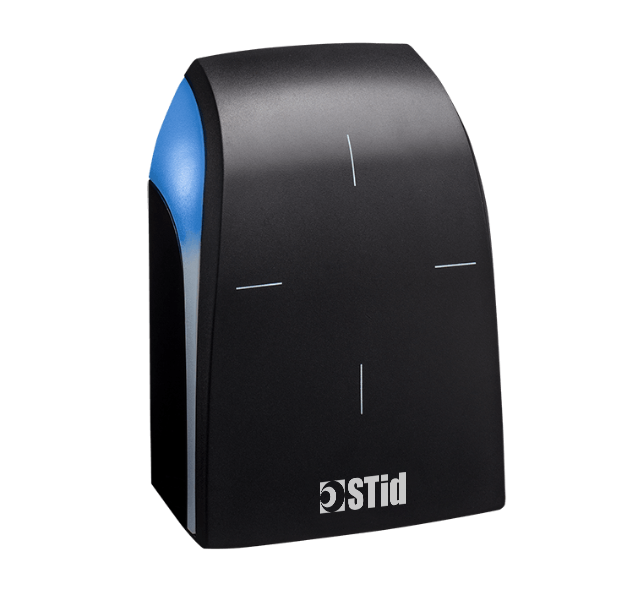

STid Architect® Reader

Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys. Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

N/A

Highly Versatile
The reader supports 13.56 MHz DESFire® EV3, Near Field Communication (NFC) capability and features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

Best-in-Class Security
It supports for the latest MIFARE® DESFire® EV3 contactless technologies with new data security mechanisms: “Secure Messaging” to secure the transaction and “Proximity Check” to protect against relay attacks.

• custom

  Black

  White

  Skin Effect

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

• Frequency

  13.56 MHz

• Standard

  ISO14443 types A & B, ISO18092

• 13.56 MHz Credentials

  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)

• Virtual Credential Compatibility

  STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes

• Keypad

  Reader_KeypadUndefined

• Reader_Antenna

  Reader_Antenna_Standard

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication

• Clock & Data

  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom

• RS232

  RS232 output in read-only mode

• RS485

  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication), EasyRemote (transparent) and RemoteSecure (SSCP® v1 transparent)

• SSCP Protocol

  RS485 and RS232 outputs – Controlled by SSCP® v1 & v2 secure communication protocols

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface

• Configurations

  Configuration by RFID card, software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -30°C / +70°Cn-22°F / +158°F

• Robustness

  IK10 Certified

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS

• Range

  0 – 8 cm / 0 – 3.1 in with a MIFARE® DESFire® EV3 card

• Connections

  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal

• Current Draw

  130 mA/12 VDC max

• Dimensions & Weight

  107 x 80 x 26 mm / 4.2 x 3.1 x 1 in (general tolerance following ISO NFT 58-000 standard)

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• RS232
  • Secure Private ID and/or CSN serial number

    ARC-R32-A/PH5-5AB/y

• OSDP Protocols
  • CSN serial number

    ARC-W33-A/103-7OS/y

  • Secure Private ID and/or CSN serial number

    ARC-W33-A/PH5-7OS/y

• TTL (Wiegand / Clock&Data)
  • CSN serial number

    ARC-R31-A/103-xx/y

  • CSN serial number + MIFARE® Classic Private ID

    ARC-R31-A/PH1-xx/y

  • Secure Private ID and/or CSN serial number

    ARC-R31-A/PH5-xx/y

  • Secure Private ID and/or CSN serial number + Secure communication

    ARC-S31-A/PH5-xx/y

• SSCP Protocols
  • SSCP® v1 protocol

    ARC-W33-A/PH5-7AA/y

  • SSCP® v2 protocol

    ARC-W33-A/PH5-7AD/y

  • SSCP® v1 protocol compatible with RemoteSecure interface

    ARC-W33-A/PH5-7BB/y

  • SSCP® v1 protocol compatible with RemoteSecure addressable interface

    ARC-W33-A/PH5-7BC/y

  • SSCP® v1 protocol

    ARC-W32-A/PH5-5AA/y

• RS485
  • Secure Private ID and/or CSN serial number

    ARC-R33-A/PH5-7AB/y

  • Secure Private ID and/or CSN serial number + Secure communication

    ARC-S33-A/PH5-7AB/y

  • Secure Private ID and/or CSN serial number compatible with EasySecure interface

    ARC-R33-A/PH5-7AA/y

  • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface

    ARC-S33-A/PH5-7AA/y

  • Secure Private ID and/or CSN serial number compatible with EasyRemote interface (transparent)

    ARC-R33-A/PH5-7BB/y
