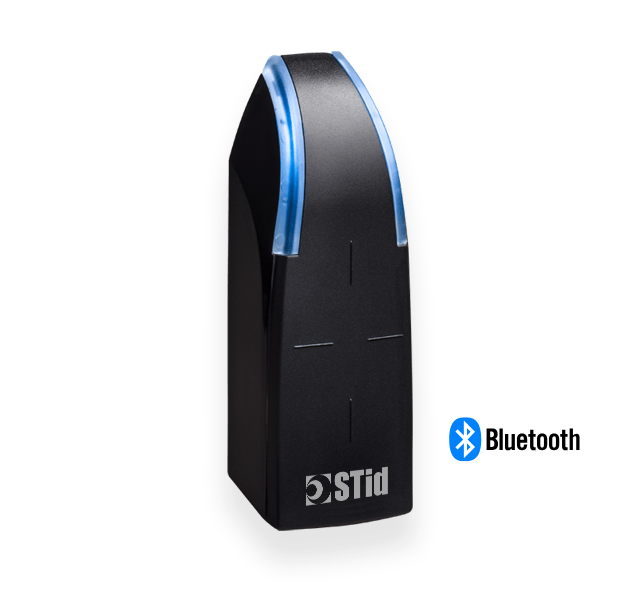

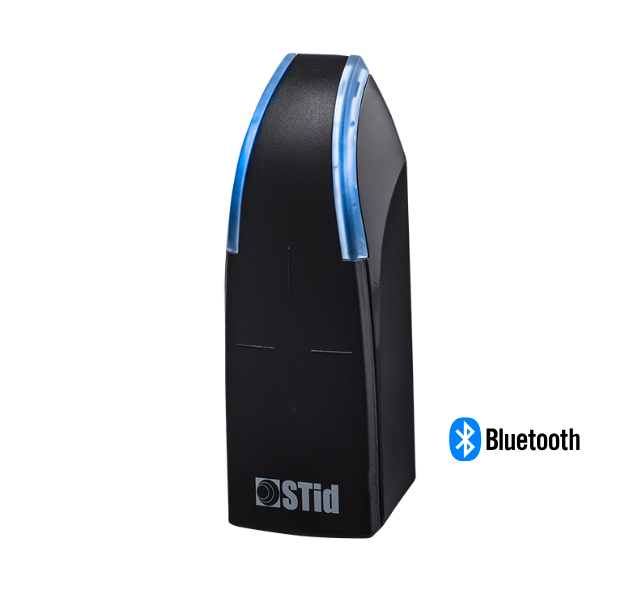

STid Architect® One Blue Mullion

Highly Versatile
The reader supports the widest range of credential technologies, including 13.56 MHz DESFire® EV3, STid Mobile ID® instinctive identification modes (Tap Tap, Remote…) via native Bluetooth® and Near Field Communication (NFC) capability. It also features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

Intuitive Identification, Better User Experience
The reader supports STid Mobile ID® user-friendly solution and offers five unique user interaction modes for intuitive contactless identification:
• Card mode: present your smartphone or wearable to the reader like a conventional access card.
• Tap Tap mode: tap tap the smartphone in your pocket to gain access.
• Remote mode: use the remote button to conveniently access car parks or other vehicle entrances.
• Hands-free mode: simply walk towards the reader without any further action.
• Voice command: use SIRI voice command on your iPhone (iOS) or Apple Watch.

Best-in-Class Security
It supports for the latest MIFARE® DESFire® EV3 contactless technologies with new data security mechanisms: “Secure Messaging” to secure the transaction and “Proximity Check” to protect against relay attacks.

Sleek Design for Easy Installation
The reader is designed to be installed in spaces requiring a small footprint: door frames, narrow electrical junction boxes, sliding doors, fast access control corridors or elevators.

• custom

  Black

  White

  Skin Effect

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Bluetooth®

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

• Frequency
  13.56 MHz + 2.4 GHz Bluetooth®
• Standard
  ISO14443 types A & B, ISO18092, Bluetooth®
• 13.56 MHz Credentials
  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
• Virtual Credential Compatibility
  STid Mobile ID® NFC & Bluetooth® cards, Apple Wallet™ Access NFC (ECP2) passes
• Keypad
  Reader_KeypadUndefined
• Reader_Antenna
  Reader_Antenna_Mullion
• Wiegand Interface
  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
• Clock & Data
  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
• RS485
  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
• SSCP Protocol
  RS485 output – Controlled by SSCP® v1 & v2 secure communication protocols
• Light Indicator
  2 RGB LEDs – 360 colors
• Data Protection
  EAL 5+ Certified Secure Element Hardware for secure key storage.
• Tamper Detection
  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
• Configurations
  Configuration by card or controlled by external command (0V)
• Operating Voltage
  9 – 15 VDC
• Operating Temperature
  -30°C / +70°Cn-22°F / +158°F
• Robustness
  IK10 Certified
• Mounting
  Compatible with any surfaces and metal walls – Wall mount/Flush mount: • European 60 & 62 mm / 2.36 & 2.44 in • American (metal/plastic) – 83.3 mm / 3.27 in – Dimensions: 101.6 x 53.8 x 57.15 mm / 3.98 x 2.09 x 2.24 in – Examples: Hubbel-Raco 674, Carlon B120A-UP
• Certifications
  UL294 Outdoor CertifiednCE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
• Resistance
  UL294 Outdoor Certified
  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%
• Current Draw
  130 mA/12 VDC max
• Dimensions & Weight
  111 x 42 x 22 mm / 4.39 x 1.66 x 0.86 in (general tolerance following ISO NFT 58-000 standard)
• Connections
  3 m / 9.8 ft cable with plug-in connector
• Housing Materials & Color
  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
• Range
  0 – 6 cm / 0 – 2.4 in with a MIFARE® DESFire® EV3 card
  0 – 20 m / 0 – 66 ft with a Bluetooth® virtual card

• RS485
  • Private ID and/or CSN serial number
    ARC1S-R33-B/BT1-7AB/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARC1S-S33-B/BT1-7AB/y
  • Secure Private ID and/or CSN serial number compatible with EasySecure interface
    ARC1S-R33-B/BT1-7AA/y
  • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface
    ARC1S-S33-B/BT1-7AA/y
• TTL (Wiegand / Clock&Data)
  • Secure & Pre-configured SimpleLine – Wiegand
    ARC1S-R31-B/PC3-3x/y
  • Secure Private ID and/or CSN serial number
    ARC1S-R31-B/BT1-xx/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARC1S-S31-B/BT1-xx/y
• SSCP Protocols
  • SSCP® v1 protocol
    ARC1S-W33-B/BT1-7AA/y
  • SSCP® v2 protocol
    ARC1S-W33-B/BT1-7AD/y
• OSDP Protocols
  • Secure Private ID and/or CSN serial number
    ARC1S-W33-B/BT1-7OS/y
