STid Architect® LEGIC® Touchscreen

An Intuitive Display Experience

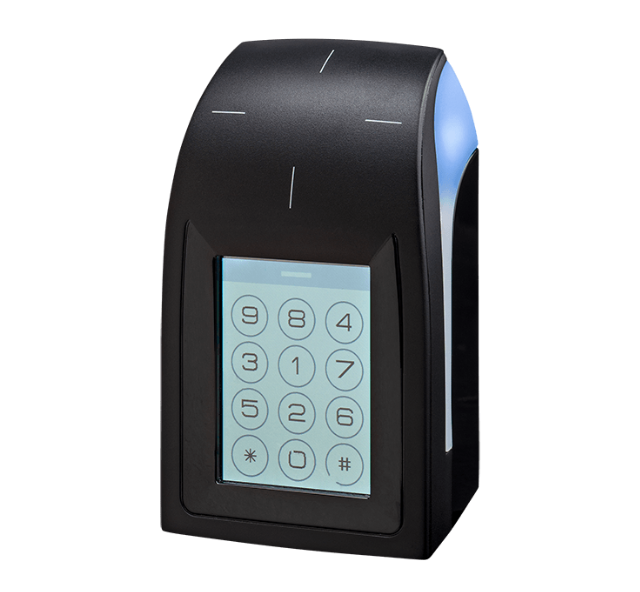

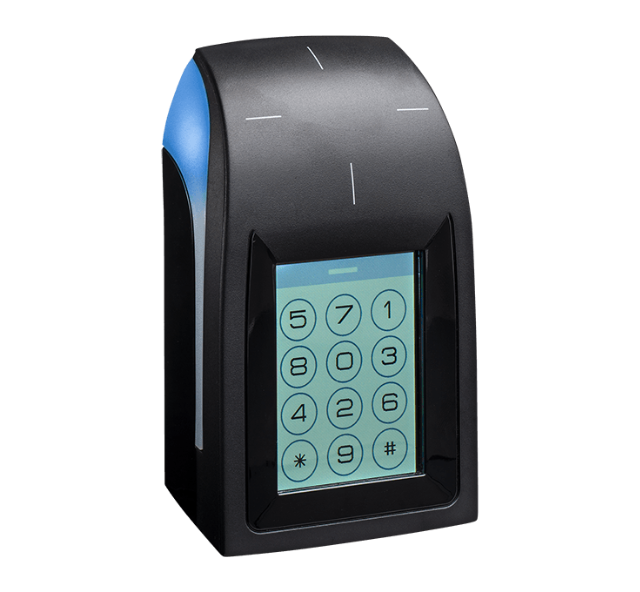

Unlock a world of possibilities with a touchscreen reader! It displays your logos, provides clear instructions, delivers personalized messages, activates a convenient doorbell button, and reveals an intuitive keypad.

Secure Scramble Pad Feature
The reader protects access against the fraudulent use of identification codes by the random display of the keys.

Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys.
Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Welcome to High Security
The reader Architect® uses the latest LEGIC® Advant contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (AES, RSA, SHA, etc.), which are recommended by official data security agencies.

• custom

  Black

  White

  Test lighting effect opting for a color

• protocols

  Wiegand

  SSCP®

• technologies

  13.56 MHz LEGIC®

• Frequency

  13.56 MHz

• Standard

  ISO14443 type A, ISO15693, LEGIC® RF

• 13.56 MHz Credentials

  LEGIC® Advant & Prime | CSN of the chips: MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, PicoPass®, iCLASS™, ICODE SLI, Inside chips

• Keypad

  Reader_KeypadUndefined

• Touchscreen

  Color Touchscreen | TFT LCD (Thin-Film-Transistor Liquid-Crystal Display) | 2.8’’ – 240 x 320 pixels | Features – Display of texts, images, and on-screen keypad

• Reader_Antenna

  Reader_Antenna_Touchscreen

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64 bits or custom

• Clock & Data

  Clock&Data 32 bits, 40 bits or custom

• RS232

  RS232 output

• RS485

  RS485 output

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface

• Configurations

  Configuration by software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -20°C / +70°Cn-4°F / +158°F

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), RoHS

• Connections

  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal

• Current Draw

  200 mA/12 VDC max

• Dimensions & Weight

  128 x 80 x 30 mm / 5.04 x 3.15 x 1.2 in (general tolerance following ISO NFT 58-000 standard)

• Range

  0 – 4 cm / 0 – 1.6 in with a LEGIC® Advant card

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%

• RS232
  • Secure Private ID and/or CSN serial number

    ARC-R32-N/LE2-5AB/y

• RS485
  • Secure Private ID and/or CSN serial number

    ARC-R33-N/LE2-7AB/y

• SSCP Protocols
  • SSCP® v1 protocol

    ARC-W33-N/LE2-7AA/y

  • SSCP® v1 protocol

    ARC-W32-N/LE2-5AA/y

• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number

    ARC-R31-N/LE2-xx/y
