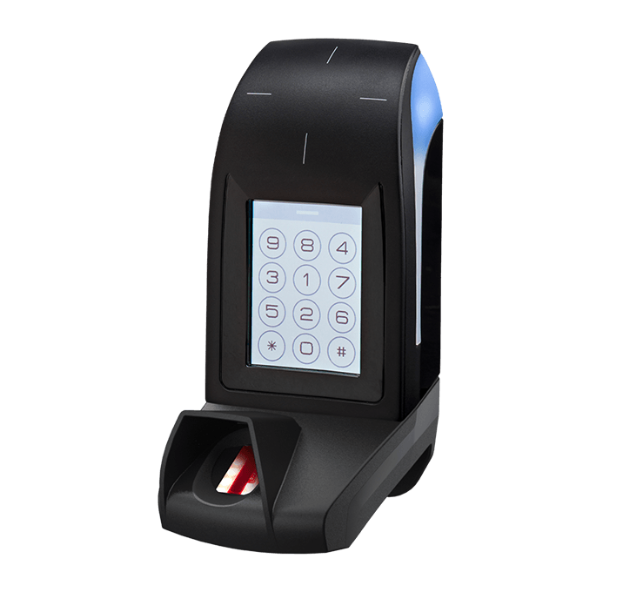

STid Architect® LEGIC® Touchscreen & Biometrics

An Intuitive Display Experience
Unlock a world of possibilities with a touchscreen reader! It displays your logos, provides clear instructions, delivers personalized messages, activates a convenient doorbell button, and reveals an intuitive keypad.

Secure Scramble Pad Feature
The reader protects access against the fraudulent use of identification codes by the random display of the keys.

Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys. Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Strong Multi-Factor Authentication
The reader combines the reading of a secure LEGIC® Advant credential with fingerprint identification and PIN entry to enhance security levels.
Fingerprints are converted into a template, meaning no image is ever saved. Templates stored on the card or server are then also encrypted and signed to guarantee the confidentiality, the origin and the integrity of the data.

• custom

  Black

  White

  Test lighting effect opting for a color

• protocols

  Wiegand

  SSCP®

• technologies

  13.56 MHz LEGIC®

• Frequency
  13.56 MHz
• Standard
  ISO14443 type A, ISO15693, LEGIC® RF
• 13.56 MHz Credentials
  LEGIC® Advant & Prime
• Keypad
  Reader_KeypadUndefined
• Touchscreen
  Color Touchscreen | TFT LCD (Thin-Film-Transistor Liquid-Crystal Display) | 2.8’’ – 240 x 320 pixels | Features – Display of texts, images, and on-screen keypad
• Reader_Antenna
  Reader_Antenna_Touchscreen
• Wiegand Interface
  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64 bits or custom
• Clock & Data
  Clock&Data 32 bits, 40 bits or custom
• RS232
  RS232 output
• RS485
  RS485 output
• Light Indicator
  2 RGB LEDs – 360 colors
• Tamper Detection
  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
• Inputs/Outputs
  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
• Configurations
  Configuration by software, or controlled by external command (0V) depending on the interface
• Operating Voltage
  7 – 28 VDC
• Operating Temperature
  -10°C / +50°Cn14°F / +122°F
• Mounting
  Wall-mounted
• Certifications
  CE (Europe), RoHS
• Current Draw
  350 mA/12 VDC max
• Resistance
  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%
• Range
  0 – 4 cm / 0 – 1.6 in with a LEGIC® Advant card
• Housing Materials & Color
  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
• Connections
  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal
• Dimensions & Weight
  166 x 80 x 71 mm / 6.54 x 3.15 x 2.80 in (general tolerance following ISO NFT 58-000 standard)

• SSCP Protocols
  • SSCP® v1 protocol

    ARC-W33-Q/LE2-7AA/y

  • SSCP® v1 protocol

    ARC-W32-Q/LE2-5AA/y

• TTL (Wiegand / Clock&Data)
  • Secure Private ID

    ARC-R31-Q/LE2-xx/y

• RS232
  • Secure Private ID

    ARC-R32-Q/LE2-5AB/y

• RS485
  • Secure Private ID

    ARC-R33-Q/LE2-7AB/y
