Waferlock D110
Calculator blat

D110 Smart Lock

D110 Smart lock is complied with Japanese mechanical mortise lock (LA & LSP).
Convenient and safe functions link with IoT gateway to make security assured at your daily intelligent life.

Get a custom quote
SKU: D110 Category: Brand:
SKU: D110
Share:

Additional information

Additional information

Access Control System

WAFERKEY
Access Solutions

App, Key Card, Mechanical Key, Passcode
Number of users

Key Card & Passcode: 1,000
Wireless Technologies

Bluetooth, MIFARE
Door thickness

33mm to 55mm
Power Source

1.5V AA Alkaline battery x 4pcs, Emergency access: 9V battery
Battery Life

Up to 1.5 years (10 openings a day, service at 20℃)
Operation Temperature

-20°C ~ 60°C
Certificates

JATE

Technical Drawing
(Unit: mm)

Technical Drawing D110

Features

High-security protection
  • One-touch to unlock the door from indoor.
  • Automatic Locking: When your door is closed and locks it automatically, keeping your home secure when you’re in a hurry.
  • Withstands any season: Works in temperatures ranging from -20°C to 60°C.
  • Concealed fixing screws for greater security and improved aesthetics.
Easy operation and Stylish design
  • An easy-to-use electronic locking platform.
  • Perfectly fit to existing mechanical mortises without damaging the door openings.
  • Large storage capacity: It can accommodate up to 1,000 users.
Long battery life
  • Up to 1.5 years (10 openings a day, service at 20℃).
  • Acoustic low power warning: Never worry about out of battery power and lock outside.
  • Emergency supply power: If the smart lock runs out of power before you have had the chance to replace batteries, it simply uses a 9V battery for emergency access.
  • Power-saving design: The smart lock’s circuits wake up only when it is used.

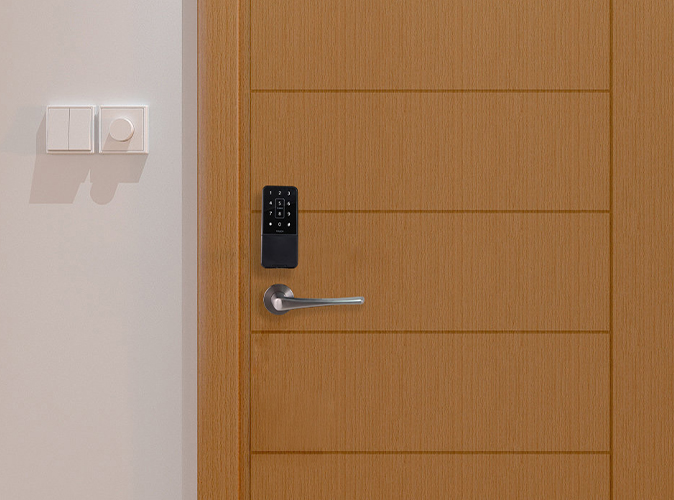

Compliance with Japanese Mechanical Lock

Compliance with Japanese Mechanical Lock

Considering the specifications of the Japanese mechanical mortise lock, D110 smart electronic lock is fully complied with LA and LSP mortise lock. The installation can be completed in a short time without damaging the existing door openings and keeping the original mechanical mortise.

My Own Style – 4 in 1 Lock

Convenient access solutions are suitable for all ages and various unlocking situations. D110 has the 4 unlocking access solutions including Passcode, Card, App and a mechanical key is also attached, which can be used as the last option in an emergency situation.

My Own Style - 4 in 1 Lock
DIY Installation

DIY Installation

Just prepare a screwdriver and follow the simplified installation guide. The installation can be done within few minutes, and no professional service is required. Saving more in extra service charges!

WAFERKEY App

WAFERKEY is a user-friendly and a high security platform for remote access control of mobile phones. This app also supports flexible access management including recurring, temporary, and one-time access by assigning special privileges to friends, or family members. You are able to share access at any given time, anywhere, and keep track of your lock history.

WAFERKEY App

Applicable Industries

Commercial

Offices / Commercial Buildings

Access control requirement at all areas in side the buildings can be fulfilled.
WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.

Hospitality

Combination of Technology and Aesthetics

Not only electronic door locks but also a design element.
WAFERLOCK is offering several types of systems for different scales of hotels, and all systems support PMS integration.

Education

High Secure and Intelligent

The systems could be applied for dormitories, classrooms, lockers, equipment and public areas.
The integration possibilities allow third party software to control or monitor all the devices. In order to provide a convenient and secure environment for school staffs and students.

Retail

Stores｜Logistics

All scales of stores and simplify the manpower.
WAFERLOCK is offering several types of systems for different scales of stores, and the centralized systems could help the supervisors control the access and monitor the audit trail.

Healthcare

Combination of Technology and Privacy

From home care up to hospitals, the solutions could meet different requirements and standards.
Contactless systems such as face recognition are also available, and the biometric data is stored separately to protect users’ privacy.

Government

High Secure and Intelligent

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Transportation

Stations｜Transport Infrastructure

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Coworking Space

Share Living Space｜Combination of Security and Simplicity

Want to reduce the fixed costs or need a small space but safe?
WAFERLOCK’s software is solving the needs of business beginners, self-employed people, or short-term contractors.
The working space is more flexible for individual or multiple enterprise.

Bed and Breakfast

A House or Apartment｜Easily Control

The system could handle the access of unexpected guests or regular house keepers.
Easily controlling the door access becomes simple clicks. It could reduce the operation costs and provide time saving.
The owners never worry the long distance issues.

Residential

Living Houses / Smart Communities

The solutions could be applied for All scales of residence project as simple as an individual unit or complex as a whole community.
With high secure access control system, water and dust proof hardware, and centralized monitoring system.

WAFERLOCK

Acces Control Solutions For Your Business

Upgrade your security with WAFERLOCK’s cutting-edge smart locks, cylinders, and padlocks.

LiveAM

Cloud-Based Online System

SBA

Data On Card + API

HPMS

Hotel Locking System

WAFERKEY

App For Small Business

Fill in the form and get a custom quote for D110 Smart Lock
