L396 Fingerprint Smart Lock

L396 inherits all the advantages of previous generations of smart electronic locks, and the new development brings more convenient and safer functions to meet the various needs of daily intelligent life, such as multiple unlocking solutions and top security technology.

Get a custom quote

SKU: L396 Category: Smart Lock Brand: WAFERLOCK

SKU: L396

Additional information

Access Control System	WAFERKEY
Access Solutions	App, Fingerprint, Key Card, Mechanical Key, Passcode
Number of users	Fingerprint: 50, Key Card & Passcode: 2000
Wireless Technologies	Bluetooth (option), MIFARE
Door thickness	40mm to 100mm
Power Source	CR123A lithium battery x 2pcs, Emergency access: 9V Alkaline battery, Indoor power supply: 12V
Battery Life	Up to 1.5 years (10 openings a day, service at 20℃)
Operation Temperature	-20°C ~ 60°C
Protection Class	IP54
Certificates	EI60, NCC
Color	Matte Black

Technical Drawing
(Unit: mm)

Features

High-security protection

Achieve the CNS60A certification from Taiwan and provide fire-proof lock protection for your property.
Capable to activate the alarm system to prevent attempts to open the door with mechanical keys or force.
Automatic Locking: When your door is closed and locks it automatically, keeping your home secure when you’re in a hurry.
Withstands any season: Works in temperatures ranging from -20°C to 60°C.
Concealed fixing screws for greater security and improved aesthetics.

Easy operation and Stylish design

The lock face plate is integrally cast with Zinc Alloy to enhance the durability of daily use.
3-layers electroplating process combines the fashion and subdued black satin finishing fits to all kinds of latest front doors.
Voice Indication: Three versions in English, Chinese, and Mute notify user locking status at any time.
Panic exit: Can always open the door with one push-down handle from inside.
Large storage capacity: It can accommodate up to 2,000 users.

Long battery life

Up to 1.5 years (10 openings a day, service at 20℃).
Acoustic low power warning: Never worry about out of battery power and lock outside.
Emergency supply power: If the smart lock runs out of power before you have had the chance to replace batteries, it simply uses a 9V Alkaline battery for emergency access.
Power-saving design: The smart lock’s circuits wake up only when it is used.

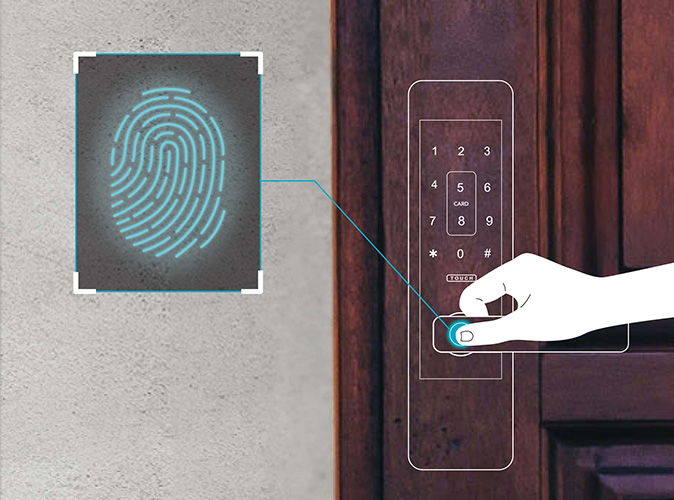

Unlock with One Finger

The 3D biometric fingerprint chip provides a high security environment, and it makes security assured at your fingers. Fingerprint sensor is also integrated into the handle, and the high identification rate can recognize your fingerprint in just 0.3 seconds. Touch the sensor to unlock the door in a tiny gap.

My Own Style – 5 in 1 Lock

Convenient access solutions are suitable for all ages and various unlocking situations.
L396 has the 5 unlocking access solutions including Fingerprint, Passcode, Card, App, and a mechanical keys are also attached, which can be used as the last option in an emergency situation. The keyhole is hidden inside the lock with a sliding cover design to maintain a gorgeous appearance.

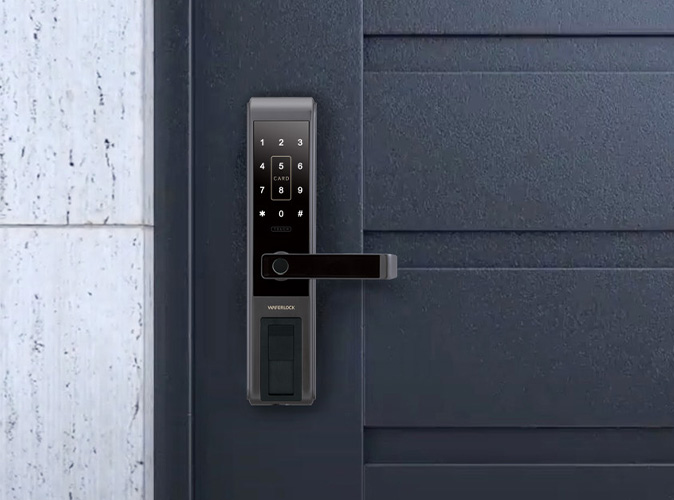

Practicality and Elegance

For better protection for your life and property, the whole parts of L376 have achieved the fire-proof certification in Taiwan. The panel is integrally cast with Zinc Alloy to enhance the durability of daily use. 3-layers electroplating process combines the fashion and subdued black satin finishing for all design styles front doors. Ergonomic design, it is easy for you to unlock the door.

WAFERKEY App

WAFERKEY is a user-friendly and a high security platform for remote access control of mobile phones. This app also supports flexible access management including recurring, temporary, and one-time access by assigning special privileges to friends, or family members. You are able to share access at any given time, anywhere, and keep track of your lock history.

Applicable Industries

Commercial

Offices / Commercial Buildings

Access control requirement at all areas in side the buildings can be fulfilled.
WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.

Hospitality

Combination of Technology and Aesthetics

Not only electronic door locks but also a design element.
WAFERLOCK is offering several types of systems for different scales of hotels, and all systems support PMS integration.

Education

High Secure and Intelligent

The systems could be applied for dormitories, classrooms, lockers, equipment and public areas.
The integration possibilities allow third party software to control or monitor all the devices. In order to provide a convenient and secure environment for school staffs and students.

Retail

Stores｜Logistics

All scales of stores and simplify the manpower.
WAFERLOCK is offering several types of systems for different scales of stores, and the centralized systems could help the supervisors control the access and monitor the audit trail.

Healthcare

Combination of Technology and Privacy

From home care up to hospitals, the solutions could meet different requirements and standards.
Contactless systems such as face recognition are also available, and the biometric data is stored separately to protect users’ privacy.

Government

High Secure and Intelligent

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Transportation

Stations｜Transport Infrastructure

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Coworking Space

Share Living Space｜Combination of Security and Simplicity

Want to reduce the fixed costs or need a small space but safe?
WAFERLOCK’s software is solving the needs of business beginners, self-employed people, or short-term contractors.
The working space is more flexible for individual or multiple enterprise.

Bed and Breakfast

A House or Apartment｜Easily Control

The system could handle the access of unexpected guests or regular house keepers.
Easily controlling the door access becomes simple clicks. It could reduce the operation costs and provide time saving.
The owners never worry the long distance issues.

Residential

Living Houses / Smart Communities

The solutions could be applied for All scales of residence project as simple as an individual unit or complex as a whole community.
With high secure access control system, water and dust proof hardware, and centralized monitoring system.
