L346 Smart Lock

A chic way to secure your daily life.
L346 comes with a simple, sleek but durable design. The lock is absolutely one of professional solutions for you to make your life more convenient, comfortable, and smarter.

Get a custom quote

SKU: L346 Category: Smart Lock Brand: WAFERLOCK

SKU: L346

Additional information

Access Control System	LiveAM, WAFERKEY
Color	Matt Silver
Access Solutions	App (optional), Key Card, Mechanical Key, Passcode
Number of users	Key Card: 90
Wireless Technologies	Bluetooth (option), MIFARE
Door thickness	40~80mm
Power Source	CR2 lithium battery x 1pc, Emergency backup: 9V battery
Battery Life	Up to 1.5 years (10 openings a day, service at 20℃)
Operation Temperature	-20°C ~ 60°C
Certificates	EI60

Technical Drawing
(Unit: mm)

Features

High-security protection

Capable to activate the alarm system to prevent attempts to open the door with mechanical keys or force.
Unlock from inside anytime.
Automatic Locking: When your door is closed and locks it automatically, keeping your home secure when you’re in a hurry.
Withstands any season: Works in temperatures ranging from -20°C to 60°C.
Concealed fixing screws for greater security and improved aesthetics.

Easy operation and Stylish design

The fashion design fits to all kinds of latest front doors.
The keyhole is designed and covered under a lens-cover cap, maintaining a sleek appearance with better safety.
Two-color LED (green/red) indicates lock status clearly.
Panic exit: Can always open the door with one push-down handle from inside.

Long battery life

Number of openings: Up to 30,000.
Acoustic low power warning: Never worry about out of battery and lock outside.
Emergency supply power: If the smart lock runs out of power before you have had the chance to replace batteries, it simply uses a 9V battery for emergency access.
Power-saving design: The smart lock’s circuits wake up only when it is used.

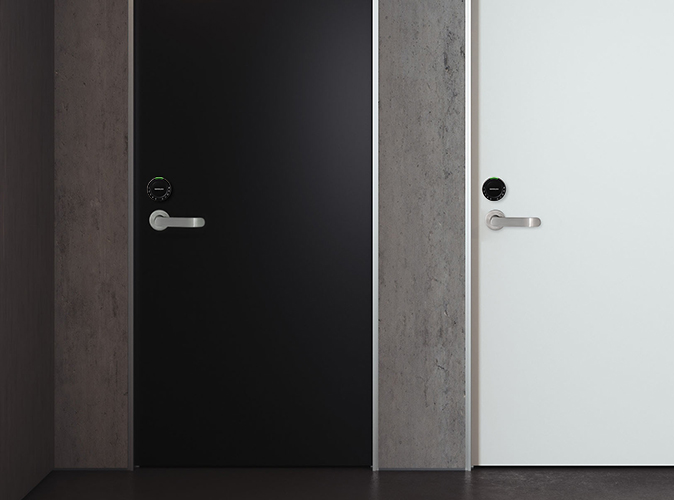

Practicality and Elegance

Adopted with a detachable and simple design, the appearance of L346 is fashionable and elegant, and is suitable for being placed on different styles of doors. Besides, L346 eliminates lock hardware on the door by encasing all mechanical and electronic components inside the door itself, making security virtually invisible but practical.

Define unlocking styles

You can access your house easily and remotely via the passcode, key card, or App. More than that, the original mechanical key is still available. The keyhole is designed and covered under a lens-cover cap, which not only maintains a beautiful appearance, but also prevents outsiders from unreasonably destroying it.

Safety comes first

In order to protect your safety and property, the whole parts of L346 have achieved the fire-proof certification in Taiwan. With an ergonomic design, it is comfortable for any ages to unlock the door day by day. When the alarm system is activated, it will be triggered when the door is opened by mechanical keys or force, preventing unwanted invasion effectively.

Grade 1 Mortise Lock

Revolutionary mortise design embedded with 4 sensors detecting different door status to provide highly-security performance for your property. Moreover, don’t worry about its durability since it achieves the UL and US ANSI Grade certification from Taiwan.

Applicable Industries

Commercial

Offices / Commercial Buildings

Access control requirement at all areas in side the buildings can be fulfilled.
WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.

Hospitality

Combination of Technology and Aesthetics

Not only electronic door locks but also a design element.
WAFERLOCK is offering several types of systems for different scales of hotels, and all systems support PMS integration.

Education

High Secure and Intelligent

The systems could be applied for dormitories, classrooms, lockers, equipment and public areas.
The integration possibilities allow third party software to control or monitor all the devices. In order to provide a convenient and secure environment for school staffs and students.

Retail

Stores｜Logistics

All scales of stores and simplify the manpower.
WAFERLOCK is offering several types of systems for different scales of stores, and the centralized systems could help the supervisors control the access and monitor the audit trail.

Healthcare

Combination of Technology and Privacy

From home care up to hospitals, the solutions could meet different requirements and standards.
Contactless systems such as face recognition are also available, and the biometric data is stored separately to protect users’ privacy.

Government

High Secure and Intelligent

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Transportation

Stations｜Transport Infrastructure

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Coworking Space

Share Living Space｜Combination of Security and Simplicity

Want to reduce the fixed costs or need a small space but safe?
WAFERLOCK’s software is solving the needs of business beginners, self-employed people, or short-term contractors.
The working space is more flexible for individual or multiple enterprise.

Bed and Breakfast

A House or Apartment｜Easily Control

The system could handle the access of unexpected guests or regular house keepers.
Easily controlling the door access becomes simple clicks. It could reduce the operation costs and provide time saving.
The owners never worry the long distance issues.

Residential

Living Houses / Smart Communities

The solutions could be applied for All scales of residence project as simple as an individual unit or complex as a whole community.
With high secure access control system, water and dust proof hardware, and centralized monitoring system.
