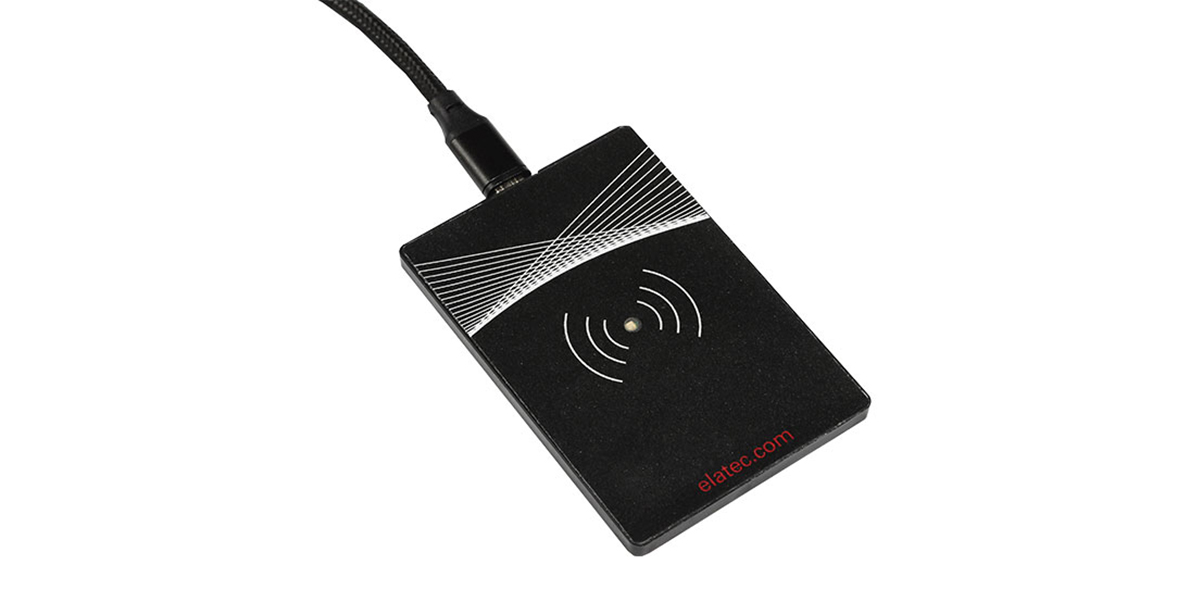

Elatec® TWN4 Slim

TWN4 Slim is ideal for installation in computers and devices, especially MFP printers with optional clip-on snap-in covers.

Category: Brand:
SKU:
Share:

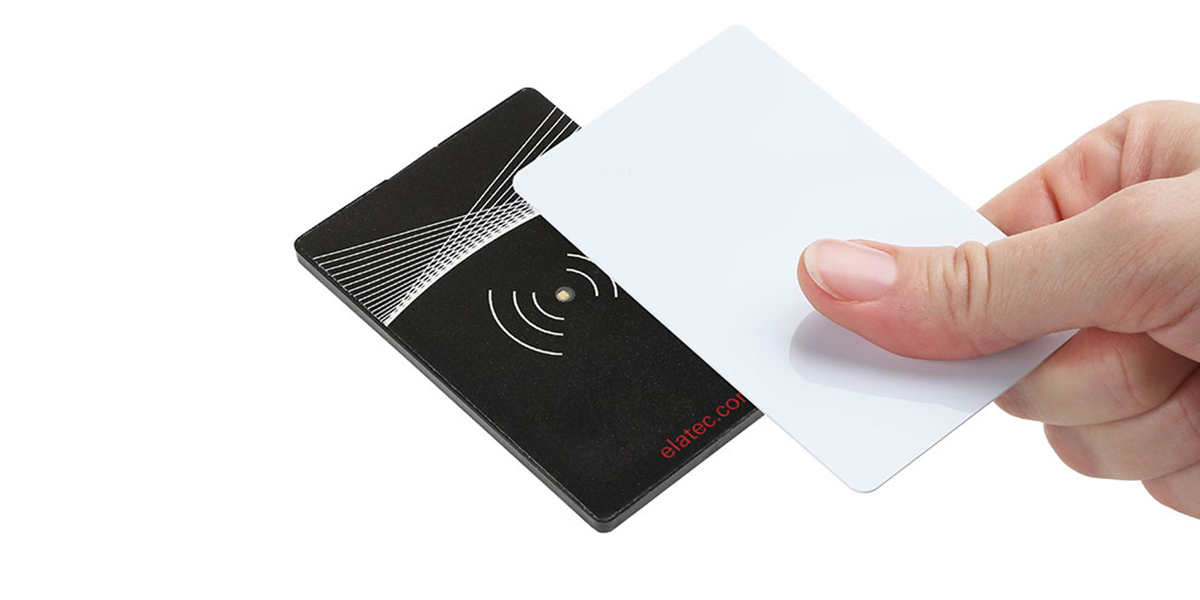

TWN4 Slim supports all common standards for LF and HF technologies (125 kHz and 13.56 MHz). Smartphone identity solutions such as NFC and Bluetooth ® Low Energy (BLE) are also integrated so they can be used for mobile applications in data communication and authentication. It can be used as a standalone unit connected to a PC or other devices with a USB interface using a cable with a micro-USB interface.

  • Extremely compact device
  • Ideal for limited space
  • 60+ RFID Technologies supported: LF, HF, NFC and smart cards

  • Standalone operation and flush-mount integration into printers and other industrial applications
  • Integrated LF and HF antennas
  • Integrated BLE module 2.4 GHz for data communication and authentication, BLE v4.2, upgradable
  • Flexible cable with standard micro-USB connector, many protocols, including CCID and PC/SC 2.01
  • One socket for Secure Access Modules (SAM) cards, ID-000 form factor

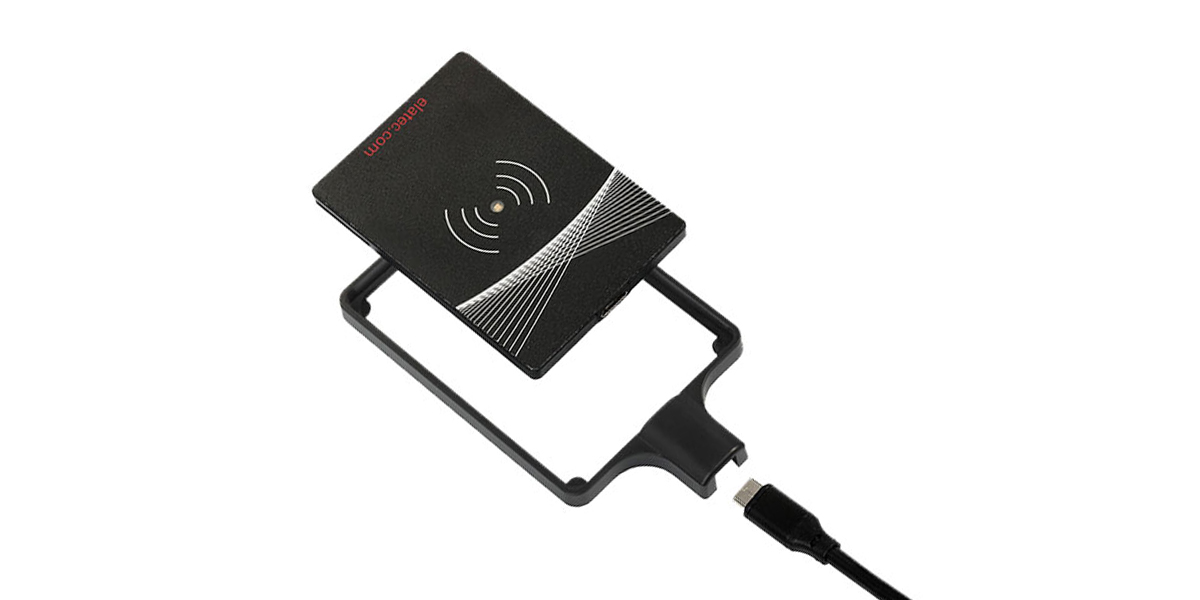

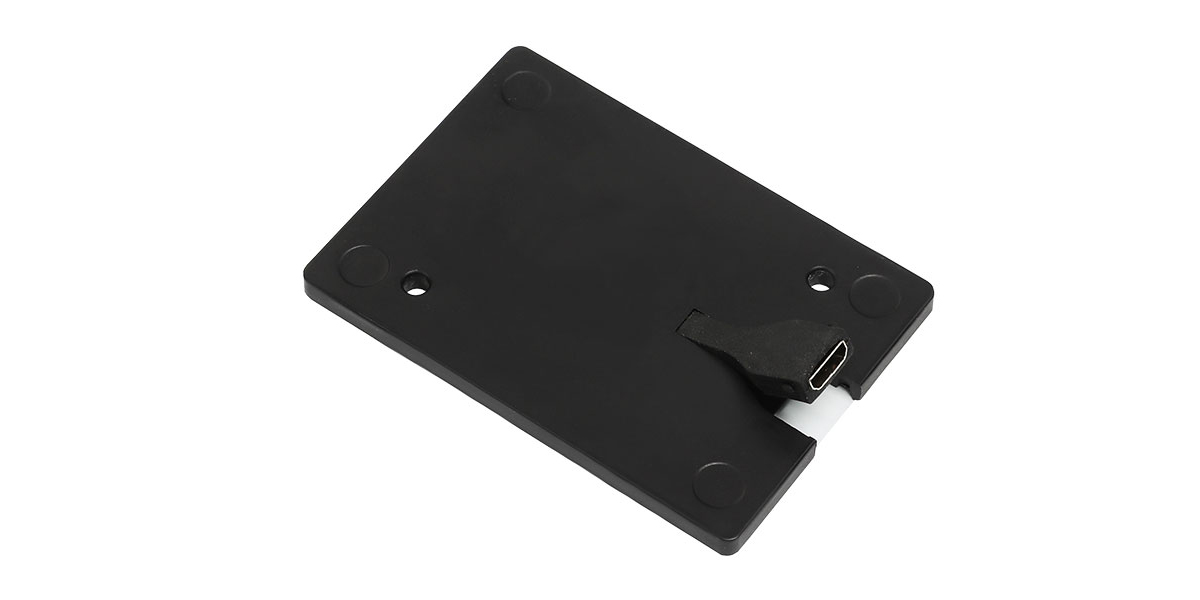

  • Optional mounting holes for easy and fast installation
  • Supports fast (re)configuration over network and over wireless interface with TWN4 CONFIG Card
  • TWN4 Upgrade Card for P and PI options available on request
  • Powerful SDK for writing apps which are executed directly on the reader
  • Onboard 18 kB flash storage, e.g. for storing user accessible non-volatile data
  • Direct chip-commands support
  • Customizable design inlay
  • 3D construction data (STEP) on request

With optimized printing processes for the future

Secure printing for enhanced data protection and convenience.

Whether your company prints a lot or a little, an authentication solution for secure printing ensures security during output, smooth processes and cost transparency.



Secure Single Sign-On Solutions

Future-Proofing Data Security

A single sign-on (SSO) solution saves time and effort. Secure authentication gives authorized users instant access to different systems and files while protecting sensitive data.



Collaborative Machine Authentication for Modern Industries

How humans and machines work together

Dive into the pivotal role of machine-human collaboration. Unlock IIoT safety, embrace efficient RFID & NFC tech, and stay ahead.

Current Software

Request the latest TWN4 DevPack or download the factory default version of your product.

Part numbers

T4QC-FC3B7
T4QC-FC3B7-P
T4QC-FC3B7-PI
