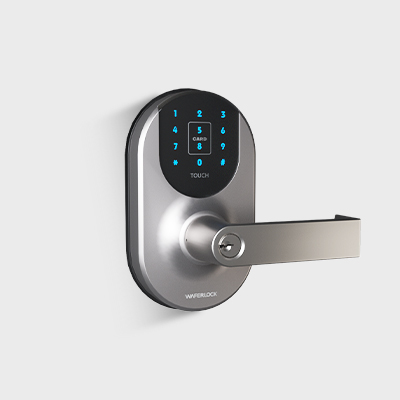

L310 Smart Lock

The Smart Lock, L310, comes with multiple functions with the latest IoT technologies. It is durable and sturdy with simple installation. The lock is absolutely one of professional solutions for you to make your life more convenient, secure, and smarter.

Get a custom quote

SKU: L310 Category: Smart Lock Brand: WAFERLOCK

SKU: L310

Additional information

Access Control System	LiveAM, WAFERKEY
Color	Matt Silver
Handle	Return to door rounded, Return to door straight, Straight
Access Solutions	App, Key Card, Mechanical Key, Passcode
Number of users	Key Card & Passcode: 2000
Wireless Technologies	Bluetooth (option), MIFARE
Door thickness	35mm to 50mm
Power Source	1.5V AAA Alkaline battery x 4pcs, Emergency access: 9V battery
Battery Life	Up to 1.5 years (10 openings a day, service at 20℃)
Operation Temperature	-20°C ~ 60°C
Protection Class	IP54
Certificates	ANSI, EI60, FCC

Technical Drawing
(Unit: mm)

Features

High-security protection

Unlock from inside anytime.
Pass UL 94C fire test and provide fire-proof lock protection for your property.
Automatic Locking: When your door is closed and locks it automatically, keeping your home secure when you’re in a hurry.
Withstands any season: Works in temperatures ranging from -20°C to 60°C.
Concealed fixing screws for greater security and improved aesthetics.

Easy operation and Stylish design

Looks great in blend into any type of door: The casing with Die-Casting Zinc Alloy and elegant Satin Nickel finish.
Emergency exits: Escaping from the room with just one push-down handle during an emergency.
Large storage capacity: It can accommodate up to 2,000 users.

Long battery life

Up to 1.5 years (10 openings a day, service at 20℃).
Acoustic low power warning: Never worry about out of battery power and lock outsides.
Emergency supply power: If the smart lock runs out of power before you have had the chance to replace batteries, it simply uses a 9V battery for emergency access.
Power-saving design: The smart lock’s circuits wake up only when it is used.

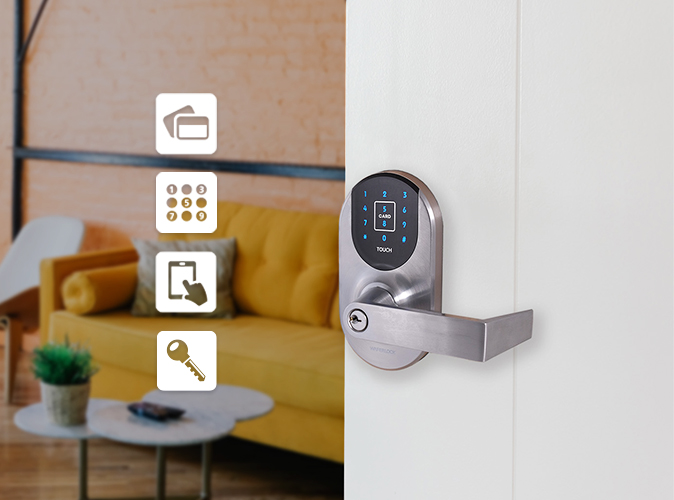

Multiple Ways to Unlock

Unlock it with your ways.

You can choose any of the 4 ways to unlock L310 smart lock. Access remotely via the WAFERKEY App, or by using key card, and passcode. More than that, the entry method of the mechanical key is a key when you need no mobile or key card. The above adds, you will never be locked out again.

Ultra Durability

The Smart Lock L310 has been designed to meet ANSI A156.2, Grade 1 standard. It protects you, your family, and your privacy with the highest industry rating for security, durability and reliability.

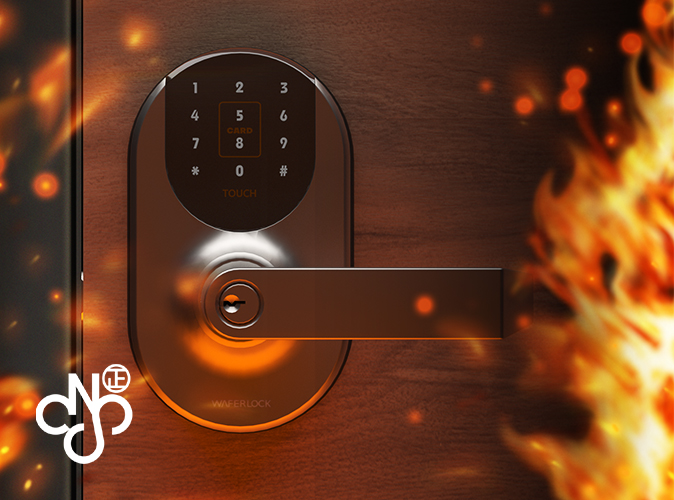

Safety Comes First

In order to protect your safety and property, the whole parts of L310 have achieved the fire-proof certification in Taiwan. With an ergonomic design, it is comfortable for any ages to unlock the door day by day.

WAFERKEY App

WAFERKEY is a user-friendly and a high security platform for remote access control of mobile phones. This app also supports flexible access management including recurring, temporary, and single occurrence by granting special privileges to friends, or family members. You are able to share access at any given time, anywhere, and keep track of your lock history.

Applicable Industries

Commercial

Offices / Commercial Buildings

Access control requirement at all areas in side the buildings can be fulfilled.
WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.

Hospitality

Combination of Technology and Aesthetics

Not only electronic door locks but also a design element.
WAFERLOCK is offering several types of systems for different scales of hotels, and all systems support PMS integration.

Education

High Secure and Intelligent

The systems could be applied for dormitories, classrooms, lockers, equipment and public areas.
The integration possibilities allow third party software to control or monitor all the devices. In order to provide a convenient and secure environment for school staffs and students.

Retail

Stores｜Logistics

All scales of stores and simplify the manpower.
WAFERLOCK is offering several types of systems for different scales of stores, and the centralized systems could help the supervisors control the access and monitor the audit trail.

Healthcare

Combination of Technology and Privacy

From home care up to hospitals, the solutions could meet different requirements and standards.
Contactless systems such as face recognition are also available, and the biometric data is stored separately to protect users’ privacy.

Government

High Secure and Intelligent

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Transportation

Stations｜Transport Infrastructure

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Coworking Space

Share Living Space｜Combination of Security and Simplicity

Want to reduce the fixed costs or need a small space but safe?
WAFERLOCK’s software is solving the needs of business beginners, self-employed people, or short-term contractors.
The working space is more flexible for individual or multiple enterprise.

Bed and Breakfast

A House or Apartment｜Easily Control

The system could handle the access of unexpected guests or regular house keepers.
Easily controlling the door access becomes simple clicks. It could reduce the operation costs and provide time saving.
The owners never worry the long distance issues.

Residential

Living Houses / Smart Communities

The solutions could be applied for All scales of residence project as simple as an individual unit or complex as a whole community.
With high secure access control system, water and dust proof hardware, and centralized monitoring system.
