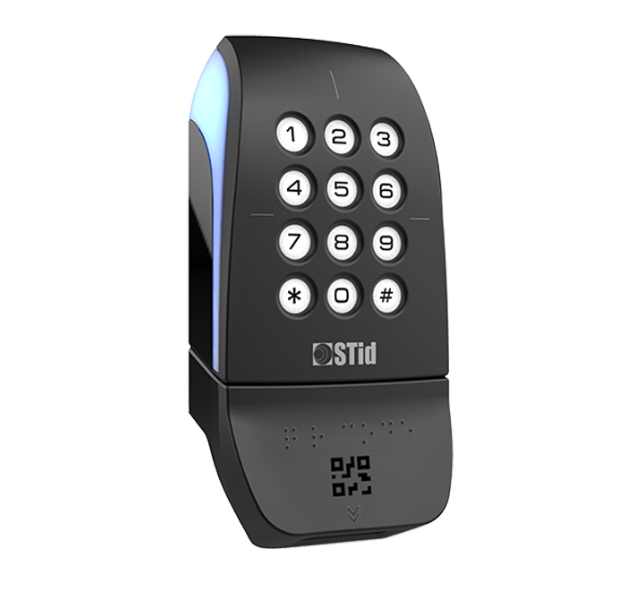

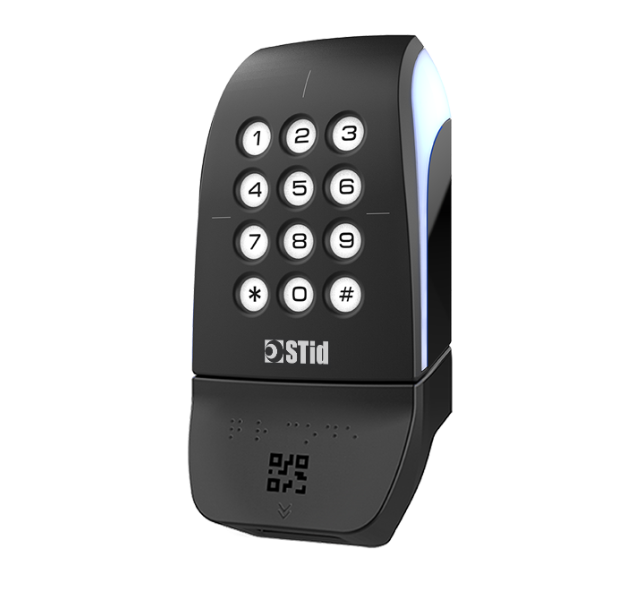

STid Architect® Keypad & QR Code

Best-in-Class Security
It supports for the latest MIFARE® DESFire® EV3 contactless technologies with new data security mechanisms: “Secure Messaging” to secure the transaction and “Proximity Check” to protect against relay attacks.

One Device, Endless Possibilities
Unlock a world of convenience with our all-in-one reader, designed to effortlessly identify users with a wide range of profiles, from visitors and employees to tenants and drivers. Supporting multiple identification technologies – QR codes, MIFARE® DESFire® EV3 and Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet – it ensures a secure and versatile access control solution.

Reliable Performance in All Conditions
No matter the conditions, our IK08-certified reader is your go-to choice. From bright environments to reflections, indoor to outdoor use, it offers easy and reliable detection, day or night.

Multi-Functional Keypad
The keypad can be used for identification or to activate additional functions (alarm…).
The same reader can also operate in multiple mode. It authorizes, for example, the reading of cards for personnel or the entry of codes for visitors or temporary workers.

• custom

  Black

  White

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

• Frequency

  13.56 MHz

• Standard

  ISO14443 types A & B, ISO18092

• 13.56 MHz Credentials

  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)

• Virtual Credential Compatibility

  STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes

• 1D/2D Code Compatibility

  QR Code (versions 1, 2 & 3), Micro QR Code, code 128, Aztec, Data Matrix

• Keypad

  Reader_KeypadSensitiveCardAndKey

• Reader_Antenna

  Reader_Antenna_Keypad

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication

• Clock & Data

  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom

• RS232

  RS232 output

• RS485

  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)

• SSCP Protocol

  RS485 and RS232 outputs – Controlled by SSCP® v1 & v2 secure communication protocols

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface

• Configurations

  Configuration by RFID card, software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -30°C / +60°Cn-22°F / +140°F

• Robustness

  IK08 Certified

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS

• Current Draw

  290 mA/12 VDC max

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 5 – 90%

• Dimensions & Weight

  156 x 80 x 36 mm / 6.3 x 3.15 x 1.02 in (general tolerance following ISO NFT 58-000 standard)

• Range

  0 – 3 cm / 0 – 1.2 in with a QR Code
  0 – 6 cm / 0 – 2.4 in with a MIFARE® DESFire® EV3 card

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• Connections

  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal

• RS485
  • Secure Private ID and/or CSN serial number

    ARC-R33-BQ/PH5-7AB/y

  • Secure Private ID and/or CSN serial number + Secure communication

    ARC-S33-BQ/PH5-7AB/y

  • Secure Private ID and/or CSN serial number compatible with EasySecure interface

    ARC-R33-BQ/PH5-7AA/y

  • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface

    ARC-S33-BQ/PH5-7AA/y

• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number

    ARC-R31-BQ/PH5-xx/y

  • Secure Private ID and/or CSN serial number + Secure communication

    ARC-S31-BQ/PH5-xx/y

• SSCP Protocols
  • SSCP® v1 protocol

    ARC-W33-BQ/PH5-7AA/y

  • SSCP® v2 protocol

    ARC-W33-BQ/PH5-7AD/y

  • SSCP® v1 protocol

    ARC-W32-BQ/PH5-5AA/y

• OSDP Protocols
  • Secure Private ID and/or CSN serial number

    ARC-W33-BQ/PH5-7OS/y

• RS232
  • Secure Private ID and/or CSN serial number

    ARC-R32-BQ/PH5-5AB/y
