C760 Smart Cylinder

Name: Waferlock C760 - Insetis
SKU: C760

The smarter way to secure your daily life.
C760 is designed to extend electronic access control deeper into different buildings,
offers user-friendly function, multiple ways to unlock the door, and fits all types of doors seamlessly.
It is Smart, Secure, Innovative, and Easy to Install.

Get a custom quote

SKU: C760 Category: Smart Cylinder Brand: WAFERLOCK

SKU: C760

Share:

Additional information

Access Control System	LiveAM, WAFERKEY
Color	Matt Silver
Type of cylinders	Double, Half, Standard
Access Solutions	App, Combination, Key Card
Number of users	Key Card & Combination: 2,000
Wireless Technologies	Bluetooth, MIFARE, NFC (Android)
Cylinder Length	30/10mm~70/10mm (Half), 30/30-45mm~70/70-85mm (Standard), 30/30mm~70/70mm (Double)
Power Source	CR2 x 1 battery
Battery Life	Up to 2 years (10 openings a day, service at 20℃)
Operation Temperature	-20°C ~ 60°C
Protection Class	IP68
Certificates	CE, EI60, EN15684, IP68

Technical Drawing
(Unit: mm)

Features

High-security protection

Achieve EN15684 certification and provide Anti-Drill, Anti-Bump, Anti-Snap lock protection for your property.
The lock can always be opened from the inside.
Withstands any season: Works in temperatures ranging from -20°C to 60°C.

Easy operation and retrofitting

It universally compatible cylinder that replaces your existing cylinder and fits any door with unlimited models options.
An easy-to-use electronic locking platform.
It is designed to adjust the cylinder length for the internal side.
Turntable combination: Rotate the knob with the numbers to set up a 4-6 digit combination.
Simple installation by changing the cylinder. No wiring or drilling work required.
Large storage capacity: It can accommodate up to 2000 users for key card recognition.

Long battery life

Up to 2 years (10 openings a day, service at 20℃).
Acoustic low power warning: Never worry about out of battery and lock outside.

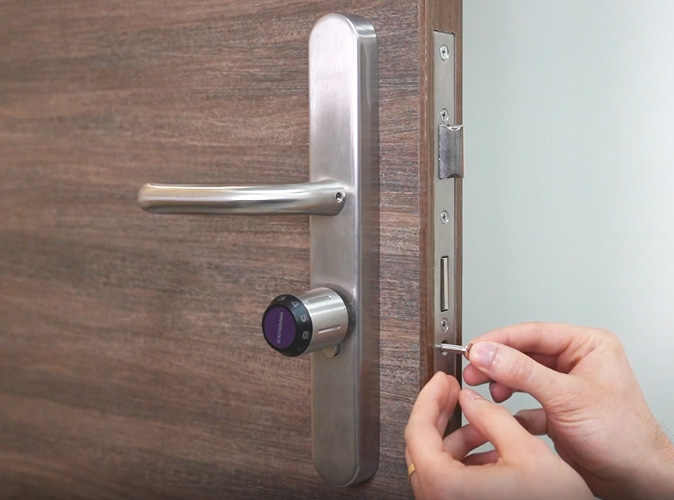

Easily retrofit most Euro profile doors

Even you are new to DIY, simple installation is possible on any type of door, including those with narrow frames.
Within minutes you can swap out your mechanical lock for C760 smart cylinder. All you need for installation is a Philips screwdriver, in about 5 minutes that you can install a smart cylinder for your home and office.

Multiple ways to unlock

Unlock it with your way.
You can choose any of the 3 ways to unlock C760 smart cylinder. Access remotely via the WAFERKEY App, or by using the key card. More than that, the entry method of combination is a virtual key on your mind needs no mobile or key card. You will never be locked out again from forgetting the mechanical key

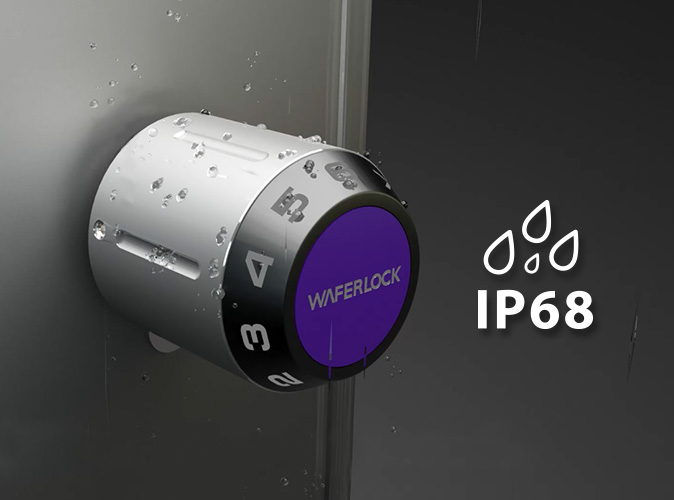

Protected against harsh environments

IP68 water resistance and dust protection for critical environments and extreme climates. C760 is built with durability in mind and can effectively withstand harsh conditions. This way, users can rest assured that their smart keys will work normally no matter how tough the surroundings get.

Ultimate protection

Robust and durable. The Cylinder provides anti-theft protection that is tested and approved by EN15684 certification. Built to withstand prevent the opening or breaking of the lock by force. The C760 is a cylinder you can rely on when you are out of home or office.

Applicable Industries

Commercial

Offices / Commercial Buildings

Access control requirement at all areas in side the buildings can be fulfilled.
WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.

Hospitality

Combination of Technology and Aesthetics

Not only electronic door locks but also a design element.
WAFERLOCK is offering several types of systems for different scales of hotels, and all systems support PMS integration.

Education

High Secure and Intelligent

The systems could be applied for dormitories, classrooms, lockers, equipment and public areas.
The integration possibilities allow third party software to control or monitor all the devices. In order to provide a convenient and secure environment for school staffs and students.

Retail

Stores｜Logistics

All scales of stores and simplify the manpower.
WAFERLOCK is offering several types of systems for different scales of stores, and the centralized systems could help the supervisors control the access and monitor the audit trail.

Healthcare

Combination of Technology and Privacy

From home care up to hospitals, the solutions could meet different requirements and standards.
Contactless systems such as face recognition are also available, and the biometric data is stored separately to protect users’ privacy.

Government

High Secure and Intelligent

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Transportation

Stations｜Transport Infrastructure

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Coworking Space

Share Living Space｜Combination of Security and Simplicity

Want to reduce the fixed costs or need a small space but safe?
WAFERLOCK’s software is solving the needs of business beginners, self-employed people, or short-term contractors.
The working space is more flexible for individual or multiple enterprise.

Bed and Breakfast

A House or Apartment｜Easily Control

The system could handle the access of unexpected guests or regular house keepers.
Easily controlling the door access becomes simple clicks. It could reduce the operation costs and provide time saving.
The owners never worry the long distance issues.

Residential

Living Houses / Smart Communities

The solutions could be applied for All scales of residence project as simple as an individual unit or complex as a whole community.
With high secure access control system, water and dust proof hardware, and centralized monitoring system.
