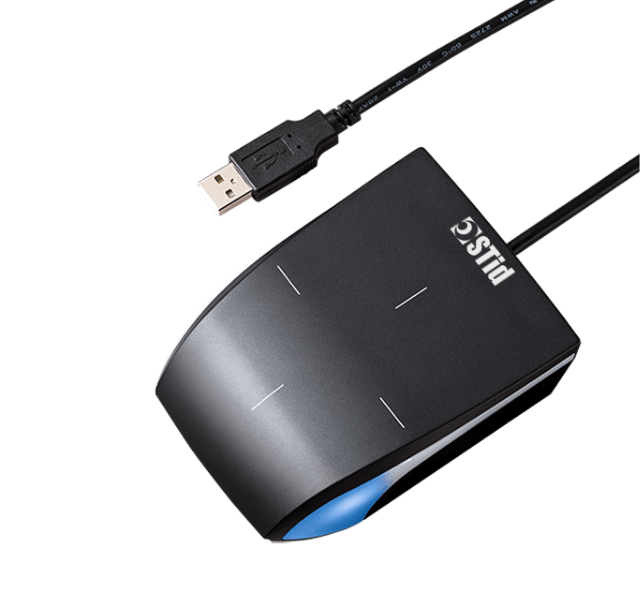

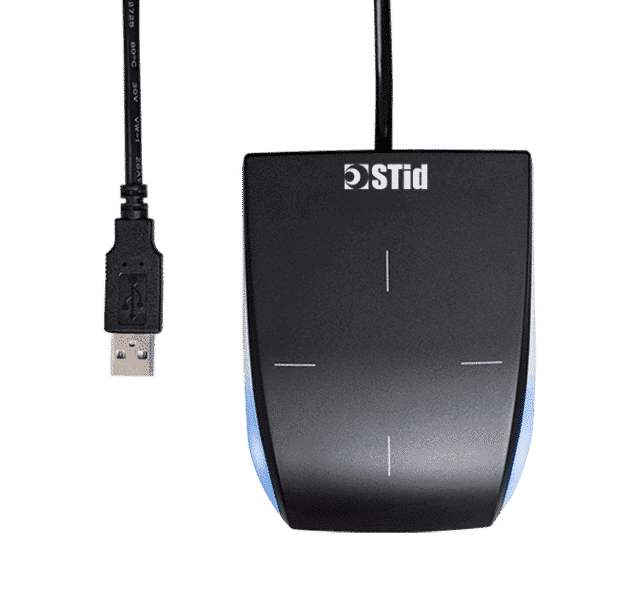

STid Architect® Enroller

13.56 MHz DESFire® EV3 Desktop Reader & Enroller with Keyboard Emulation

Effortlessly integrate your multi-technology reader with computers, printers, or other business systems. Compact and ergonomic, this reader operates in keyboard emulation mode (WEDGE), offering universal compatibility without requiring driver installation. Supporting 13.56 MHz MIFARE® DESFire® EV3 contactless technologies, it meets the demands of secure and modern environments with reliability and ease.

Category: Brand:
SKU:
Share:

Key features

Advanced Security Features
Equipped with the latest MIFARE® DESFire® EV3 technologies, the reader provides top-tier data protection through advanced security mechanisms like Secure Messaging EV2, which prevents interleaving and replay attacks, and Proximity Check, which defends against relay attacks. Public cryptographic algorithms such as AES and RSA ensure compliance with high-security standards endorsed by ANSSI and FIPS.

Standing the Test of Time
The desktop reader stands out as the most robust solution in its category, featuring an IK10-certified vandal-resistant structure designed to withstand severe impacts and tampering. Engineered for resilience, it operates reliably under challenging conditions, including exposure to vibrations, dust, water, and oils, ensuring consistent performance in demanding environments.

Keyboard Emulation: Optimal Flexibility and Adaptability
The keyboard emulation interface enables users to easily capture and transfer credential data, whether RFID or virtual, to any application by simulating a sequence of keystrokes. This feature eliminates the need for manual data entry, increasing efficiency and reducing the risk of human error.
Data structures and output formats are fully customizable to suit specific needs: configuration of keyboard layouts (AZERTY or QWERTY), key mappings, timings, and more.
This technology ensures seamless integration into various environments, adapting to technical and operational constraints while providing an optimal user experience.

Technical Data

  • technologies

    Apple Wallet™

    13.56 MHz MIFARE® DESFire® EV3

  • Frequency

    13.56 MHz

  • Standard

    ISO14443 types A & B, ISO18092

  • 13.56 MHz Credentials

    MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)

  • Virtual Credential Compatibility

    STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes

  • Keypad

    Reader_KeypadUndefined

  • Reader_Antenna

    Reader_Antenna_0

  • Light Indicator

    2 RGB LEDs – 360 colors

  • Configurations

    Configuration by RFID card or software

  • Operating Temperature

    -30°C / +70°Cn-22°F / +158°F

  • Robustness

    IK10 Certified

  • Mounting

    Non-slip pads

  • Certifications

    CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS

  • Housing Materials & Color

    ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

  • Connections

    1.5 m / 5 ft USB cable

  • Resistance

    IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%

  • Dimensions & Weight

    107 x 80 x 26 mm / 4.2 x 3.1 x 1 in (general tolerance following ISO NFT 58-000 standard)

  • Range

    0 – 8 cm / 0 – 3.1 in with a MIFARE® DESFire® EV3 card

Part Numbers

  • Keyboard Emulation
    • AZERTY

      ARC-R35-H/PH5-5AB/1

    • QWERTY

      ARC-R35-H/PH5-5AQ/1

    • Custom configuration

      ARC-R35-H/PH5-XX/1
