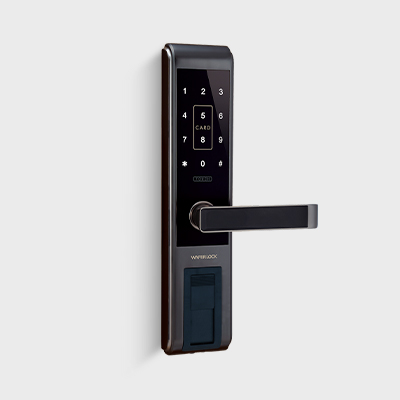

L376 Smart Lock

Name: Waferlock L376 - Insetis
SKU: L376

Are you looking for a smart lock with stylish design and high security technologies to unlock your door via multiple ways? Here it is! L376 is just the right one with the latest IoT technologies for you to experience the smart life.

Get a custom quote

SKU: L376 Category: Smart Lock Brand: WAFERLOCK

SKU: L376

Share:

Additional information

Access Control System	WAFERKEY
Access Solutions	App, Key Card, Mechanical Key, Passcode
Color	Matte Black
Number of users	Key Card & Passcode: 2000
Wireless Technologies	Bluetooth (option), MIFARE
Door thickness	40mm to 100mm
Power Source	CR123A lithium battery x 2pcs, Emergency access: 9V battery, Indoor power supply: 12V
Battery Life	Up to 1.5 years (10 openings a day, service at 20℃)
Operation Temperature	-20°C ~ 60°C
Protection Class	IP54
Certificates	CNS, EI60, NCC

Technical Drawing
(Unit: mm)

Features

High-security protection

Achieve the CNS60A certification from Taiwan and provide fire-proof lock protection for your property.
Unlock from inside at all time.
Capable to activate the alarm system to prevent attempts to open the door with mechanical keys or force.
Automatic Locking: When your door is closed and locks it automatically, keeping your home secure when you’re in a hurry.
Withstands any season: Works in temperatures ranging from -20°C to 60°C.
Concealed fixing screws for greater security and improved aesthetics.

Easy operation and Stylish design

Looks great in blend into any type of door: The casing integrally formed by Die-Casting Zinc Alloy; 3-layer plating application; Stylish design and classic matte black
Voice Indication: Three versions in English, Chinese, and Mute notify user locking status at any time.
Emergency exits: Escaping from the room with just one push-down handle during an emergency.
Large storage capacity: It can accommodate up to 2,000 users.

Long battery life

Up to 1.5 years (10 openings a day, service at 20℃).
Acoustic low power warning: Never worry about out of battery power and lock outside.
Emergency supply power: If the smart lock runs out of power before you have had the chance to replace batteries, it simply uses a 9V battery for emergency access.
Power-saving design: The smart lock’s circuits wake up only when it is used.

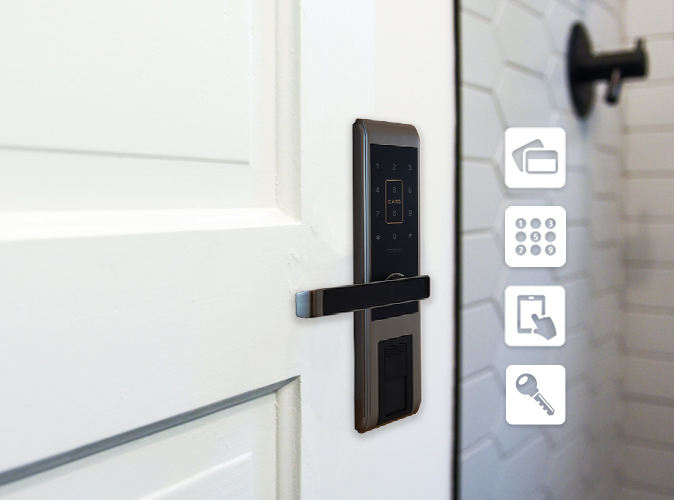

Multiple Ways to Unlock

Unlock it with your ways.

You can choose any of the 4 ways to unlock L376 smart lock. Access remotely via the WAFERKEY App, or by using key card, and passcode. More than that, the entry method of the mechanical key is a key when you need no mobile or key card. The above adds, you will never be locked out again.

Durability coated with Stylish design

L376 is elegant and graceful with stylish and ergonomic design and classic matte black, which is suitable for users of all ages and looks great to blend into any type of door. It is developed to enhance the durability with its casing integrally formed by Die-Casting Zinc Alloy and corrosion protection provided by the 3-layer plating application. Also, for better protection for your life and property, the whole parts of L376 have achieved the fire-proof certification in Taiwan.

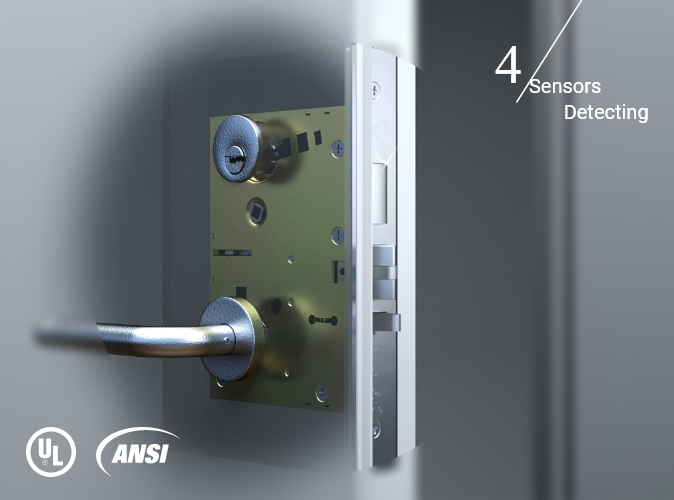

Grade 1 Mortise Lock

Revolutionary mortise design embedded with 4 sensors detecting different door status to provide highly-security performance for your property. Moreover, don’t worry about its durability since it achieves the UL and US ANSI Grade certifications .

Automatic Locking

When your door is closed, it will lock the door automatically to keep your home secure when you’re in a hurry. You can choose any of the 4 ways to unlock the doors with just one push-down handle after verification.

Applicable Industries

Commercial

Offices / Commercial Buildings

Access control requirement at all areas in side the buildings can be fulfilled.
WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.

Hospitality

Combination of Technology and Aesthetics

Not only electronic door locks but also a design element.
WAFERLOCK is offering several types of systems for different scales of hotels, and all systems support PMS integration.

Education

High Secure and Intelligent

The systems could be applied for dormitories, classrooms, lockers, equipment and public areas.
The integration possibilities allow third party software to control or monitor all the devices. In order to provide a convenient and secure environment for school staffs and students.

Retail

Stores｜Logistics

All scales of stores and simplify the manpower.
WAFERLOCK is offering several types of systems for different scales of stores, and the centralized systems could help the supervisors control the access and monitor the audit trail.

Healthcare

Combination of Technology and Privacy

From home care up to hospitals, the solutions could meet different requirements and standards.
Contactless systems such as face recognition are also available, and the biometric data is stored separately to protect users’ privacy.

Government

High Secure and Intelligent

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Transportation

Stations｜Transport Infrastructure

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Coworking Space

Share Living Space｜Combination of Security and Simplicity

Want to reduce the fixed costs or need a small space but safe?
WAFERLOCK’s software is solving the needs of business beginners, self-employed people, or short-term contractors.
The working space is more flexible for individual or multiple enterprise.

Bed and Breakfast

A House or Apartment｜Easily Control

The system could handle the access of unexpected guests or regular house keepers.
Easily controlling the door access becomes simple clicks. It could reduce the operation costs and provide time saving.
The owners never worry the long distance issues.

Residential

Living Houses / Smart Communities

The solutions could be applied for All scales of residence project as simple as an individual unit or complex as a whole community.
With high secure access control system, water and dust proof hardware, and centralized monitoring system.
