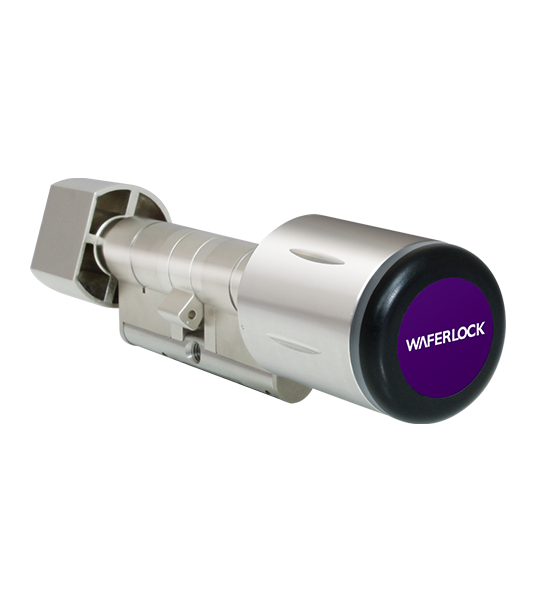

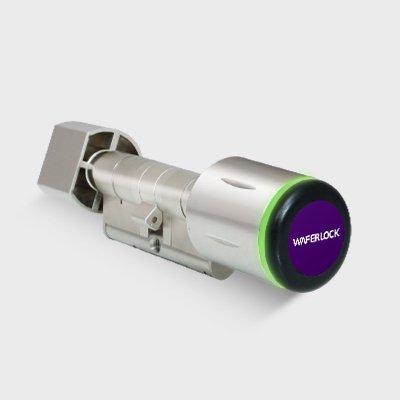

C700 Electronic Cylinder

Name: Waferlock C700 - Insetis
SKU: C700

C700 may be small, but complete in every detail. It is one of the most popular models for professional lock business in the European market, and brings more convenient and safer functions to meet the various needs of daily intelligent life.

Get a custom quote

SKU: C700 Category: Smart Cylinder Brand: WAFERLOCK

SKU: C700

Share:

Additional information

Access Control System	HPMS, SBA
Color	Matt Silver
Type of cylinders	Double, Half, Standard
Access Solutions	Key Card
Number of users	1000
Wireless Technologies	MIFARE, NFC
Cylinder Length	30/10mm~70/10mm (Half), 30/30mm~70/70mm (Standard/Double)
Power Source	CR2 lithium battery x 1pc
Battery Life	Up to 3 years (10 openings a day, service at 20℃)
Operation Temperature	-20°C ~ 60°C
Protection Class	IP67
Certificates	CE, EI30, EN15684, IP67

Technical Drawing
(Unit: mm)

Features

High-security protection

Achieve EN15684 certification and provide Anti-Drill, Anti-Bump, Anti-Snap lock protection for your property.
Stainless steel knob design to prevent from corrosion and rust.
Withstands any season: Works in temperatures ranging from -20°C to 60°C.
Concealed fixing screws for greater security and improved aesthetics.
Pass 30 minute fire test to protect your property and life safely.

Easy operation and Stylish design

It universally compatible cylinder that replaces your existing cylinder and fits any door with unlimited models options.
An easy-to-use electronic locking platform.
Simple installation by changing the cylinder. No wiring or drilling work required.
Large storage capacity: It can accommodate up to 1000 users for key card recognition.

Long battery life

Up to 3 years (10 openings a day, service at 20℃).
Acoustic low power warning: Never worry about out of battery and lock outside.
Power-saving design: The smart lock’s circuits wake up only when it is used.

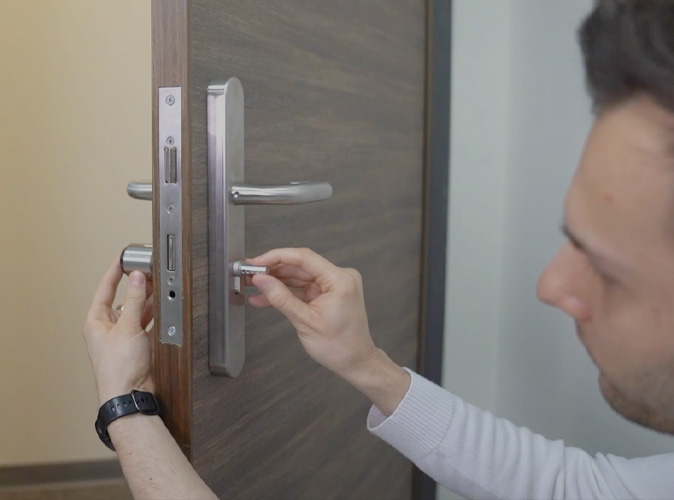

Easily retrofit most Euro profile doors

Even you are new to DIY, simple installation is possible on any type of door, including those with narrow frames.
Within minutes you can swap out your mechanical lock for C700 electronic cylinder. All you need for installation is a Philips screwdriver, in about 5 minutes that you can install a smart cylinder for your home and office.

Simple but Practical

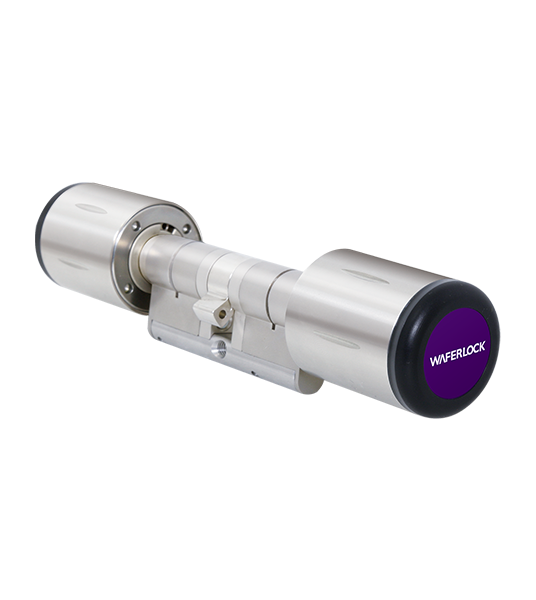

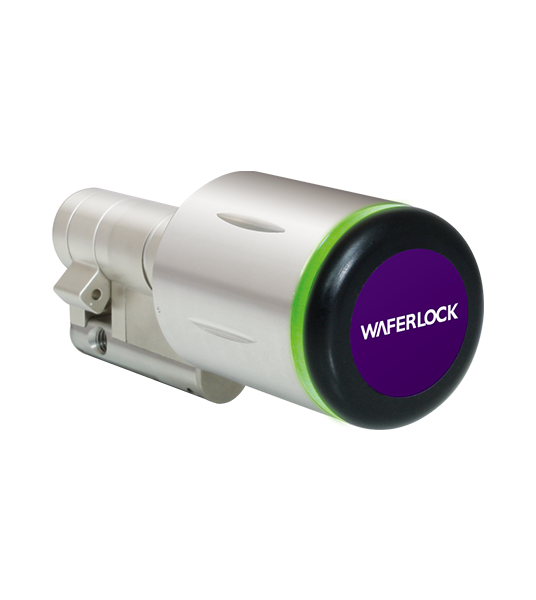

There are three types of cylinders, standard, half and double, to fit all various of lock cases. C700 has the most suitable unlock method, Key Card for all generations to replace the traditional mechanical key solution.

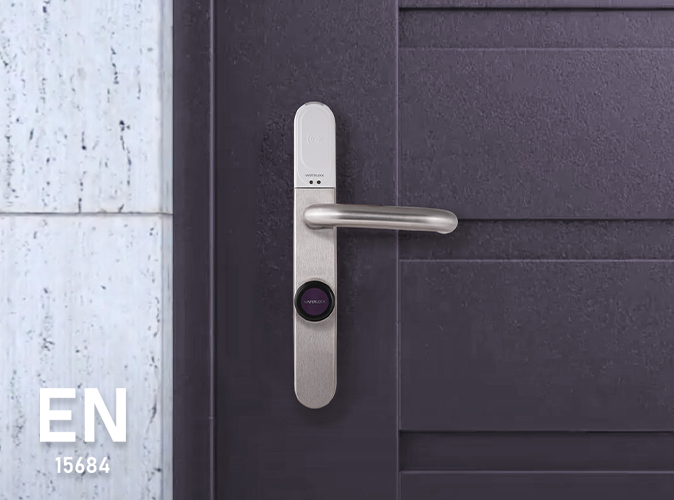

Ultimate protection

Robust and durable. The Cylinder provides anti-theft protection that is tested and approved by EN15684 certification. Built to withstand prevent the opening or breaking of the lock by force. The C700 is a cylinder you can rely on when you are out of home or office.

Protected against harsh environments

IP67 water resistance and dust protection for critical environments and extreme climates. C700 is built with durability in mind and can effectively withstand harsh conditions. This way, users can rest assured that their smart keys will work normally no matter how tough the surroundings get.

Applicable Industries

Commercial

Offices / Commercial Buildings

Access control requirement at all areas in side the buildings can be fulfilled.
WAFERLOCK provides secure and reliable solution for smart buildings including software and hardware such as access control systems, smart locks, and accessories.

Hospitality

Combination of Technology and Aesthetics

Not only electronic door locks but also a design element.
WAFERLOCK is offering several types of systems for different scales of hotels, and all systems support PMS integration.

Education

High Secure and Intelligent

The systems could be applied for dormitories, classrooms, lockers, equipment and public areas.
The integration possibilities allow third party software to control or monitor all the devices. In order to provide a convenient and secure environment for school staffs and students.

Retail

Stores｜Logistics

All scales of stores and simplify the manpower.
WAFERLOCK is offering several types of systems for different scales of stores, and the centralized systems could help the supervisors control the access and monitor the audit trail.

Healthcare

Combination of Technology and Privacy

From home care up to hospitals, the solutions could meet different requirements and standards.
Contactless systems such as face recognition are also available, and the biometric data is stored separately to protect users’ privacy.

Government

High Secure and Intelligent

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Transportation

Stations｜Transport Infrastructure

With high secure access control system, water and dust proof hardware, and centralized monitoring system, WAFERLOCK is providing a total solution for all types of smart buildings.

Coworking Space

Share Living Space｜Combination of Security and Simplicity

Want to reduce the fixed costs or need a small space but safe?
WAFERLOCK’s software is solving the needs of business beginners, self-employed people, or short-term contractors.
The working space is more flexible for individual or multiple enterprise.

Bed and Breakfast

A House or Apartment｜Easily Control

The system could handle the access of unexpected guests or regular house keepers.
Easily controlling the door access becomes simple clicks. It could reduce the operation costs and provide time saving.
The owners never worry the long distance issues.

Residential

Living Houses / Smart Communities

The solutions could be applied for All scales of residence project as simple as an individual unit or complex as a whole community.
With high secure access control system, water and dust proof hardware, and centralized monitoring system.
