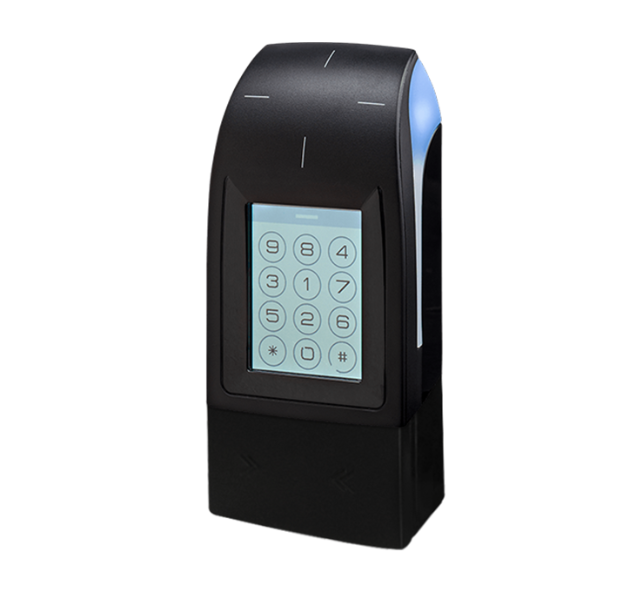

STid Architect® Hybrid Multi-Prox & Touchscreen

Customized Scalable Configuration
The scalability allows you to remove the 125 kHz module once your technology migration is completed and / or to implement new functionality such as a QR code or a biometric module.

Highly Versatile
The reader ensures a gradual transition to advanced security levels. It supports the widest range of contactless identification technologies – legacy 125 kHz technologies (HID Proximity®, AWID®, INDALA®, IOPROX®, EM®) and 13.56 MHz MIFARE® DESFire® EV3. It also features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

An Intuitive Display Experience
Unlock a world of possibilities with a touchscreen reader! It displays your logos, provides clear instructions, delivers personalized messages, activates a convenient doorbell button, and reveals an intuitive keypad.

Secure Scramble Pad Feature
The reader protects access against the fraudulent use of identification codes by the random display of the keys.

• custom

  Black

  White

  Test lighting effect opting for a color

• protocols

  Wiegand

  OSDP™

• technologies

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

  125 kHz

• Frequency

  13.56 MHz + 125 kHz

• Standard

  ISO14443 types A & B, ISO18092

• 13.56 MHz Credentials

  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)

• 125 kHz Credentials

  HID Proximity®, INDALA®, IOPROX®, AWID®, EM®

• Virtual Credential Compatibility

  STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes

• Keypad

  Reader_KeypadKeyTouchCardAndKey

• Touchscreen

  Color Touchscreen | TFT LCD (Thin-Film-Transistor Liquid-Crystal Display) | 2.8” – 240 x 320 pixels | Features – Display of texts, images, and on-screen keypad | OSDP™: 4 customizable function buttons with text

• Reader_Antenna

  Reader_Antenna_Touchscreen

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or OSDP™ command according to the interface

• Configurations

  Configuration by RFID card, software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -20°C / +70°Cn-4°F / +158°F

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS

• Current Draw

  240 mA/12 VDC max

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%

• Range

  0 – 4 cm / 0 – 1.6 in with a MIFARE® DESFire® EV3 card
  0 – 6 cm / 0 – 2.4 in with a 125 kHz card

• Connections

  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal

• Dimensions & Weight

  156 x 80 x 30 mm / 6.14 x 3.15 x 1.2 in (general tolerance following ISO NFT 58-000 standard)

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• OSDP Protocols
  • Secure Private ID and/or CSN serial number

    ARC-WX3-KM/BF5-7OS/y

• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number – Wiegand

    ARC-RX1-KM/BF5-3x/y
