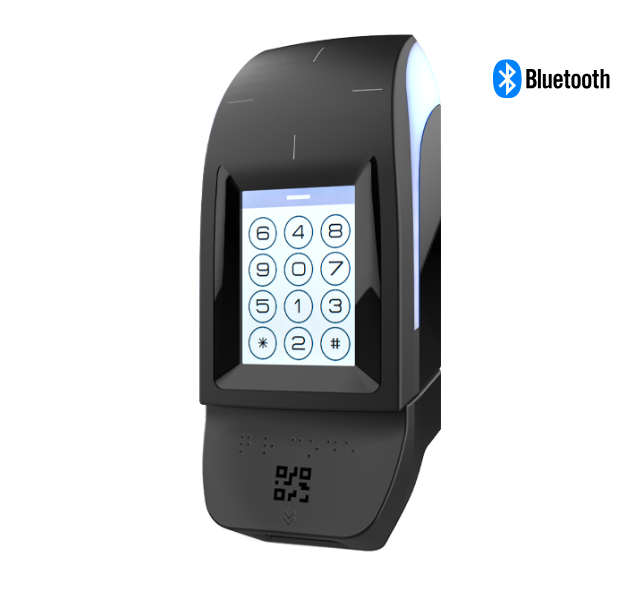

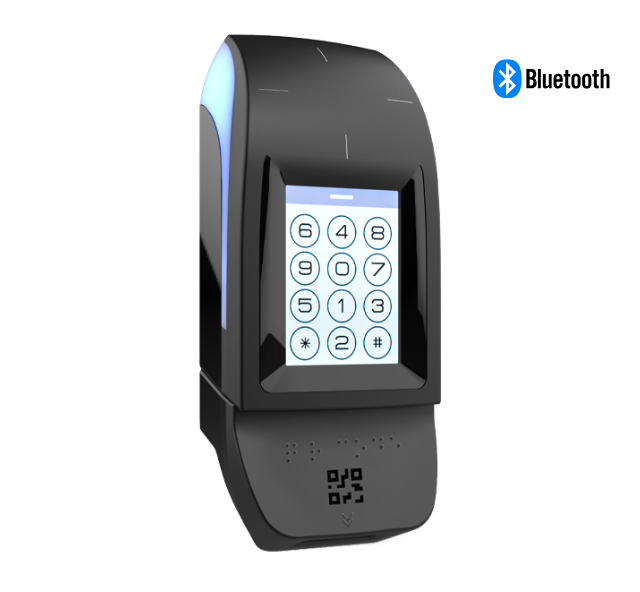

STid Architect® Blue Touchscreen & QR Code

Intuitive Identification, Better User Experience
The reader supports STid Mobile ID® user-friendly solution and offers six unique user interaction modes for intuitive contactless identification:
• Card mode: present your smartphone or wearable to the reader like a conventional access card.
• Slide mode: your hand becomes your access card.
• Tap Tap mode: tap tap the smartphone in your pocket to gain access.
• Remote mode: use the “remote button” to conveniently access car parks or other vehicle entrances.
• Hands-free mode: simply walk towards the reader without any further action.
• Voice command: use SIRI voice command on your iPhone (iOS) or Apple Watch.

One Device, Endless Possibilities
Unlock a world of convenience with our all-in-one reader, designed to effortlessly identify users with a wide range of profiles, from visitors and employees to tenants and drivers. Supporting multiple identification technologies – QR codes, MIFARE® DESFire® EV3, STid Mobile ID® Bluetooth® and NFC virtual cards and Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet – it ensures a secure and versatile access control solution.

An Intuitive Display Experience
Unlock a world of possibilities with a touchscreen reader! It displays your logos, provides clear instructions, delivers personalized messages, activates a convenient doorbell button, and reveals an intuitive keypad.

Secure Scramble Pad Feature
The reader protects access against the fraudulent use of identification codes by the random display of the keys.

• custom

  Black

  White

  Test lighting effect opting for a color

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Bluetooth®

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

• Frequency
  13.56 MHz + 2.4 GHz Bluetooth®
• Standard
  ISO14443 types A & B, ISO18092, Bluetooth®
• 13.56 MHz Credentials
  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
• Virtual Credential Compatibility
  STid Mobile ID® NFC & Bluetooth® cards, Apple Wallet™ Access NFC (ECP2) passes
• 1D/2D Code Compatibility
  QR Code (versions 1, 2 & 3), Micro QR Code, code 128, Aztec, Data Matrix
• Keypad
  Reader_KeypadKeyTouchCardAndKey
• Touchscreen
  Color Touchscreen | TFT LCD (Thin-Film-Transistor Liquid-Crystal Display) | 2.8” – 240 x 320 pixels | Features – Display of texts, images, and on-screen keypad | OSDP™: 4 customizable function buttons with text | SSCP®: customizable screen
• Reader_Antenna
  Reader_Antenna_Touchscreen
• Wiegand Interface
  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
• Clock & Data
  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
• RS485
  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
• SSCP Protocol
  RS485 output – Controlled by SSCP® v1 & v2 secure communication protocols
• Light Indicator
  2 RGB LEDs – 360 colors
• Data Protection
  EAL 5+ Certified Secure Element Hardware for secure key storage.
• Tamper Detection
  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
• Inputs/Outputs
  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
• Operating Voltage
  7 – 28 VDC
• Operating Temperature
  -20°C / +60°Cn-4°F / +140°F
• Mounting
  Wall-mounted
• Certifications
  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
• Dimensions & Weight
  175 x 80 x 36 mm / 6,85 x 3.15 x 1.42 in (general tolerance following ISO NFT 58-000 standard)
• Connections
  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal
• Housing Materials & Color
  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
• Resistance
  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 5 – 90%
• Range
  0 – 3 cm / 0 – 1.2 in with a QR Code
  0 – 4 cm / 0 – 1.6 in with a MIFARE® DESFire® EV3 card
  0 – 20 m / 0 – 66 ft with a Bluetooth® virtual card
• Current Draw
  330 mA/12 VDC max

• RS485
  • Secure Private ID and/or CSN serial number
    ARCS-R33-CQ/BT1-7AB/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARCS-S33-CQ/BT1-7AB/y
  • Secure Private ID and/or CSN serial number compatible with EasySecure interface
    ARCS-R33-CQ/BT1-7AA/y
  • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface
    ARCS-S33-CQ/BT1-7AA/y
• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number
    ARCS-R31-CQ/BT1-xx/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARCS-S31-CQ/BT1-xx/y
• SSCP Protocols
  • SSCP® v1 protocol
    ARCS-W33-CQ/BT1-7AA/y
  • SSCP® v2 protocol
    ARCS-W33-CQ/BT1-7AD/y
• OSDP Protocols
  • Secure Private ID and/or CSN serial number
    ARCS-W33-CQ/BT1-7OS/y
