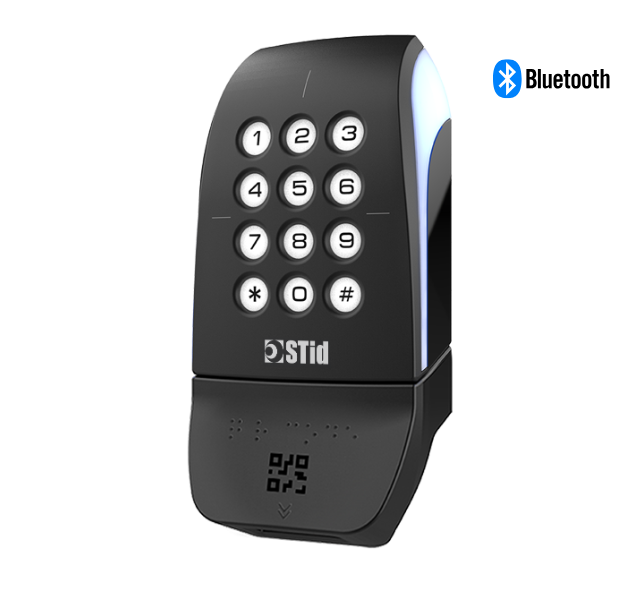

STid Architect® Blue Keypad & QR Code

13.56 MHz DESFire® EV3, Bluetooth® & QR Code Keypad Reader

The Architect® Blue RFID, NFC, and Bluetooth® keypad reader is equipped with 1D & 2D code module to enable the identification of employees and visitors. Identification by QR Code simplifies the management of temporary access in offices, parking lots or any other infrastructure.

Category: Brand:
SKU:
Share:

Key features

One Device, Endless Possibilities
Unlock a world of convenience with our all-in-one reader, designed to effortlessly identify users with a wide range of profiles, from visitors and employees to tenants and drivers. Supporting multiple identification technologies – QR codes, MIFARE® DESFire® EV3, STid Mobile ID® Bluetooth® and NFC virtual cards and Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet – it ensures a secure and versatile access control solution.

Multi-Functional Keypad
The keypad can be used for identification or to activate additional functions (alarm…). The same reader can also operate in multiple mode. It authorizes, for example, the reading of cards for personnel or the entry of codes for visitors or temporary workers.

Intuitive Identification, Better User Experience
The reader supports STid Mobile ID® user-friendly solution and offers five unique user interaction modes for intuitive contactless identification:
• Card mode: present your smartphone or wearable to the reader like a conventional access card.
• Tap Tap mode: tap tap the smartphone in your pocket to gain access.
• Remote mode: use the “remote button” to conveniently access car parks or other vehicle entrances.
• Hands-free mode: simply walk towards the reader without any further action.
• Voice command: use SIRI voice command on your iPhone (iOS) or Apple Watch.

Reliable Performance in All Conditions
No matter the conditions, our IK08-certified reader is your go-to choice. From bright environments to reflections, indoor to outdoor use, it offers easy and reliable detection, day or night.

Technical Data

  • custom

    Black

    White

    Test lighting effect opting for a color

    Test your own brand adding your logo

    Monochrome or Quadri ?

  • protocols

    Wiegand

    SSCP®

    OSDP™

  • technologies

    Bluetooth®

    Apple Wallet™

    13.56 MHz MIFARE® DESFire® EV3

  • Frequency
    13.56 MHz + 2.4 GHz Bluetooth®
  • Standard
    ISO14443 types A & B, ISO18092, Bluetooth®
  • 13.56 MHz Credentials
    MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
  • Virtual Credential Compatibility
    STid Mobile ID® NFC & Bluetooth® cards, Apple Wallet™ Access NFC (ECP2) passes
  • 1D/2D Code Compatibility
    QR Code (versions 1, 2 & 3), Micro QR Code, code 128, Aztec, Data Matrix
  • Keypad
    Reader_KeypadSensitiveCardAndKey
  • Reader_Antenna
    Reader_Antenna_Keypad
  • Wiegand Interface
    Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
  • Clock & Data
    Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
  • RS485
    RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
  • SSCP Protocol
    RS485 output – Controlled by SSCP® v1 & v2 secure communication protocols
  • Light Indicator
    2 RGB LEDs – 360 colors
  • Data Protection
    EAL 5+ Certified Secure Element Hardware for secure key storage.
  • Tamper Detection
    Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
  • Inputs/Outputs
    Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
  • Operating Voltage
    7 – 28 VDC
  • Operating Temperature
    -30°C / +60°Cn-22°F / +140°F
  • Robustness
    IK08 Certified
  • Mounting
    Wall-mounted
  • Certifications
    CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
  • Current Draw
    290 mA/12 VDC max
  • Connections
    10-pin plug-in connector (5 mm / 0.2 in)
    2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal
  • Range
    0 – 3 cm / 0 – 1.2 in with a QR Code
    0 – 6 cm / 0 – 2.4 in with a MIFARE® DESFire® EV3 card
    0 – 20 m / 0 – 66 ft with a Bluetooth® virtual card
  • Resistance
    IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 5 – 90%
  • Housing Materials & Color
    ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Dimensions & Weight
    156 x 80 x 36 mm / 6.3 x 3.15 x 1.02 in (general tolerance following ISO NFT 58-000 standard)

Part Numbers

  • OSDP Protocols
    • Secure Private ID and/or CSN serial number
      ARCS-W33-BQ/BT1-7OS/y
  • SSCP Protocols
    • SSCP® v1 protocol
      ARCS-W33-BQ/BT1-7AA/y
    • SSCP® v2 protocol
      ARCS-W33-BQ/BT1-7AD/y
  • TTL (Wiegand / Clock&Data)
    • Secure Private ID and/or CSN serial number
      ARCS-R31-BQ/BT1-xx/y
    • Secure Private ID and/or CSN serial number + Secure communication
      ARCS-S31-BQ/BT1-xx/y
  • RS485
    • Secure Private ID and/or CSN serial number
      ARCS-R33-BQ/BT1-7AB/y
    • Secure Private ID and/or CSN serial number + Secure communication
      ARCS-S33-BQ/BT1-7AB/y
    • Secure Private ID and/or CSN serial number compatible with EasySecure interface
      ARCS-R33-BQ/BT1-7AA/y
    • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface
      ARCS-S33-BQ/BT1-7AA/y
