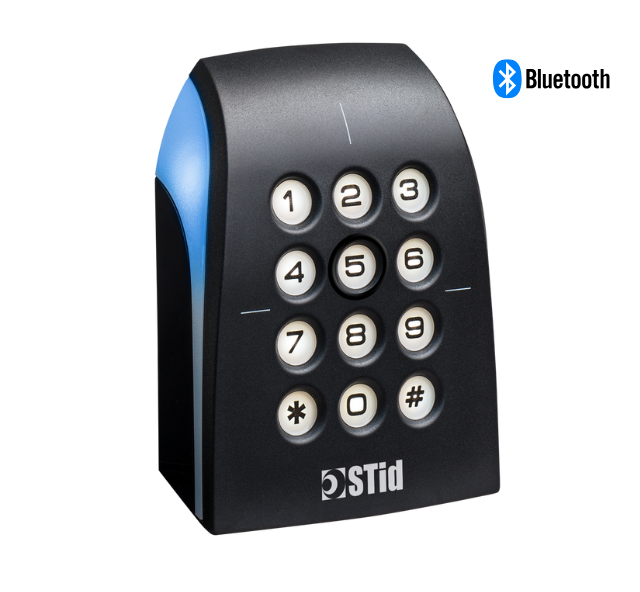

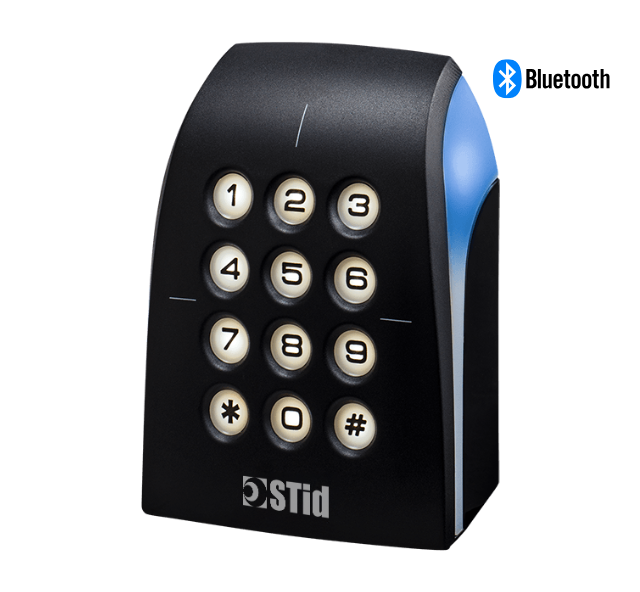

STid Architect® Blue Keypad

Highly Versatile
The reader supports the widest range of credential technologies, including 13.56 MHz DESFire® EV3, STid Mobile ID® instinctive identification modes (Tap Tap, Remote…) via native Bluetooth® and Near Field Communication (NFC) capability. It also features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

Multi-Functional Keypad
The keypad can be used for identification or to activate additional functions (alarm…). The same reader can also operate in multiple mode. It authorizes, for example, the reading of cards for personnel or the entry of codes for visitors or temporary workers.

Unmatched Durability in Rugged Conditions
The keypad reader offers IK08-certified vandal-proof and IP65-level design ideal for outdoor mounts in harsh environments.

Two-Factor Authentication
The reader combines the reading of a credential with the input of a personal keypad code to improve the security levels.

• custom

  Black

  White

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Bluetooth®

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

• Frequency
  13.56 MHz + 2.4 GHz Bluetooth®
• Standard
  ISO14443 types A & B, ISO18092, Bluetooth®
• 13.56 MHz Credentials
  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
• Virtual Credential Compatibility
  STid Mobile ID® NFC & Bluetooth® cards, Apple Wallet™ Access NFC (ECP2) passes
• Keypad
  Reader_KeypadSensitiveCardAndKey
• Reader_Antenna
  Reader_Antenna_Keypad
• Wiegand Interface
  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
• Clock & Data
  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
• RS485
  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
• SSCP Protocol
  RS485 output – Controlled by SSCP® v1 & v2 secure communication protocols
• Light Indicator
  2 RGB LEDs – 360 colors
• Data Protection
  EAL 5+ Certified Secure Element Hardware for secure key storage.
• Tamper Detection
  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
• Inputs/Outputs
  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
• Operating Voltage
  7 – 28 VDC
• Operating Temperature
  -30°C / +70°Cn-22°F / +158°F
• Robustness
  IK08 Certified
• Mounting
  Wall-mounted
• Certifications
  UL294 Outdoor CertifiednCE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
• Dimensions & Weight
  107 x 80 x 26 mm / 4.2 x 3.1 x 1 in (general tolerance following ISO NFT 58-000 standard)
• Connections
  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal
• Resistance
  UL294 Outdoor Certified
  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%
• Current Draw
  180 mA/12 VDC max
• Range
  0 – 6 cm / 0 – 2.4 in with a MIFARE® DESFire® EV3 card
  0 – 20 m / 0 – 66 ft with a Bluetooth® virtual card
• Housing Materials & Color
  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• OSDP Protocols
  • Secure Private ID and/or CSN serial number
    ARCS-W33-B/BT1-7OS/y
• RS485
  • Secure Private ID and/or CSN serial number
    ARCS-R33-B/BT1-7AB/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARCS-S33-B/BT1-7AB/y
  • Secure Private ID and/or CSN serial number compatible with EasySecure interface
    ARCS-R33-B/BT1-7AA/y
  • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface
    ARCS-S33-B/BT1-7AA/y
• SSCP Protocols
  • SSCP® v1 protocol
    ARCS-W33-B/BT1-7AA/y
  • SSCP® v2 protocol
    ARCS-W33-B/BT1-7AD/y
• TTL (Wiegand / Clock&Data)
  • Secure & Pre-configured SimpleLine – Wiegand
    ARCS-R31-B/PC3-3x/y
  • Secure Private ID and/or CSN serial number
    ARCS-R31-B/BT1-xx/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARCS-S31-B/BT1-xx/y
