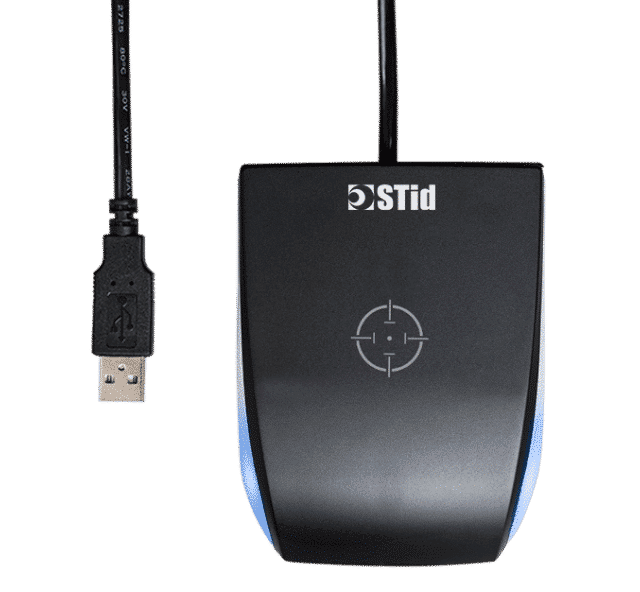

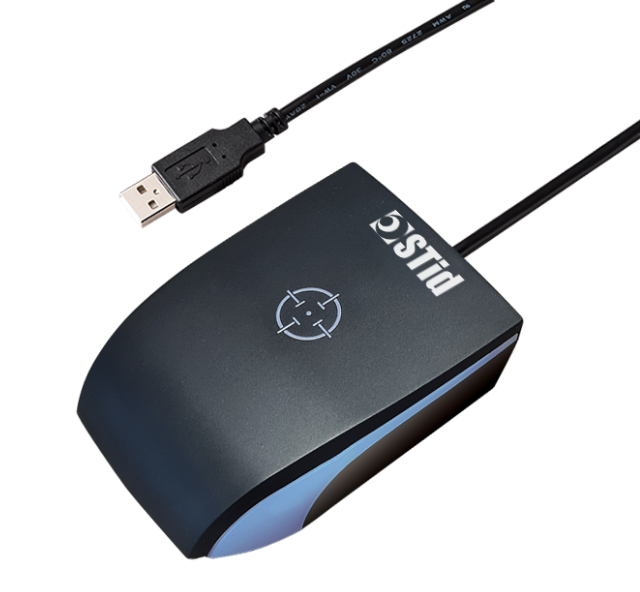

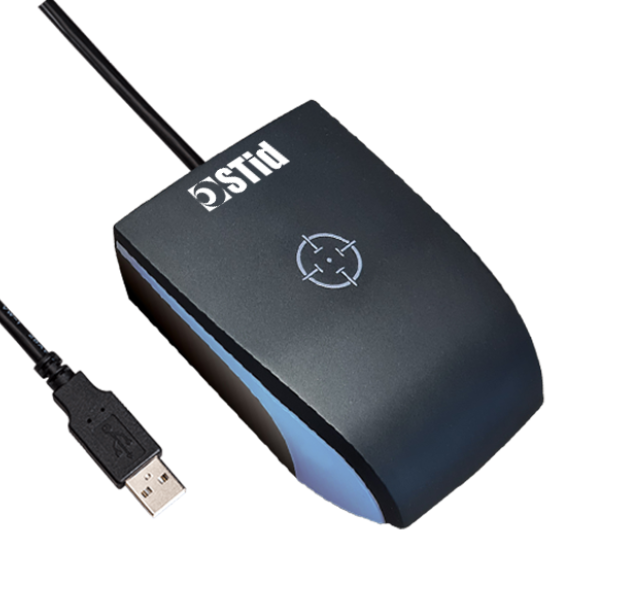

STid Architect® UHF Desktop

Compact, User-Friendly Design
The Architect® UHF reader features a sleek, compact form factor ideal for desktop use in professional settings:
• Built-In Feedback Indicators: LED and buzzer provide clear and immediate user feedback for successful operations.
• Ease of Installation: lightweight, it integrates effortlessly into existing setups without disrupting workflows.

Highly Versatile
The Architect® UHF reader is more than just a reader; it can also function as an encoder and an enrollment tool:
• Reader Mode: enables seamless reading of UHF credentials for short range identification.
• Encoder Mode: provides efficient and reliable encoding of UHF tags and credentials.
• Enrollment Mode: simplifies user registration by easily capturing and transmitting credential data to access systems.
This multi-functional design reduces the need for multiple devices, streamlining operational workflows.

Standing the Test of Time
The UHF desktop reader stands out as the most robust solution in its category, featuring an IK10-certified vandal-resistant structure designed to withstand severe impacts and tampering. Engineered for resilience, it operates reliably under challenging conditions, including exposure to vibrations, dust, water, and oils, ensuring consistent performance in demanding environments.

High-Performance Reading & Encoding
The reader delivers exceptional speed and precision for reading and encoding all UHF credentials. Equipped with STid Ceramic technology, the integrated circular high-performance antenna ensures superior reliability and identification accuracy, even when handling the smallest passive UHF tags. This cutting-edge design guarantees optimal performance in diverse applications.

• protocols

  SSCP®

• technologies

  UHF

• Frequency

  UHF

• Standard

  ISO18000-63 | 865 – 868 MHz: 866 MHz ETSI – Europe / Middle-East,
  Morocco (regulation n°ANRT/DG/n°7-10) | 902 – 928 MHz: 915 MHz FCC Part
  15 – USA / North America , Australia, New Zealand, Philippines, Peru

• UHF Credentials

  EPC1 GEN2 tags & credentials

• Keypad

  Reader_KeypadUndefined

• Reader_Antenna

  Reader_Antenna_0

• Light Indicator

  2 RGB LEDs | With ULTRYS: Orange LED on connection, Blue LED during
  encoding initiation, Green LED for successful encoding, Red LED if
  encoding error | With SESPRO: management of 360 colors

• Configurations

  Controlled by external command (0V)

• Operating Temperature

  -20°C / +55°Cn-4°F / +131°F

• Robustness

  IK10 Certified

• Mounting

  Non-slip pads

• Certifications

  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), RCM
  (Australia & New Zealand), ANRT (Morocco), UL, RoHS

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and
  water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 –
  95%

• Connections

  1.5 m / 5 ft USB cable

• Housing Materials & Color

  ABS-PC UL-V0 (black)

• Dimensions & Weight

  107 x 80 x 26 mm / 4.2 x 3.1 x 1 in (general tolerance following ISO NFT
  58-000 standard)

• Range

  0 – 40 cm / 0 – 15.7 in in reader mode
  0 – 25 cm / 0 – 9.4 in in encoder mode depending on the tag

• SSCP Protocols
  • Low Band 865-868 MHz

    ARC-W45-G/U04-5AA/1

  • Upper Band 902-928 MHz

    ARC-W55-G/U04-5AA/1

  • Morocco (regulation n°ANRT/DG/n°7-10)

    ARC-W45-G/U04-5AA/1M

  • Australia

    ARC-W55-G/U04-5AA/1AU

  • New Zealand

    ARC-W55-G/U04-5AA/1NZ

  • Peru

    ARC-W55-G/U04-5AA/1PE

  • Philippines

    ARC-W55-G/U04-5AA/1PH
