STid Architect® Touchscreen & QR Code

One Device, Endless Possibilities
Unlock a world of convenience with our all-in-one reader, designed to effortlessly identify users with a wide range of profiles, from visitors and employees to tenants and drivers. Supporting multiple identification technologies – QR codes, MIFARE® DESFire® EV3 and Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet – it ensures a secure and versatile access control solution.

Secure Scramble Pad Feature
The reader protects access against the fraudulent use of identification codes by the random display of the keys.

An Intuitive Display Experience

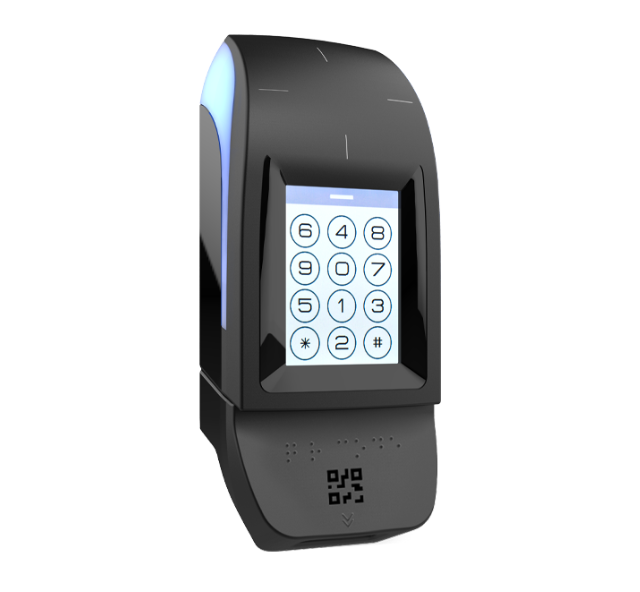

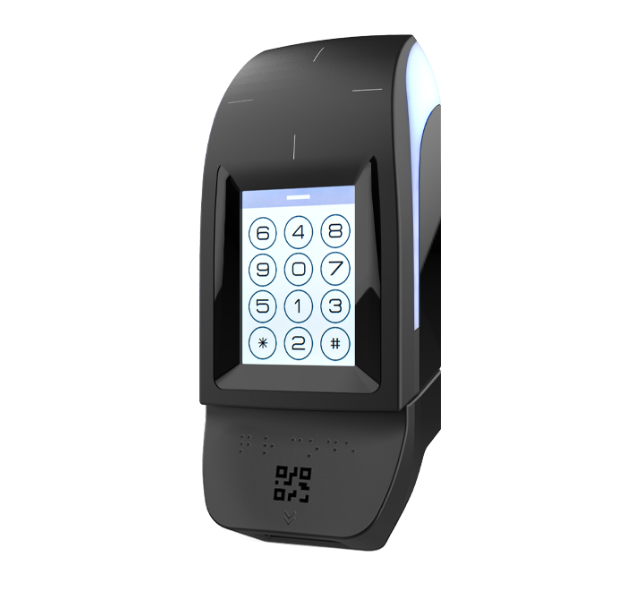

Unlock a world of possibilities with a touchscreen reader! It displays your logos, provides clear instructions, delivers personalized messages, activates a convenient doorbell button, and reveals an intuitive keypad.

Best-in-Class Security
It supports for the latest MIFARE® DESFire® EV3 contactless technologies with new data security mechanisms: “Secure Messaging” to secure the transaction and “Proximity Check” to protect against relay attacks.

• custom

  Black

  White

  Test lighting effect opting for a color

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

• Frequency

  13.56 MHz

• Standard

  ISO14443 types A & B, ISO18092

• 13.56 MHz Credentials

  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)

• Virtual Credential Compatibility

  STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes

• 1D/2D Code Compatibility

  QR Code (versions 1, 2 & 3), Micro QR Code, code 128, Aztec, Data Matrix

• Keypad

  Reader_KeypadKeyTouchCardAndKey

• Touchscreen

  Color Touchscreen | TFT LCD (Thin-Film-Transistor Liquid-Crystal Display) | 2.8” – 240 x 320 pixels | Features – Display of texts, images, and on-screen keypad | OSDP™: 4 customizable function buttons with text | SSCP®: customizable screen

• Reader_Antenna

  Reader_Antenna_Touchscreen

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication

• Clock & Data

  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom

• RS232

  RS232 output

• RS485

  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)

• SSCP Protocol

  RS485 and RS232 outputs – Controlled by SSCP® v1 & v2 secure communication protocols

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface

• Configurations

  Configuration by RFID card, software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -20°C / +70°Cn-4°F / +158°F

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS

• Dimensions & Weight

  175 x 80 x 36 mm / 6,85 x 3.15 x 1.42 in (general tolerance following ISO NFT 58-000 standard)

• Current Draw

  330 mA/12 VDC max

• Connections

  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 5 – 90%

• Range

  0 – 3 cm / 0 – 1.2 in with a QR Code
  0 – 4 cm / 0 – 1.6 in with a MIFARE® DESFire® EV3 card

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• SSCP Protocols
  • SSCP® v1 protocol

    ARC-W33-CQ/PH5-7AA/y

  • SSCP® v2 protocol

    ARC-W33-CQ/PH5-7AD/y

  • SSCP® v1 protocol

    ARC-W32-CQ/PH5-5AA/y

• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number

    ARC-R31-CQ/PH5-xx/y

  • Secure Private ID and/or CSN serial number + Secure communication

    ARC-S31-CQ/PH5-xx/y

• OSDP Protocols
  • Secure Private ID and/or CSN serial number

    ARC-W33-CQ/PH5-7OS/y

• RS232
  • Secure Private ID and/or CSN serial number

    ARC-R32-CQ/PH5-5AB/y

• RS485
  • Secure Private ID and/or CSN serial number

    ARC-R33-CQ/PH5-7AB/y

  • Secure Private ID and/or CSN serial number + Secure communication

    ARC-S33-CQ/PH5-7AB/y

  • Secure Private ID and/or CSN serial number compatible with EasySecure interface

    ARC-R33-CQ/PH5-7AA/y

  • Secure Private ID and/or CSN serial number + Secure communication et compatible with EasySecure interface

    ARC-S33-CQ/PH5-7AA/y
