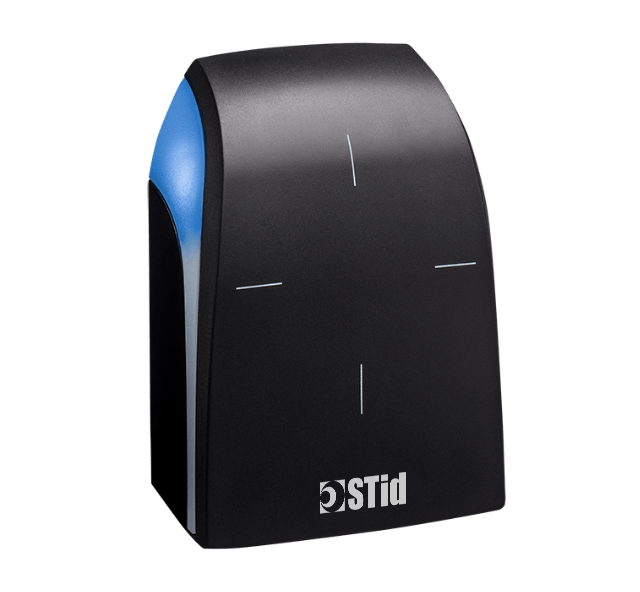

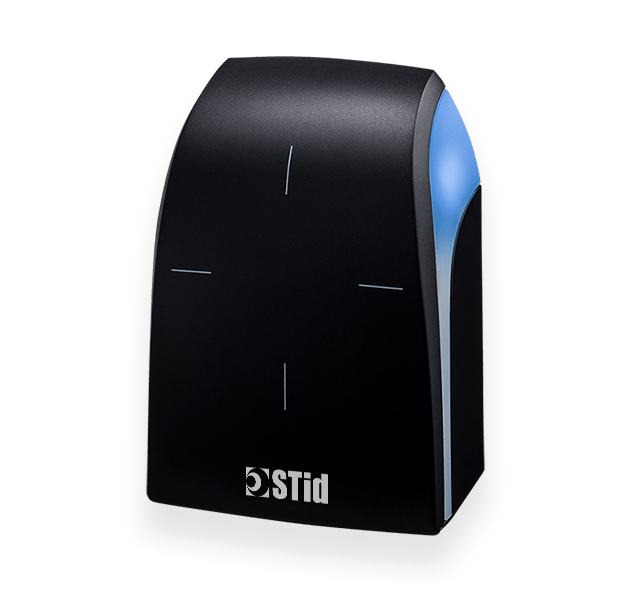

STid Architect® LEGIC® Reader

Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys. Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Welcome to High Security
The reader Architect® uses the latest LEGIC® Advant contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (AES, RSA, SHA, etc.), which are recommended by official data security agencies.

• custom

  Black

  White

  Skin Effect

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

• technologies

  13.56 MHz LEGIC®

• Frequency

  13.56 MHz

• Standard

  ISO14443 type A, ISO15693, LEGIC® RF

• 13.56 MHz Credentials

  LEGIC® Advant & Prime | CSN of the chips: MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, PicoPass®, iCLASS™, ICODE SLI, Inside chips

• Keypad

  Reader_KeypadUndefined

• Reader_Antenna

  Reader_Antenna_Standard

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64 bits or custom

• Clock & Data

  Clock&Data 32 bits, 40 bits or custom

• RS232

  RS232 output

• RS485

  RS485 output

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface

• Configurations

  Configuration by software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -20°C / +70°Cn-4°F / +158°F

• Robustness

  IK10 Certified

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), RoHS

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%

• Connections

  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal

• Range

  0 – 6 cm / 0 – 2.4 in with a LEGIC® Advant card

• Dimensions & Weight

  107 x 80 x 26 mm / 4.2 x 3.1 x 1 in (general tolerance following ISO NFT 58-000 standard)

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• Current Draw

  130 mA/12 VDC max

• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number

    ARC-R31-L/LE2-xx/y

• SSCP Protocols
  • SSCP® v1 protocol

    ARC-W33-L/LE2-7AA/y

  • SSCP® v1 protocol

    ARC-W32-L/LE2-5AA/y

• RS232
  • Secure Private ID and/or CSN serial number

    ARC-R32-L/LE2-5AB/y

• RS485
  • Secure Private ID and/or CSN serial number

    ARC-R33-L/LE2-7AB/y
