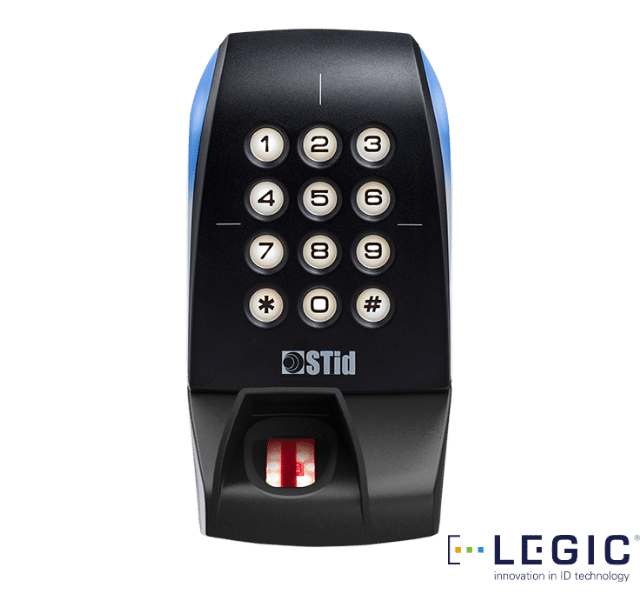

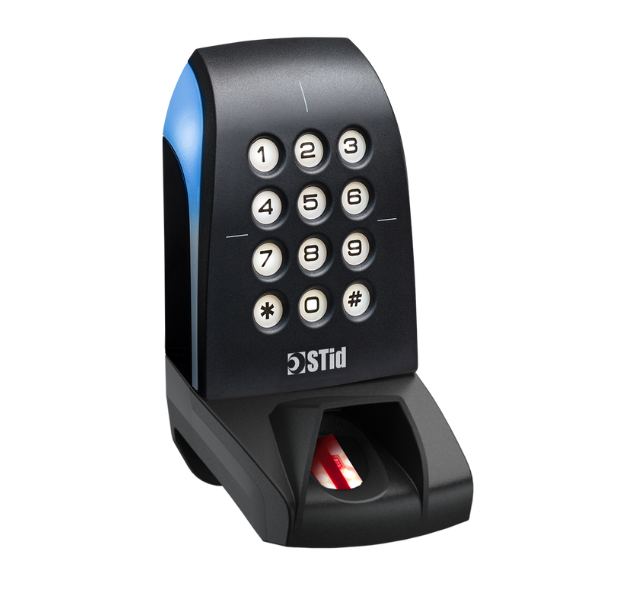

STid Architect® LEGIC® Keypad & Biometrics

Ultimate Self-Protection
The patented tamper protection system protects sensitive data and gives the possibility to delete the authentication keys. Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Effortless Fingerprint Control
The biometric reader offers a different options to suit your needs:
• Fingerprint templates stored on the RFID card, ensuring compliance with CNIL French and GDPR European legislation.
• Templates stored within the system.
• Biometric exemption with card-only mode, ideal for one-time visitors or individuals with challenging fingerprints.

Welcome to High Security
The reader Architect® uses the latest LEGIC® Advant contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (AES, RSA, SHA, etc.), which are recommended by official data security agencies.

Strong Multi-Factor Authentication
The reader combines the reading of a secure LEGIC® Advant credential with fingerprint identification and PIN entry to enhance security levels.
Fingerprints are converted into a template, meaning no image is ever saved. Templates stored on the card or server are then also encrypted and signed to guarantee the confidentiality, the origin and the integrity of the data.

• custom

  Black

  White

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

• technologies

  13.56 MHz LEGIC®

• Frequency

  13.56 MHz

• Standard

  ISO14443 type A, ISO15693, LEGIC® RF

• 13.56 MHz Credentials

  LEGIC® Advant & Prime

• Keypad

  Reader_KeypadKeyTouchCardThenKey

• Reader_Antenna

  Reader_Antenna_Keypad

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64 bits or custom

• Clock & Data

  Clock&Data 32 bits, 40 bits or custom

• RS232

  RS232 output

• RS485

  RS485 output

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface

• Configurations

  Configuration by software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -10°C / +50°Cn14°F / +122°F

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), RoHS

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• Current Draw

  310 mA/12 VDC max

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%

• Range

  0 – 6 cm / 0 – 2.4 in with a LEGIC® Advant card

• Connections

  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal

• Dimensions & Weight

  149 x 80 x 71 mm / 5.63 x 3.15 x 2.80 in (general tolerance following ISO NFT 58-000 standard)

• RS485
  • Secure Private ID

    ARC-R33-P/LE2-7AB/y

• SSCP Protocols
  • SSCP® v1 protocol

    ARC-W33-P/LE2-7AA/y

  • SSCP® v1 protocol

    ARC-W32-P/LE2-5AA/y

• TTL (Wiegand / Clock&Data)
  • Secure Private ID

    ARC-R31-P/LE2-xx/y

• RS232
  • Secure Private ID

    ARC-R32-P/LE2-5AB/y
