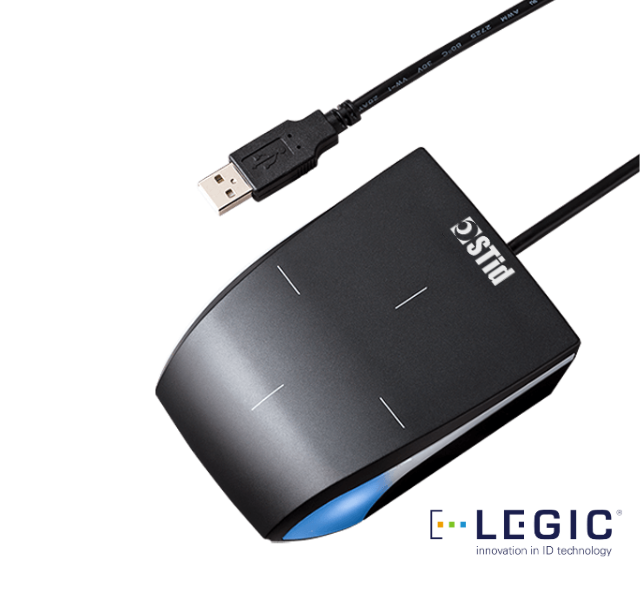

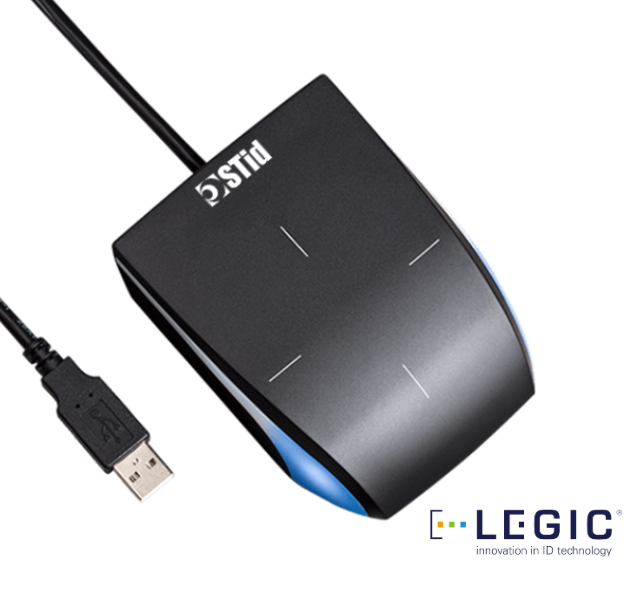

STid Architect® LEGIC® Desktop

13.56 MHz LEGIC® Desktop Reader & Card Encoder

The Architect® LEGIC® Advant desktop reader is well suited for all your high security desktop and identification applications. By implementing the best STid security levels, this reader ensures confidentiality and integrity of all the communications.

Category: Brand:
SKU:
Share:

Key features

User-Friendly and Compact Design
With its ergonomic and compact form factor, the reader is perfect for desk, counter or printer installations. It features LED indicators and an optional buzzer to provide clear feedback during operations, enhancing the user experience for both administrators and end users.

Standing the Test of Time
The desktop reader stands out as the most robust solution in its category, featuring an IK10-certified vandal-resistant structure designed to withstand severe impacts and tampering. Engineered for resilience, it operates reliably under challenging conditions, including exposure to vibrations, dust, water, and oils, ensuring consistent performance in demanding environments.

Advanced Security Features
The reader Architect® uses the latest LEGIC® Advant contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (AES, RSA, SHA, etc.), which are recommended by official data security agencies.

Technical Data

  • protocols

    SSCP®

  • technologies

    13.56 MHz LEGIC®

  • Frequency

    13.56 MHz

  • Standard

    ISO14443 type A, ISO15693, LEGIC® RF

  • 13.56 MHz Credentials

    LEGIC® Advant & Prime | CSN of the chips: MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, PicoPass®, iCLASS™, ICODE SLI, Inside chips

  • Keypad

    Reader_KeypadUndefined

  • Reader_Antenna

    Reader_Antenna_0

  • Light Indicator

    2 RGB LEDs – 360 colors

  • Configurations

    Configuration by RFID card, software, or controlled by external command (0V) depending on the interface

  • Operating Temperature

    -20°C / +70°Cn-4°F / +158°F

  • Robustness

    IK10 Certified

  • Mounting

    Non-slip pads

  • Certifications

    CE (Europe), RoHS

  • Connections

    1.5 m / 5 ft USB cable

  • Dimensions & Weight

    107 x 80 x 26 mm / 4.2 x 3.1 x 1 in (general tolerance following ISO NFT 58-000 standard)

  • Resistance

    IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%

  • Housing Materials & Color

    ABS-PC UL-V0 (black)

  • Range

    0 – 6 cm / 0 – 2.4 in with a LEGIC® Advant card

Part Numbers

  • SSCP Protocols
    • SSCP® v1 protocol

      ARC-W35-L/LE2-5AA/y

  • USB
    • Secure Private ID and/or CSN serial number

      ARC-R35-L/LE2-5AB/y
