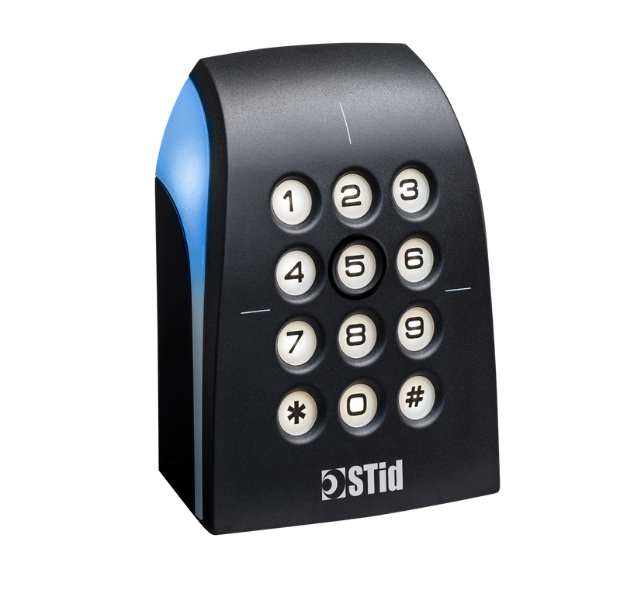

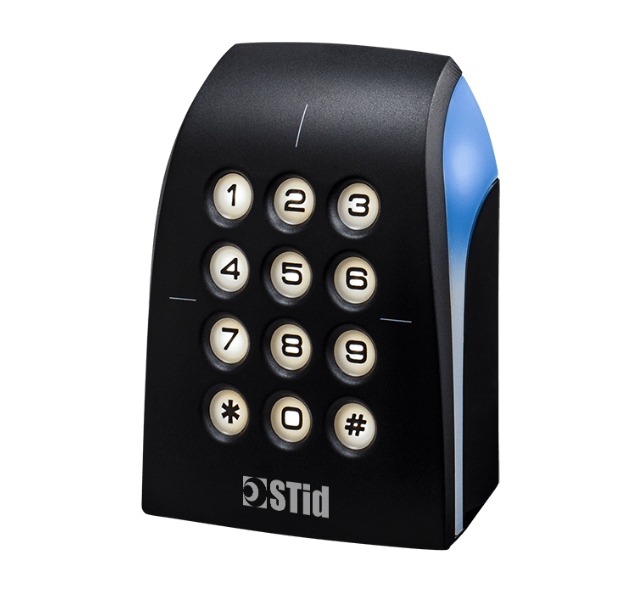

STid Architect® Keypad

Multi-Functional Keypad
The keypad can be used for identification or to activate additional functions (alarm…). The same reader can also operate in multiple mode. It authorizes, for example, the reading of cards for personnel or the entry of codes for visitors or temporary workers.

Highly Versatile
The reader supports 13.56 MHz DESFire® EV3, Near Field Communication (NFC) capability and features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

Two-Factor Authentication
The reader combines the reading of a credential with the input of a personal keypad code to improve the security levels.

Unmatched Durability in Rugged Conditions
The keypad reader offers IK08-certified vandal-proof and IP65-level design ideal for outdoor mounts in harsh environments

• custom

  Black

  White

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

• Frequency

  13.56 MHz

• Standard

  ISO14443 types A & B, ISO18092

• 13.56 MHz Credentials

  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)

• Virtual Credential Compatibility

  STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes

• Keypad

  Reader_KeypadSensitiveCardAndKey

• Reader_Antenna

  Reader_Antenna_Keypad

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication

• Clock & Data

  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom

• RS232

  RS232 output

• RS485

  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)

• SSCP Protocol

  RS485 and RS232 outputs – Controlled by SSCP® v1 & v2 secure communication protocols

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface

• Configurations

  Configuration by RFID card, software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -30°C / +70°Cn-22°F / +158°F

• Robustness

  IK08 Certified

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS

• Current Draw

  160 mA/12 VDC max

• Connections

  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal

• Dimensions & Weight

  107 x 80 x 26 mm / 4.2 x 3.1 x 1 in (general tolerance following ISO NFT 58-000 standard)

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• Range

  0 – 6 cm / 0 – 2.4 in with a MIFARE® DESFire® EV3 card

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%

• RS232
  • Secure Private ID and/or CSN serial number

    ARC-R32-B/PH5-5AB/y

• RS485
  • Secure Private ID and/or CSN serial number

    ARC-R33-B/PH5-7AB/y

  • Secure Private ID and/or CSN serial number + Secure communication

    ARC-S33-B/PH5-7AB/y

  • Secure Private ID and/or CSN serial number compatible with EasySecure interface

    ARC-R33-B/PH5-7AA/y

  • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface

    ARC-S33-B/PH5-7AA/y

  • Secure Private ID and/or CSN serial number compatible with EasyRemote interface (transparent)

    ARC-R33-B/PH5-7BB/y

• OSDP Protocols
  • CSN serial number

    ARC-W33-B/103-7OS/y

  • Secure Private ID and/or CSN serial number

    ARC-W33-B/PH5-7OS/y

• TTL (Wiegand / Clock&Data)
  • CSN serial number

    ARC-R31-B/103-xx/y

  • Secure Private ID and/or CSN serial number

    ARC-R31-B/PH5-xx/y

  • Secure Private ID and/or CSN serial number + Secure communication

    ARC-S31-B/PH5-xx/y

• SSCP Protocols
  • SSCP® v1 protocol

    ARC-W33-B/PH5-7AA/y

  • SSCP® v2 protocol

    ARC-W33-B/PH5-7AD/y

  • SSCP® v1 protocol

    ARC-W32-B/PH5-5AA/y
