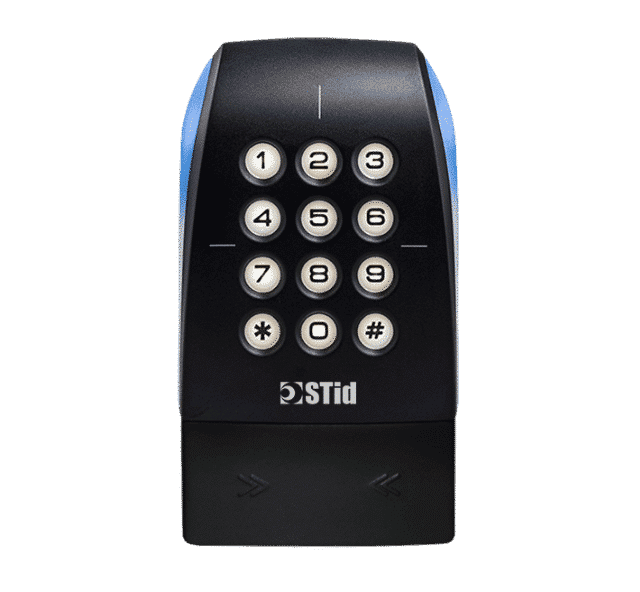

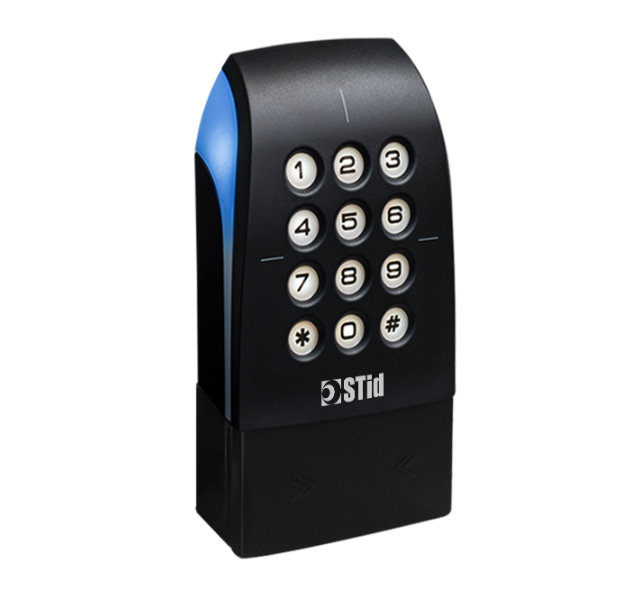

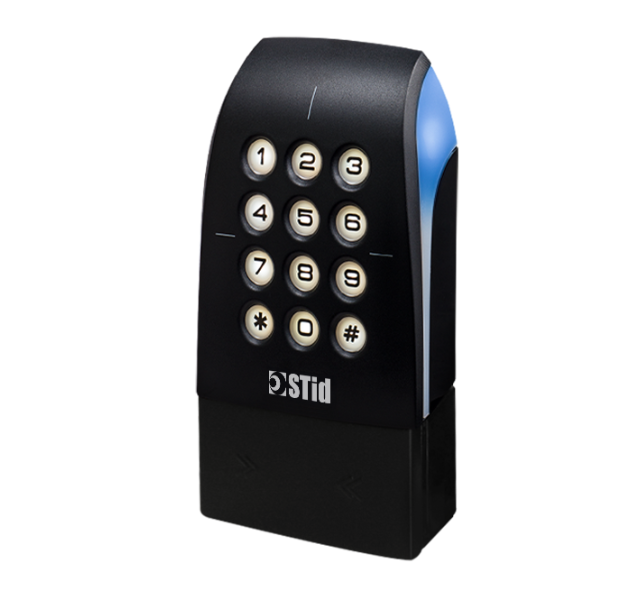

STid Architect® Hybrid Multi-Prox & Keypad

Two-Factor Authentication
The reader combines the reading of a credential with the input of a personal keypad code to improve the security levels.

Multi-Functional Keypad
The keypad can be used for identification or to activate additional functions (alarm…). The same reader can also operate in multiple mode. It authorizes, for example, the reading of cards for personnel or the entry of codes for visitors or temporary workers.

Highly Versatile
The reader ensures a gradual transition to advanced security levels. It supports the widest range of contactless identification technologies – legacy 125 kHz technologies (HID Proximity®, AWID®, INDALA®, IOPROX®, EM®) and 13.56 MHz MIFARE® DESFire® EV3. It also features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

Customized Scalable Configuration
The scalability allows you to remove the 125 kHz module once your technology migration is completed and / or to implement new functionality such as a touchscreen or biometric module.

• custom

  Black

  White

  Test lighting effect opting for a color

• protocols

  Wiegand

  OSDP™

• technologies

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

  125 kHz

• Frequency

  13.56 MHz + 125 kHz

• Standard

  ISO14443 types A & B, ISO18092

• 13.56 MHz Credentials

  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)

• 125 kHz Credentials

  HID Proximity®, INDALA®, IOPROX®, AWID®, EM®

• Virtual Credential Compatibility

  STid Mobile ID® NFC cards & Apple Wallet™ Access NFC (ECP2) passes

• Keypad

  Reader_KeypadKeyTouchCardAndKey

• Touchscreen

  Color Touchscreen | TFT LCD (Thin-Film-Transistor Liquid-Crystal Display) | 2.8” – 240 x 320 pixels | Features – Display of texts, images, and on-screen keypad | OSDP™: 4 customizable function buttons with text

• Reader_Antenna

  Reader_Antenna_Touchscreen

• Wiegand Interface

  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom

• Light Indicator

  2 RGB LEDs – 360 colors

• Tamper Detection

  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

• Inputs/Outputs

  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or OSDP™ command according to the interface

• Configurations

  Configuration by RFID card, software, or controlled by external command (0V) depending on the interface

• Operating Voltage

  7 – 28 VDC

• Operating Temperature

  -20°C / +70°Cn-4°F / +158°F

• Mounting

  Wall-mounted

• Certifications

  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS

• Current Draw

  240 mA/12 VDC max

• Resistance

  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%

• Range

  0 – 4 cm / 0 – 1.6 in with a MIFARE® DESFire® EV3 card
  0 – 6 cm / 0 – 2.4 in with a 125 kHz card

• Connections

  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal

• Dimensions & Weight

  156 x 80 x 30 mm / 6.14 x 3.15 x 1.2 in (general tolerance following ISO NFT 58-000 standard)

• Housing Materials & Color

  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)

• OSDP Protocols
  • Secure Private ID and/or CSN serial number

    ARC-WX3-KM/BF5-7OS/y

• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number – Wiegand

    ARC-RX1-KM/BF5-3x/y
