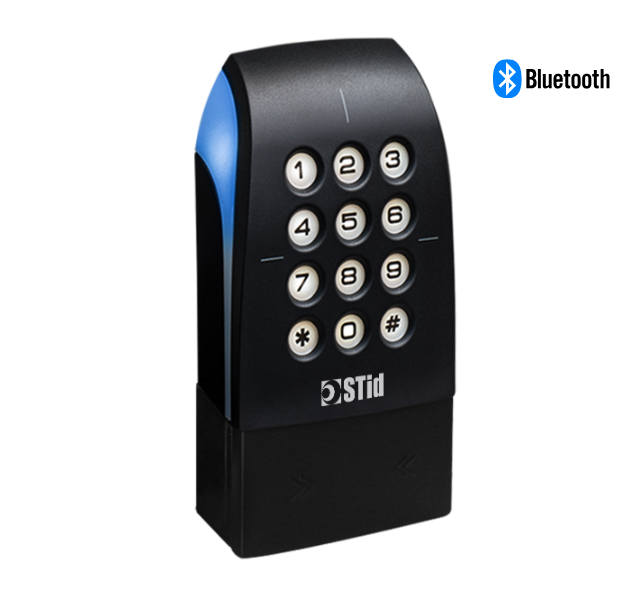

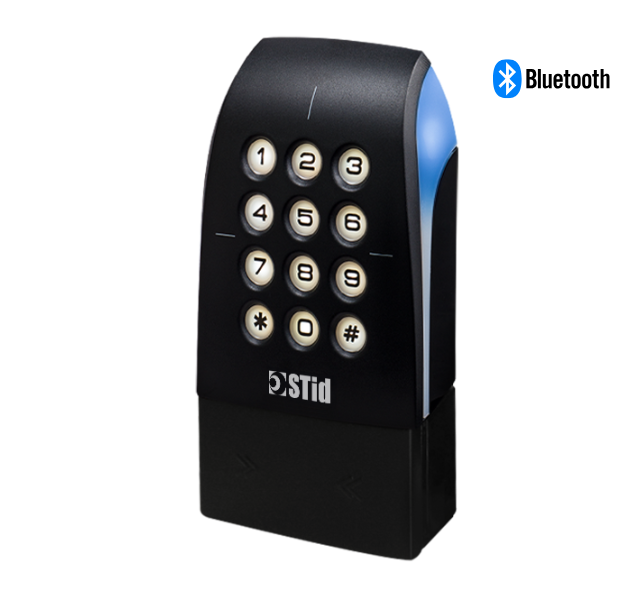

STid Architect® Blue Hybrid & Keypad

Highly Versatile
The reader ensures a gradual transition to advanced security levels. It supports the widest range of contactless identification technologies – legacy 125 kHz technologies (EM®, NEDAP®, CROSSPOINT®), 13.56 MHz MIFARE® DESFire® EV3 and STid Mobile ID® Bluetooth® and NFC virtual cards. It also features Apple’s Enhanced Contactless Polling (ECP) to store credentials in the Apple Wallet.

Intuitive Identification, Better User Experience
The reader supports STid Mobile ID® user-friendly solution and offers five unique user interaction modes for intuitive contactless identification:
• Card mode: present your smartphone or wearable to the reader like a conventional access card.
• Tap Tap mode: tap tap the smartphone in your pocket to gain access.
• Remote mode: use the “remote button” to conveniently access car parks or other vehicle entrances.
• Hands-free mode: simply walk towards the reader without any further action.
• Voice command: use SIRI voice command on your iPhone (iOS) or Apple Watch.

Multi-Functional Keypad
The keypad can be used for identification or to activate additional functions (alarm…). The same reader can also operate in multiple mode. It authorizes, for example, the reading of cards for personnel or the entry of codes for visitors or temporary workers.

Two-Factor Authentication
The reader combines the reading of a credential with the input of a personal keypad code to improve the security levels.

• custom

  Black

  White

  Test lighting effect opting for a color

  Test your own brand adding your logo

  Monochrome or Quadri ?

• protocols

  Wiegand

  SSCP®

  OSDP™

• technologies

  Bluetooth®

  Apple Wallet™

  13.56 MHz MIFARE® DESFire® EV3

  125 kHz

• Frequency
  13.56 MHz + 2.4 GHz Bluetooth® + 125 kHz
• Standard
  ISO14443 types A & B, ISO18092, Bluetooth®
• 13.56 MHz Credentials
  MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass®, iCLASS™ (CSN ISO14443A only)
• Virtual Credential Compatibility
  STid Mobile ID® NFC & Bluetooth® cards, Apple Wallet™ Access NFC (ECP2) passes
• Keypad
  Reader_KeypadSensitiveCardAndKey
• Reader_Antenna
  Reader_Antenna_Keypad
• Wiegand Interface
  Wiegand 26, 32, 34, 35, 36, 37, 38, 40, 44, 64, 72 bits or custom | Optional encrypted communication
• Clock & Data
  Clock&Data 32 bits, 32 bits Crosspoint, 40 bits or custom
• RS485
  RS485 output | Encrypted communication available as an option | With or without EasySecure interface (encrypted communication)
• SSCP Protocol
  RS485 output – Controlled by SSCP® v1 & v2 secure communication protocols
• Light Indicator
  2 RGB LEDs – 360 colors
• Data Protection
  EAL 5+ Certified Secure Element Hardware for secure key storage.
• Tamper Detection
  Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
• Inputs/Outputs
  Solid State Relay | Output Voltage: 60V – Output Current: 0.2A – Typical Resistance: 1Ω for AC/DC | Automatic tamper detection management or SSCP® command according to the interface
• Operating Voltage
  7 – 28 VDC
• Operating Temperature
  -30°C / +70°Cn-22°F / +158°F
• Robustness
  IK08 Certified
• Mounting
  Wall-mounted
• Certifications
  CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS / WPC (India), RCM (Australia & New Zealand), ANRT (Morocco), UL, RoHS
• Current Draw
  190 mA/12 VDC max
• Housing Materials & Color
  ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
• Dimensions & Weight
  146 x 80 x 26 mm / 5.7 x 3.15 x 0.98 in (general tolerance following ISO NFT 58-000 standard)
• Connections
  10-pin plug-in connector (5 mm / 0.2 in)
  2-pin plug-in connector (5 mm / 0.2 in): O/C contact – Tamper detection signal
• Resistance
  IP65 Level (excluding connectors) / Weather-resistant with dust and water-proof electronics (CEI NF EN 61086 homologation) / Humidity: 0 – 95%
• Range
  0 – 6 cm / 0 – 2.4 in with a MIFARE® DESFire® EV3 card
  0 – 20 m / 0 – 66 ft with a Bluetooth® virtual card
  0 – 6 cm / 0 – 2.4 in with a 125 kHz card

• TTL (Wiegand / Clock&Data)
  • Secure Private ID and/or CSN serial number
    ARCS-RX1-J/BT2-xx/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARCS-SX1-J/BT2-xx/y
• OSDP Protocols
  • Secure Private ID and/or CSN serial number
    ARCS-WX3-J/BT2-7OS/y
• RS485
  • Secure Private ID and/or CSN serial number
    ARCS-RX3-J/BT2-7AB/y
  • Secure Private ID and/or CSN serial number + Secure communication
    ARCS-SX3-J/BT2-7AB/y
  • Secure Private ID and/or CSN serial number compatible with EasySecure interface
    ARCS-RX3-J/BT2-7AA/y
  • Secure Private ID and/or CSN serial number + Secure communication compatible with EasySecure interface
    ARCS-SX3-J/BT2-7AA/y
• SSCP Protocols
  • SSCP® v1 protocol
    ARCS-WX3-J/BT2-7AA/y
  • SSCP® v2 protocol
    ARCS-WX3-J/BT2-7AD/y
